Vertical lifts for automation in the food and beverage industries

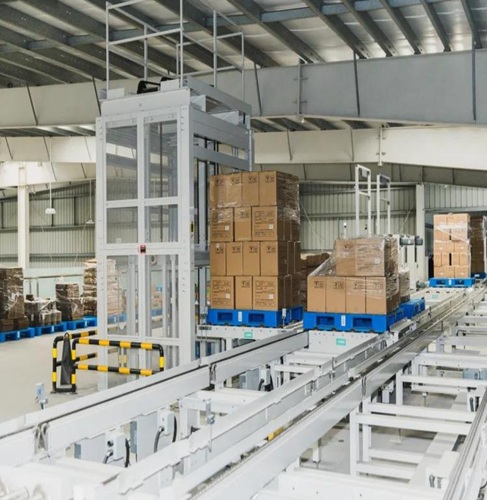

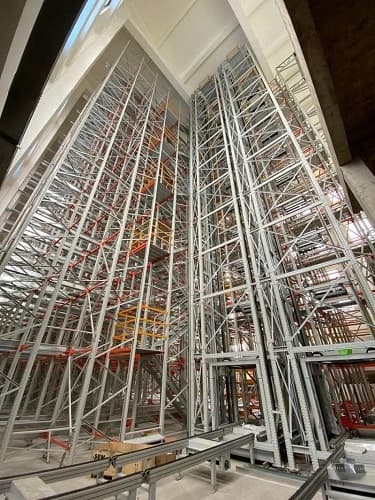

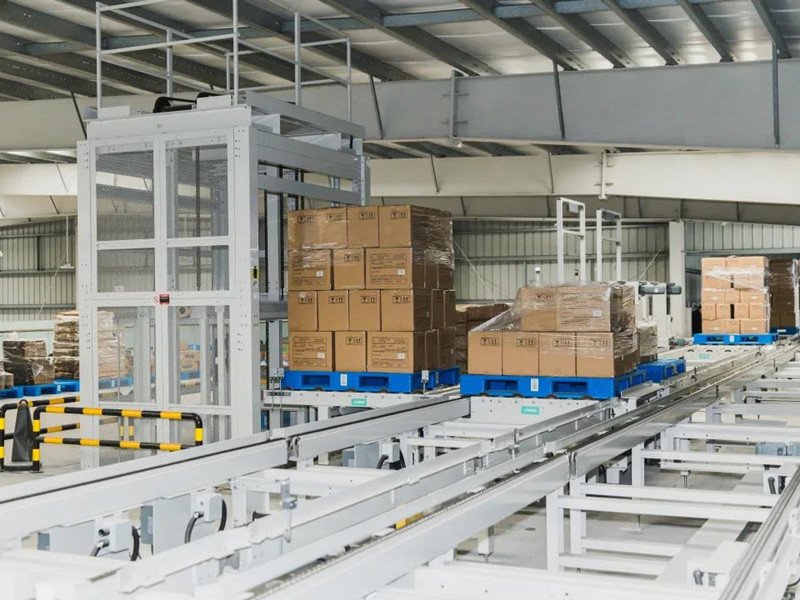

The fixed type pallet elevator / hoist is the key equipment of high density ASRS . It enables pallets to move up and down in the system. HUAYIDE pallet elevator composed of machine body, loading platform, conveyor, steel rope traction power system, counterweight system and PLC control system, and realizes seamless connection with master control system.

Facts:

• Palletized vertical conveyors are widely used in production plant and distribution centers vertical transportation of pallets;

• Adopt gearless permanent magnet synchronous traction machine to move up and down the loading platform;

• The maximum lifting speed can reach 90m/min, and the maximum weight of lifting unit can reach 1500kg;

• A circuit can transport pallets via rollers, chains or a combination of the two mechanized elements. This choice will depend on the type of pallet being moved; The conveyors adjust to any sized pallets;

•The built-in conveyor of the loading platform makes the interface with mother shuttle vehicle and  ground conveying system efficiently and smoothly;

• It operates well in frozen warehouse, explosion-proof, security and other special environment.

Variations:

Today, the construction of more and more distribution centers and production plant has evolved from the previous "floor flat load" mode to the multi-layer and high-level intensive storage, so as to integrate resources more effectively and carry out integrated management.

Excellent automated solution of vertical lift between different floors

HUAYIDE introduces advanced Japanese technology to develop and manufacture high cost-effective vertical conveyor. We adopt standardized frame structure and unique parameter design for key parts. Modular high-performance unit supports rapid assembly and maintenance, which is convenient for flexible layout of the system; The equipment is easy to operate, with only one button, the material carrier can enter and exit the loading platform automatically, realizing the time-saving and efficient transportation to any floor.

It is equipped with electric energy-saving auxiliary system to realize the low power drive of the equipment, making it low energy consumption and more durable. In addition, by equipped with fast safety door, intelligent anomaly detection, mechanical buffer and other humanized and reliable devices, the items in and out of the elevator are more stable and safe while the high-speed operation noise is low. HUAYIDE two series Vertical Elevators cover multiple industries’ need:

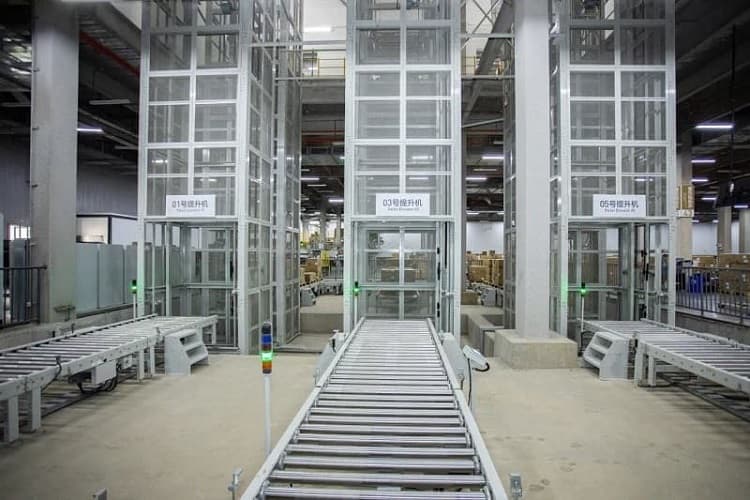

Reciprocating Vertical Elevator

Type	E-type, F-type, L-type
Maximum Loading Weight	2000kg/pallet
Maximum Pallet Size (mm)	W2900 × L2900 × H3200
Maximum Conveying Speed (m/min)	90
Maximum Vertical Conveying Stroke (m)	40
Maximum Throughput (pph)	90 pallets per hour
Applications	It can move up and down multiple levels to serve many floors. Suitable for vertical pallet conveying in high-rise factories, warehouses, and e-commerce centers.

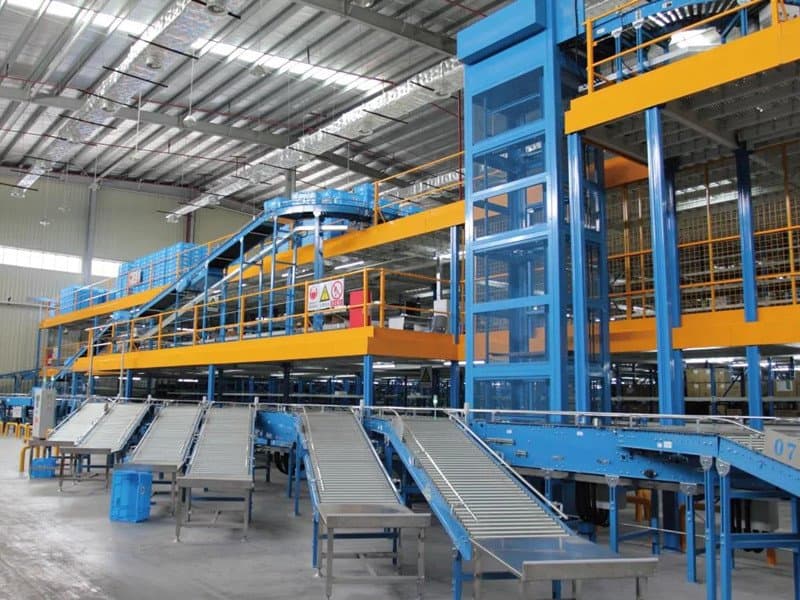

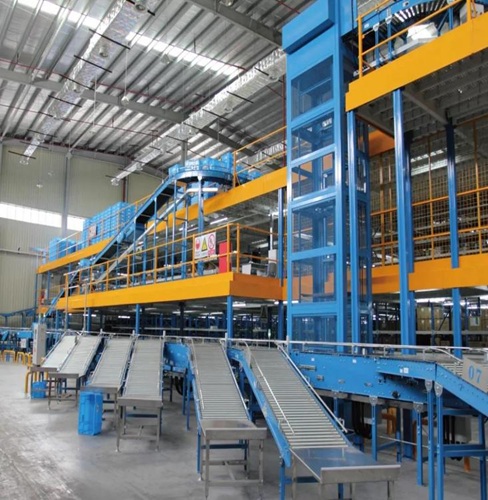

Continuous Vertical Elevator

Type	Z-type, C-type
Maximum Loading Weight	100kg/box
Maximum Pallet Size (mm)	W1200 × L1200 × H1000
Maximum Conveying Speed (m/min)	30
Maximum Vertical Conveying Stroke (m)	20
Maximum Throughput (pph)	1800pcs/h
Applications	Suitable for plastic totes, cartons, trays, small flat bottom bags and other boxes vertical conveying between two designated floors with one end inlet and one end discharge only.

Add-on:

Loading Ramp

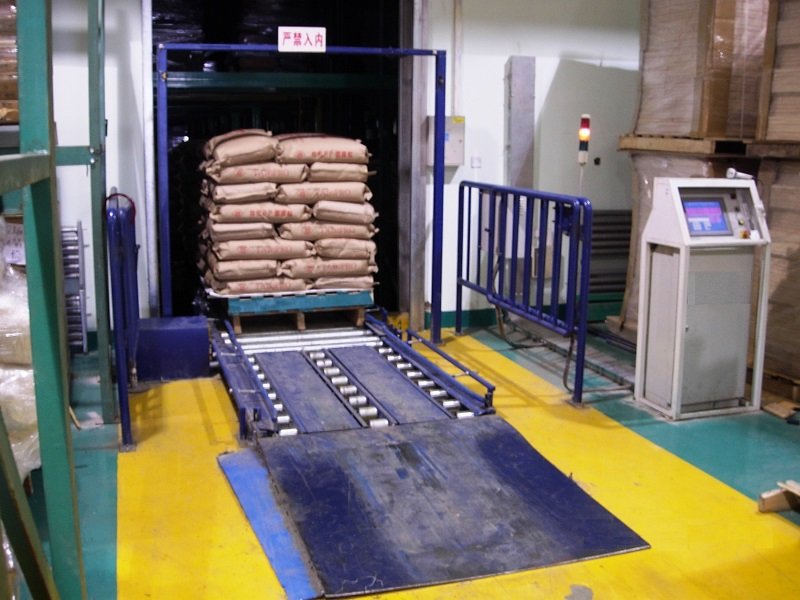

Lifts can be loaded via forklift or AGV/AMR or with pallet trucks via a loading ramp. A fast acting, fully automatic roller shutter door ensures access to the lift shaft is closed off.

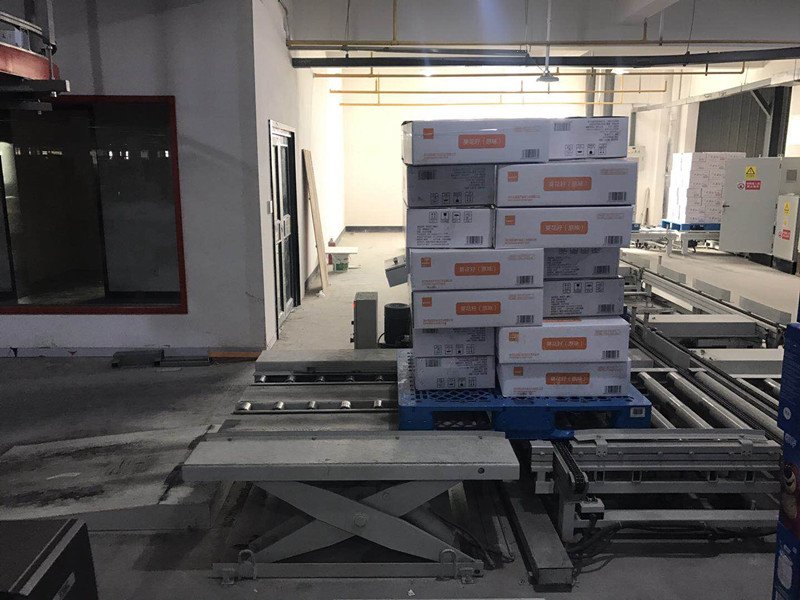

Floor Level Lift Table / Hydraulic Scissor Lift Table



Connect with the ramp to lift pallet from ground floor to conveyor height
