Four Way Shuttle AS/RS

The Four Way Shuttle AS/RS is a high-density automated storage and retrieval system designed for palletized goods.It integrates Four Way Pallet Shuttles, vertical lifts, racking systems and intelligent software to achieve fully automated storage, retrieval and internal transport.Unlike conventional AS/RS, the four way shuttle system allows shuttles to move both longitudinally and laterally on the same level, enabling flexible routing, multi-deep storage and scalable system expansion.

System Structure

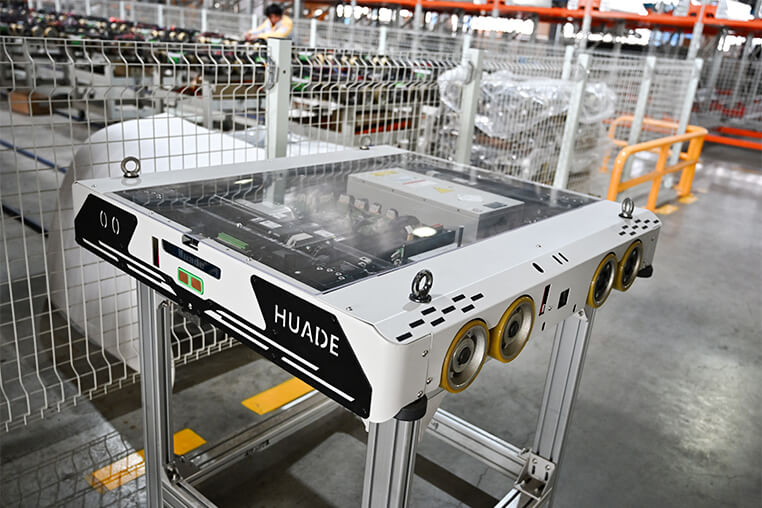

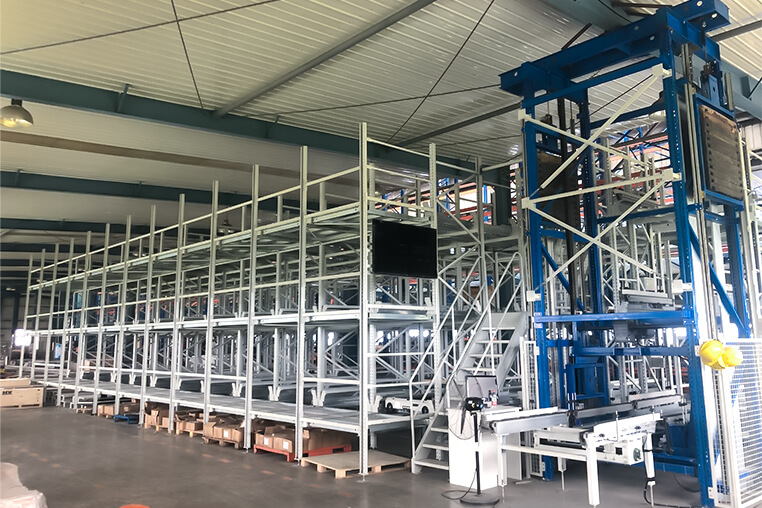

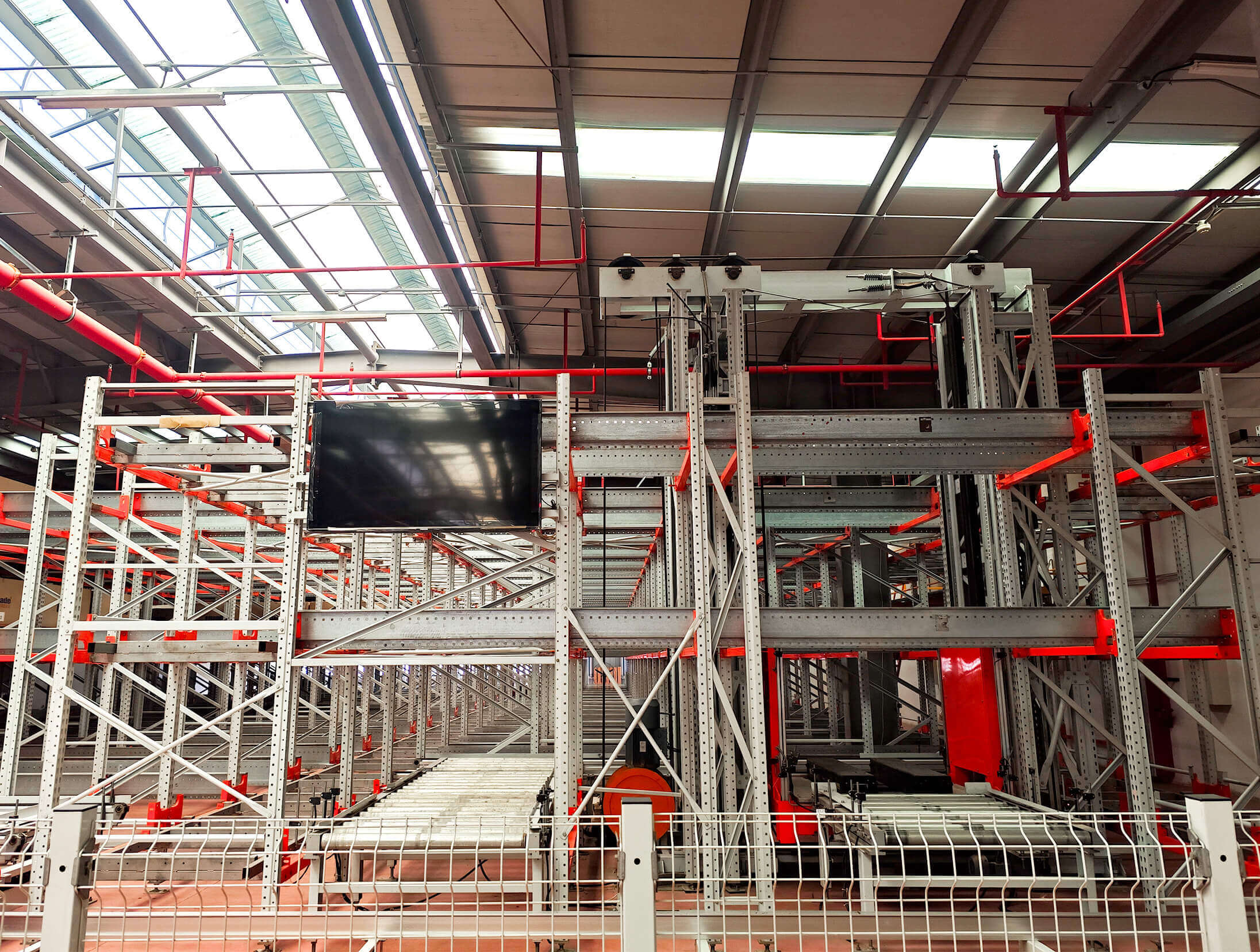

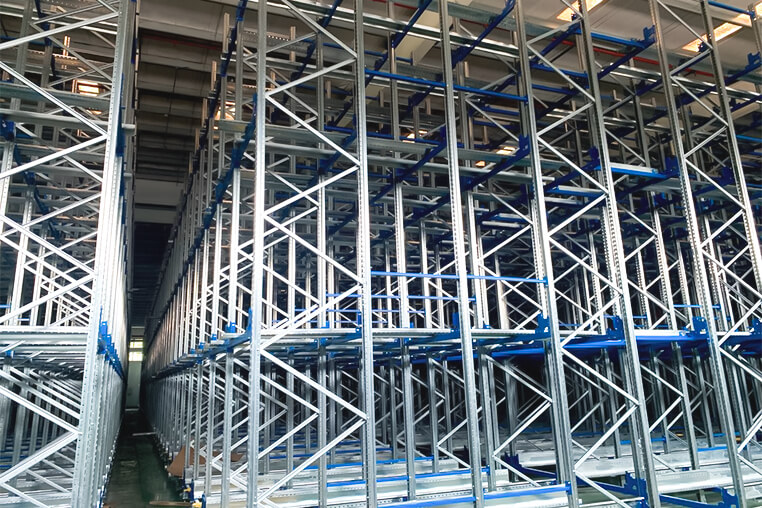

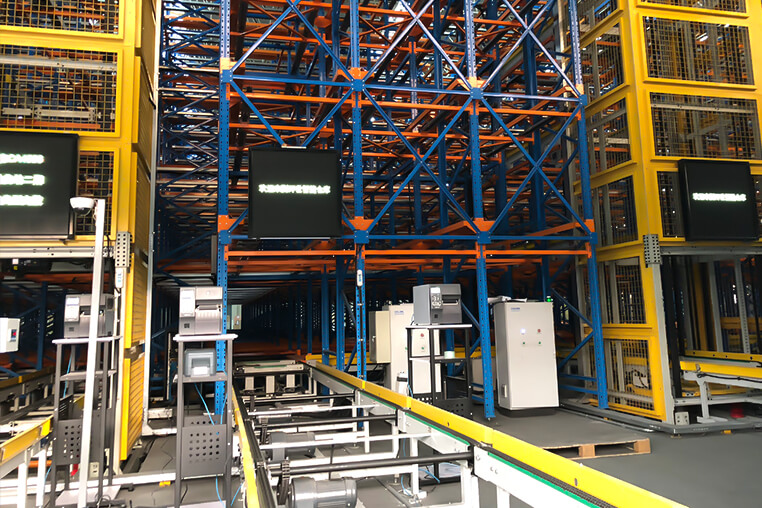

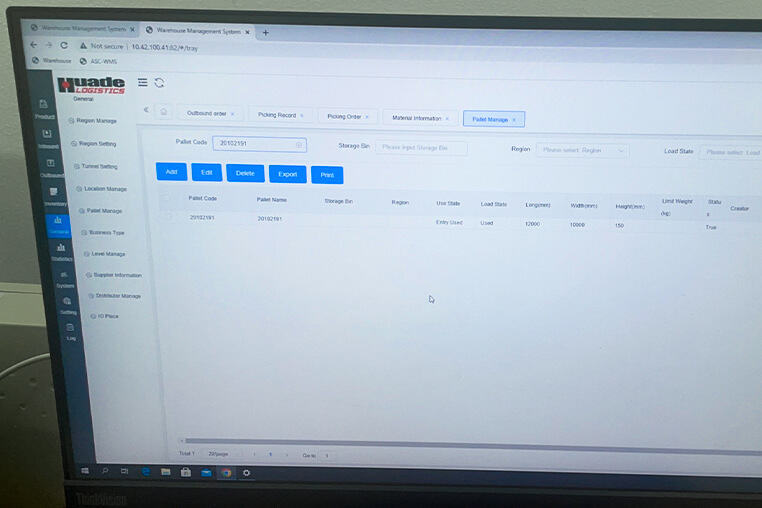

At Huayide, we adhere to the principle of “software defines hardware,” and our self-developed WMS and WCS deliver real-time synchronization with ERP systems, unified management of inventory, orders, labor, and material handling equipment, end-to-end optimization from storage to picking and shipping, visualized zone capacity, destination availability, and equipment status, as well as accurate physical-to-digital inventory consistency.

Functional Advantages

1. Ultra-High Storage Density

• Adopts deep-lane compact storage and multi-level vertical layout.
• System height can exceed 24 meters, fully utilizing vertical warehouse space.
• Narrow aisles and dense racking structure increase storage capacity by up to 300%+ compared with conventional floor storage.
• Especially suitable for land-constrained industrial and logistics zones.

2. Modular & Scalable Design

• Modular system architecture allows easy expansion by adding more shuttle robots or extending racking areas.
• Supports phased investment and gradual system upgrade as business grows.

3. High Throughput Performance

• Multiple shuttle robots operate simultaneously and in parallel.
• Strong system throughput meets the demand for high-frequency inbound and outbound operations.

4. Intelligent Inventory Control

• Advanced algorithms coordinate equipment and optimize storage logic.
• Supports inventory strategies by batch, date, SKU, and pallet ID.
• Fully compatible with deep-lane storage and ensures precise stock visibility.

5. High Reliability

• Failure of a single shuttle does not affect the entire system operation.
• Higher overall reliability than traditional AS/RS with centralized equipment, ensuring continuous warehouse operation.

6. Smart Operating Logic

• Free movement in both longitudinal and transverse directions eliminates route limitations.
• One shuttle can complete the entire storage and retrieval cycle independently.
• Intelligent path planning selects the optimal travel route automatically.
• Supports FIFO (First In, First Out) and FILO (First In, Last Out) strategies.

Technical Specifications

How It Works

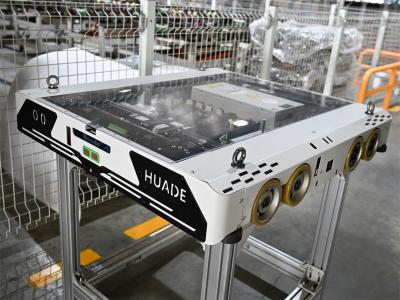

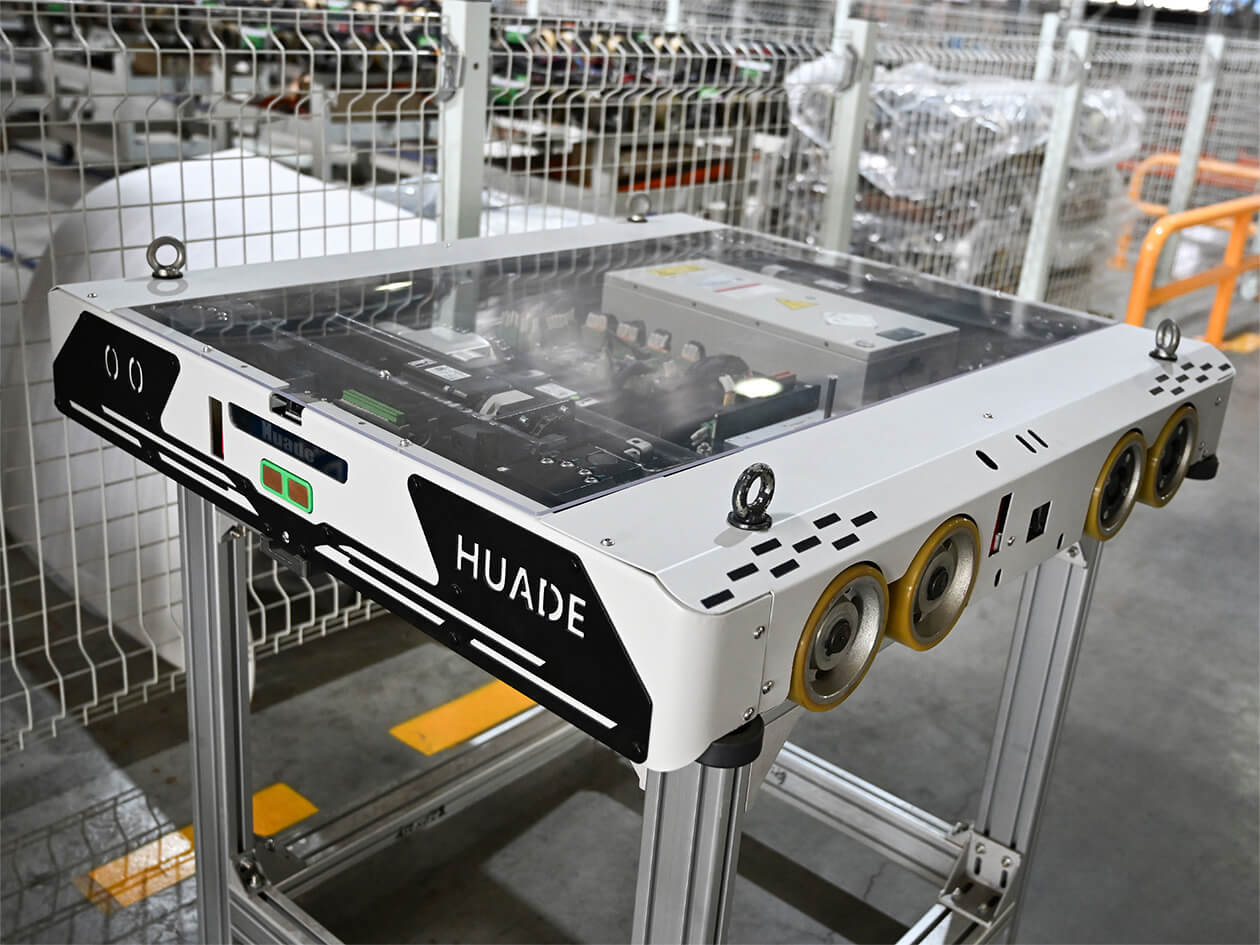

The core of the system is the four way shuttle robot, which can move freely in both directions along the racking rails:

1.Transport

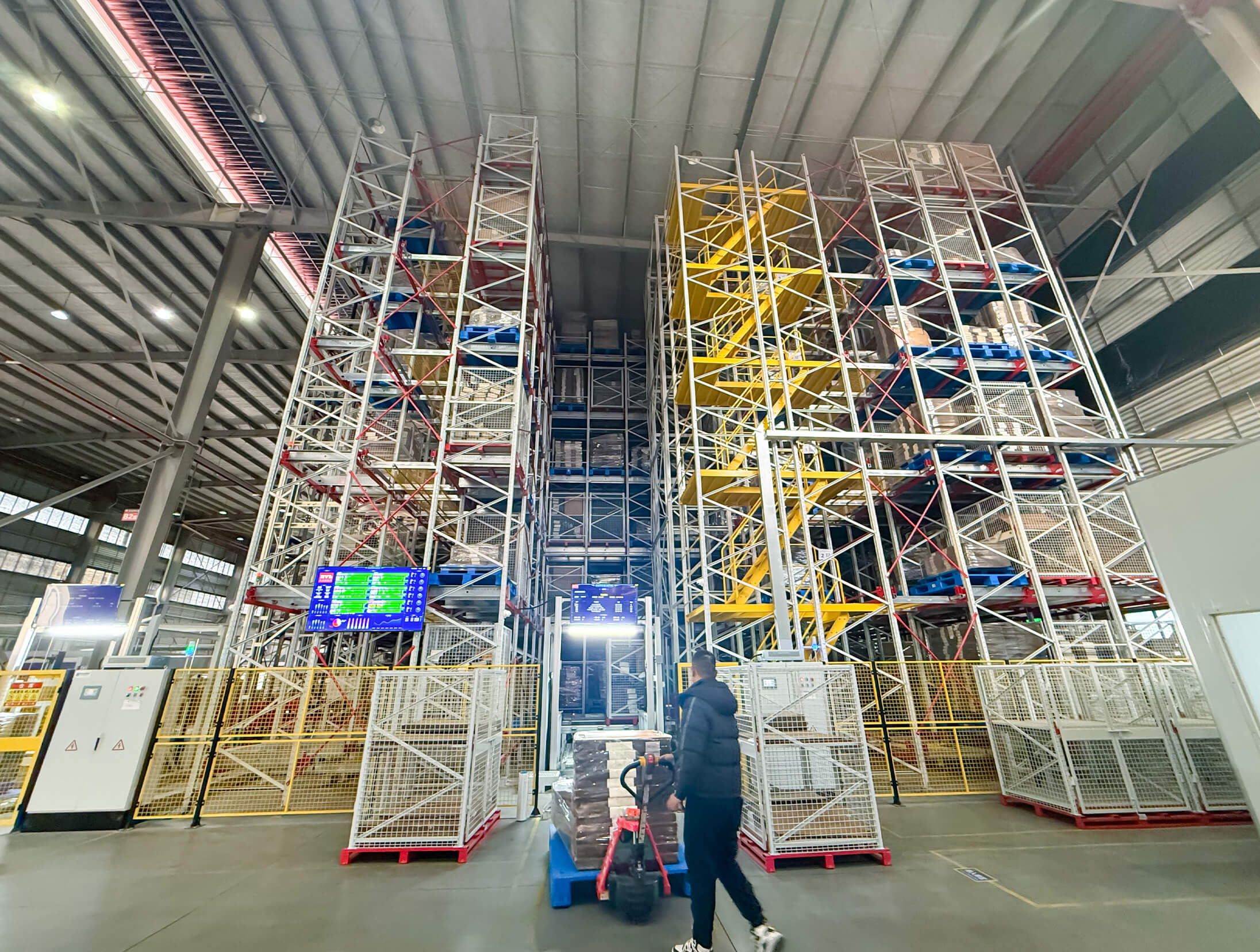

Pallets are delivered to the inbound station by forklift or conveyor.

2.Storage



The lift transfers pallets to the target storage level.

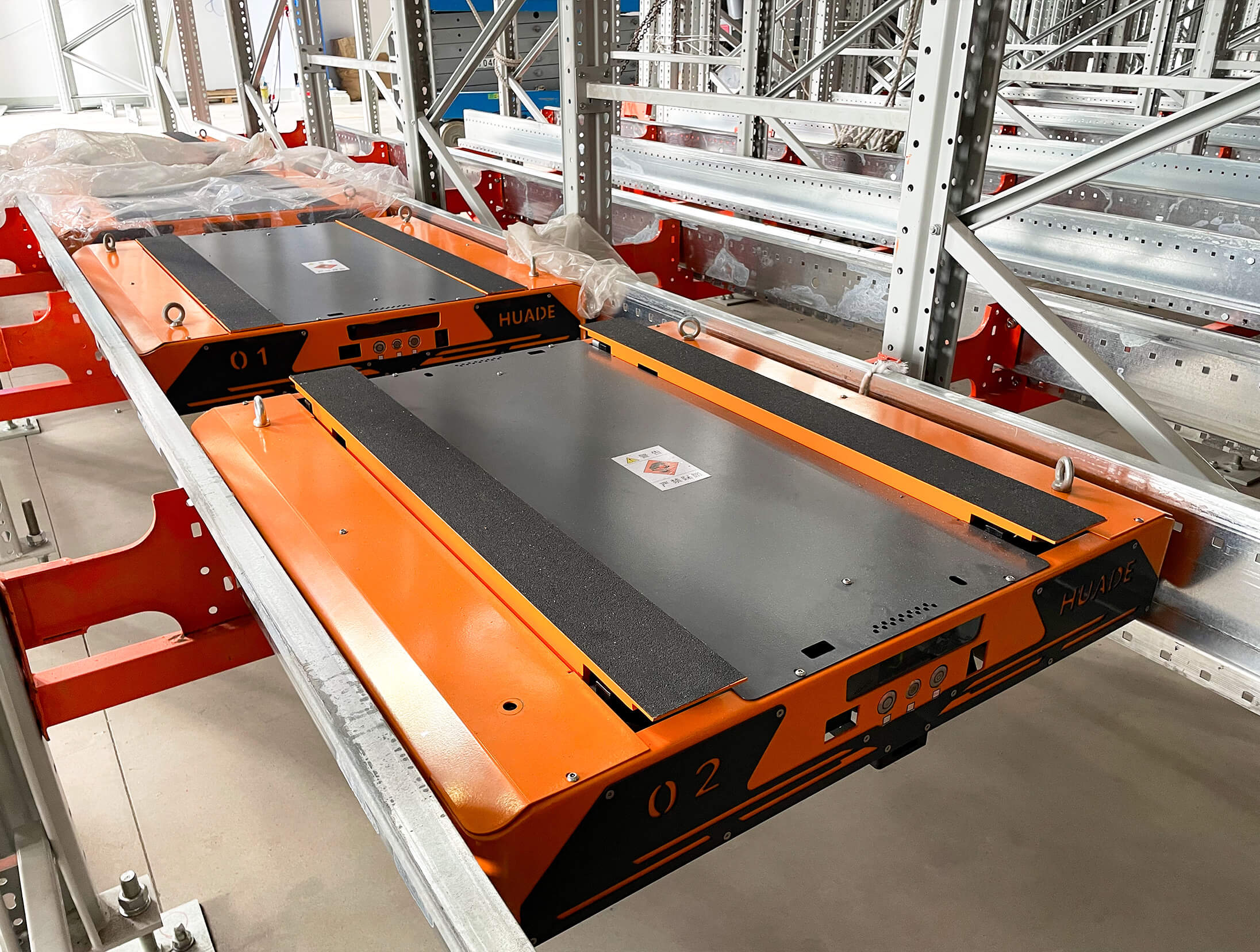

3.Level Transfer



The shuttle robot travels horizontally and vertically (via lift transfer) to store pallets in assigned locations.

4.Retrieval



For outbound operations, the shuttle retrieves pallets and delivers them to the lift, then to the outbound station.





Application Scenarios

---



The Four Way Shuttle ASRS is ideal for:

• Manufacturing Industry – raw materials and finished goods storage
• Bulk Logistics Centers – centralized pallet storage and distribution
• Cold Chain Warehouses – high-density pallet storage in cold rooms
• Third-Party Logistics (3PL) – multi-client, multi-SKU warehouse operations





Why Choose Huayide

---





Huayide R&D Strength



Since 2016, Huayide has focused on the R&D of four way pallet shuttle systems to develop flexible and scalable automated pallet storage solutions. Through continuous upgrades, our shuttle robots have become faster, lighter, and more accurate, forming a stable and proven technology for high-density pallet automation.







Testing & Development Platforms

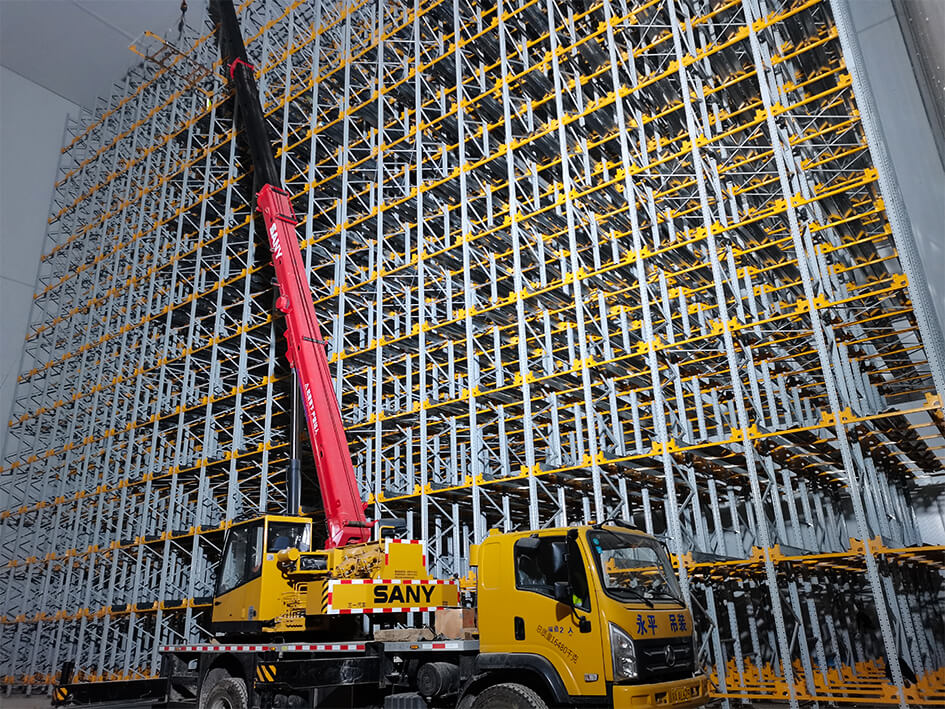

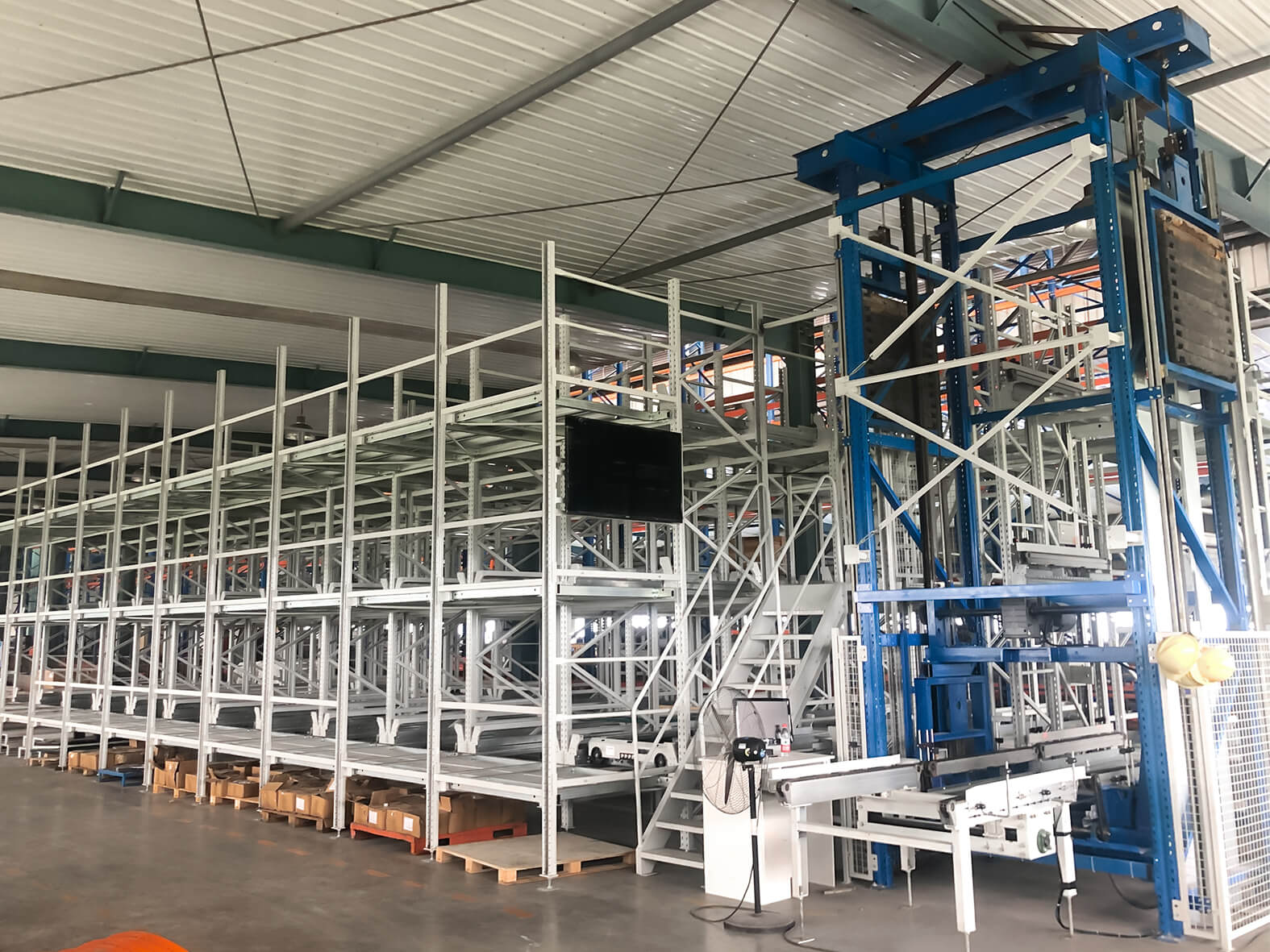

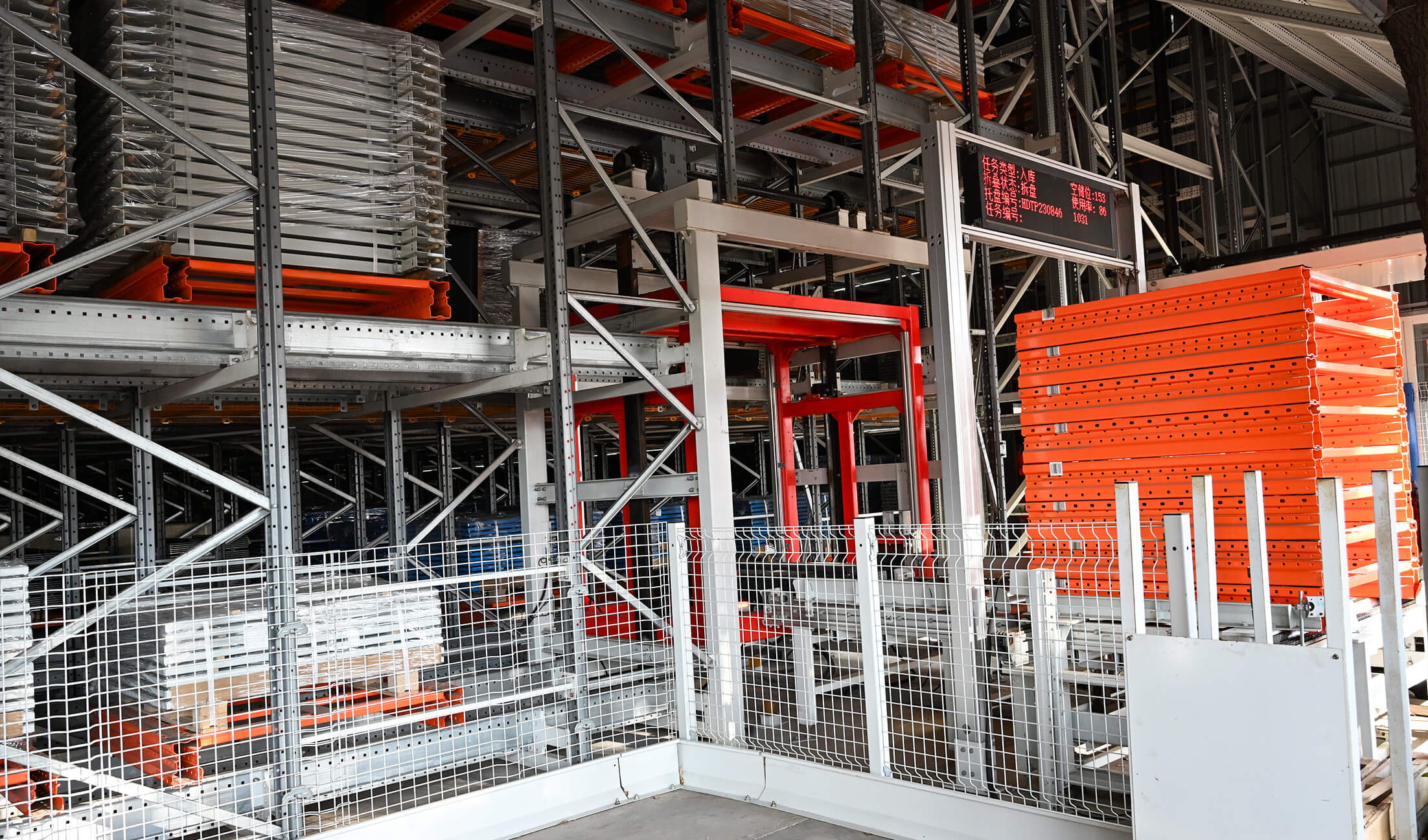

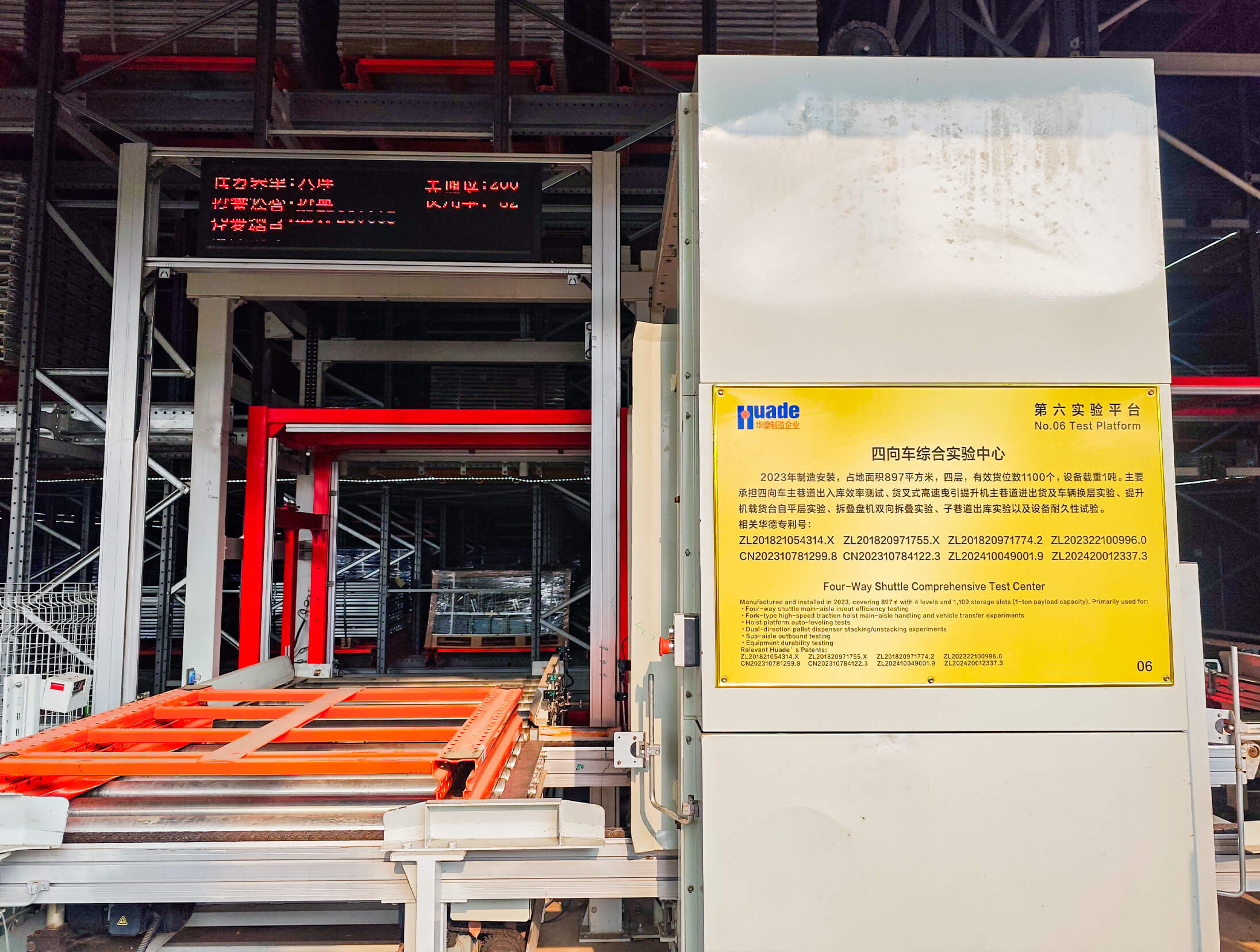

To support innovation, Huayide built a Four Way Shuttle Scheduling Test Center in 2021 and a comprehensive test platform in 2023. These facilities are used for multi-shuttle dispatching, software validation, efficiency testing, and durability trials, ensuring that every Four Way Shuttle ASRS is reliable and ready for industrial operation.





Frequently Asked Questions

---



Is the Four Way Shuttle system suitable for existing warehouses?	Yes. It can be applied to both new-build warehouses and retrofit projects.The modular structure allows flexible layout design according to existing building height, column spacing, and floor conditions.
Can the system be used in existing warehouses?	Yes. The Four Way Shuttle ASRS can be implemented in both new-build and existing warehouses. Its modular design allows it to adapt to different building heights, column spacing, and floor conditions, making it suitable for retrofit projects.
How does the system support FIFO or FILO?	FIFO and FILO strategies are managed by the WMS, which assigns storage locations and retrieval sequences based on product attributes such as batch number and production date, ensuring flexible and accurate inventory flow control.
How is high throughput achieved?	High throughput is achieved through parallel operation of multiple shuttle robots, fast vertical transfer by lifts, and intelligent task scheduling by the WCS, enabling efficient handling of large volumes of pallet movements.
Can the system be expanded later?	Yes. The system is modular and scalable, so future expansion can be achieved by adding shuttle robots, extending racking blocks, or upgrading software functions without major structural changes.
Is the system suitable for cold storage warehouses?	Yes. The Four Way Shuttle ASRS is well suited for cold and frozen storage environments because it minimizes manual labor inside cold rooms while maintaining stable automated operation with components designed for low-temperature conditions.
