Mother Baby Shuttle System

HUAYIDE Mother Child Shuttle Lifter Type High Density Pallet Storage Solution

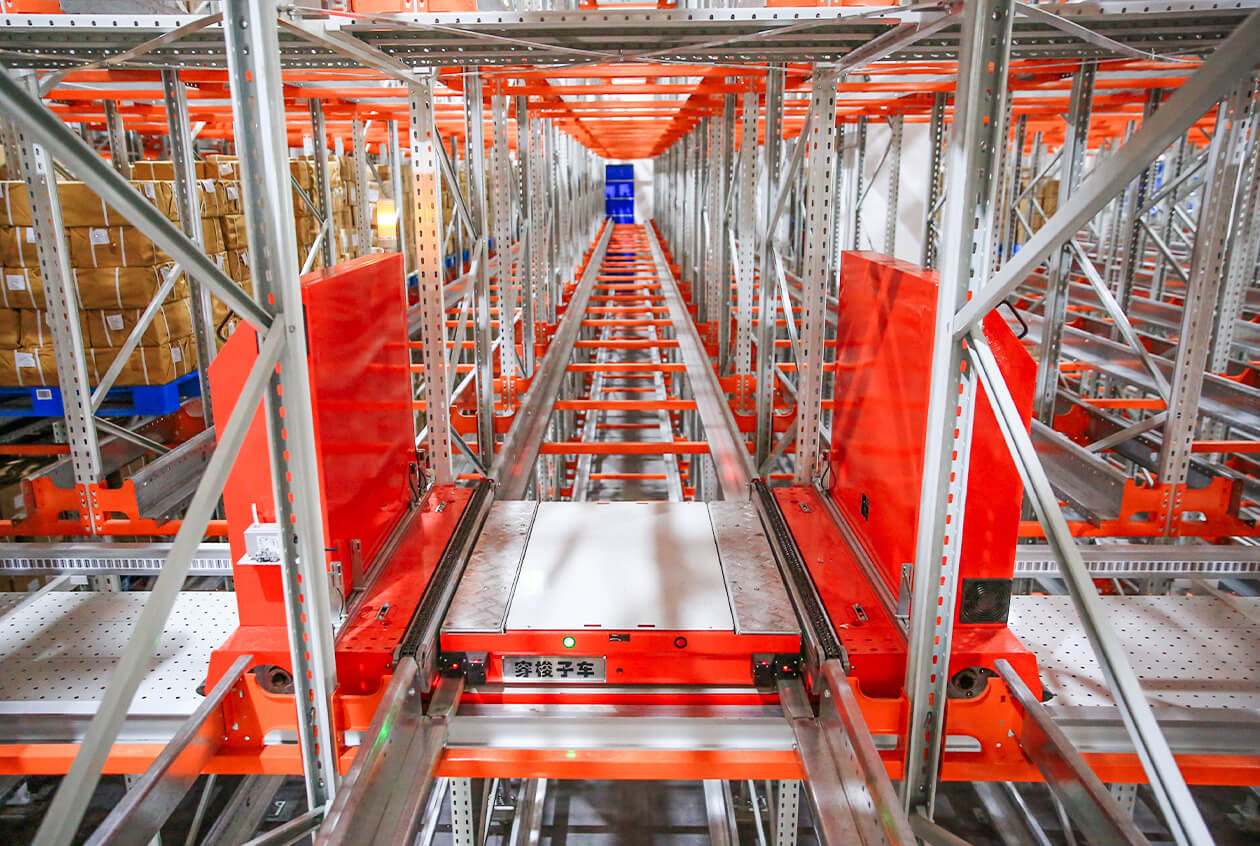

HUAYIDE Mother Child Shuttle Running in Multi-Deep Dense Storage Racking

HUAYIDE Mother-Child Shuttle + Lifter Multi-Deep Dense Storage System is a high-density automated pallet storage solution developed based on decades of HUAYIDE’s engineering experience in automated warehousing.

Designed to overcome low space utilization, high labor dependency, and limited efficiency in traditional warehouses, the system integrates deep-lane racking, cargo lifters, and advanced mother-child shuttle technology to achieve fully automated, unmanned, and high-efficiency pallet handling.

As a proven solution trusted by global clients, it is ideal for high-volume, low-SKU storage applications across food & beverage, chemicals, cold chain, manufacturing, and 3PL industries—delivering maximum storage density, improved operational efficiency, and long-term cost advantages.

ReQUEST A QUOTE

Core Technical Advantages & Industrial Value

Compared with traditional pallet racking and standard shuttle racking, the HUAYIDE Mother Child Shuttle + Lifter Type Multi-Deep Dense Storage system achieves comprehensive upgrades in four dimensions: space, efficiency, cost, and intelligence, with irreplaceable industrial value as the top choice for enterprises building intelligent dense warehouses with HUAYIDE’s professional solutions.

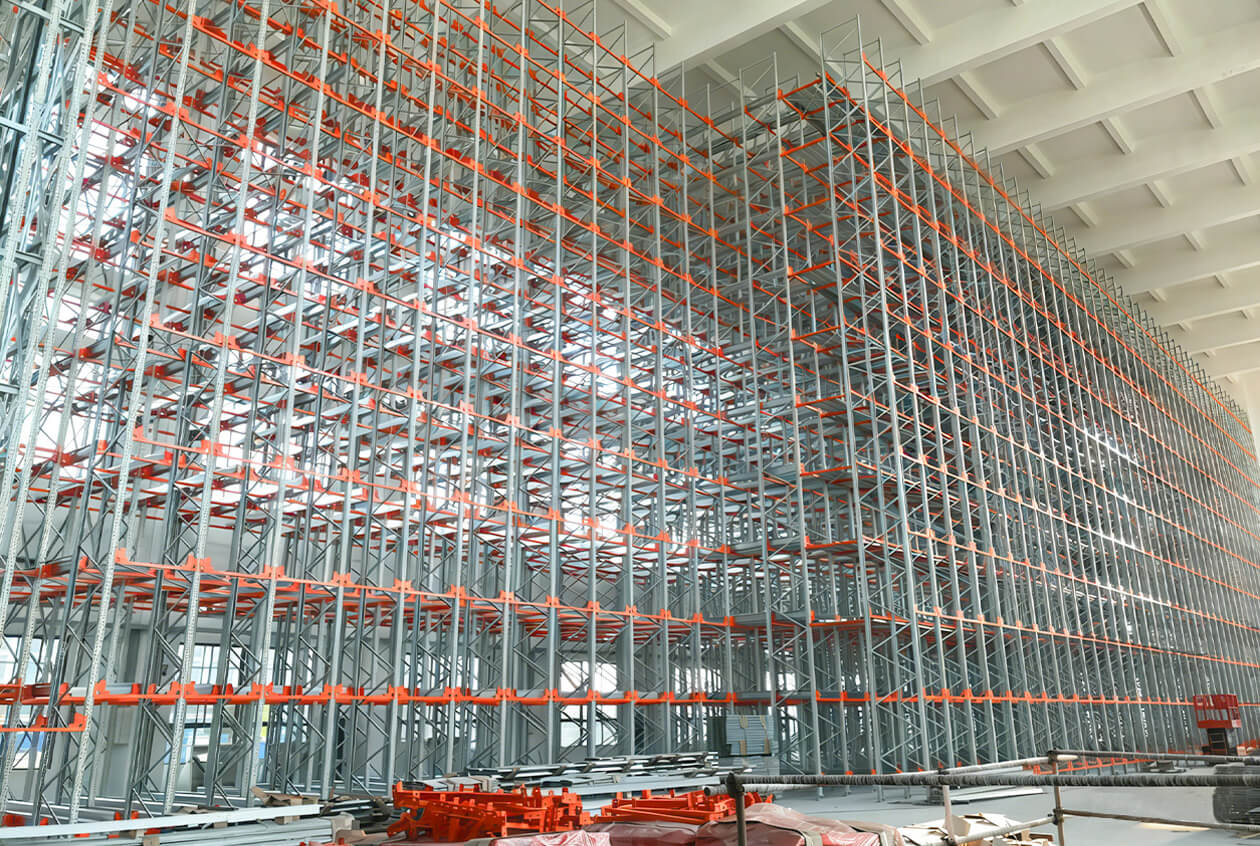

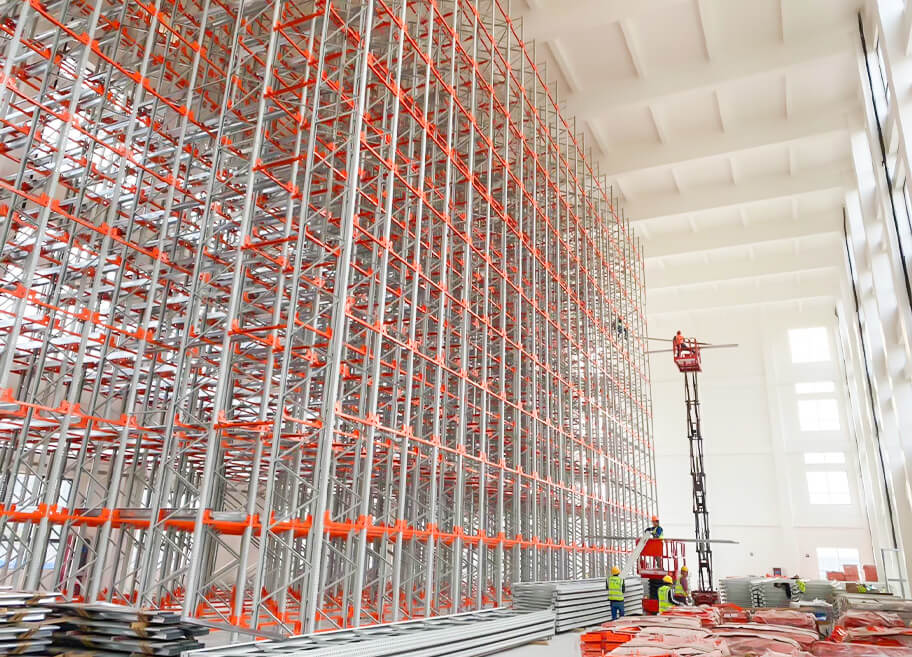

HUAYIDE Mother Child Shuttle Complete Multi-Deep Dense Storage Racking

Maximize Warehouse Space Utilization & Reduce Land Costs

Eliminate Invalid Forklift Space: Unlike traditional warehouses that reserve large areas for forklift aisles and turning zones, this dense storage system removes all forklift-specific channels, only keeping narrow dedicated rails for mother-child shuttles to cut down wasted auxiliary space.

Sharply Boost Storage Efficiency: Paired with multi-level deep-dense racking design, it improves space utilization by 50%-80% versus standard pallet racking, doubling or even multiplying storage capacity within the same warehouse floor area.

Cut Warehouse Expenses Significantly: Higher space efficiency directly reduces warehouse rental and construction costs, making it perfectly ideal for regions and enterprises with scarce land resources and high warehousing operation costs.

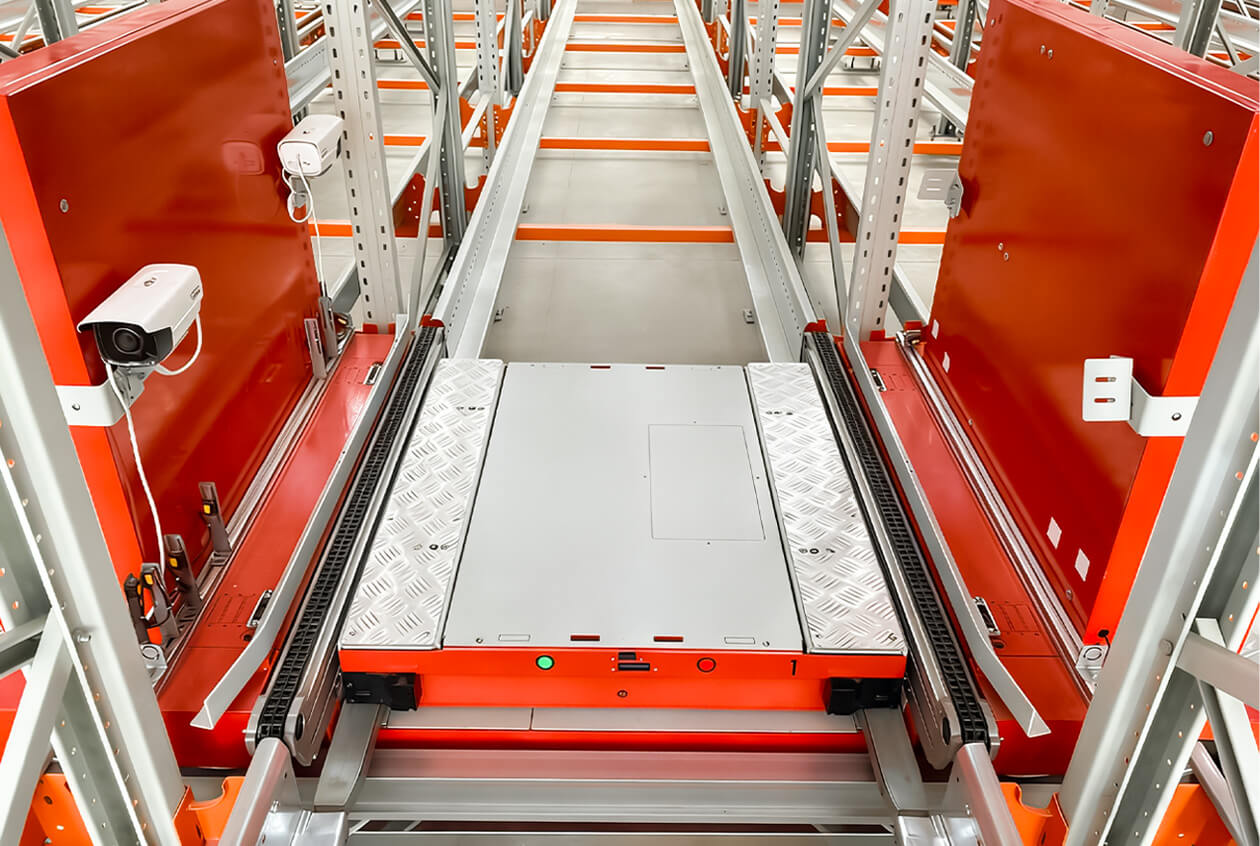

HUAYIDE Mother Child Shuttle Running on Racking Narrow Rails

Full-Process Automated Unmanned Operation & Drastically Improved Efficiency

24/7 Unmanned Automatic Operation: The whole system supports round-the-clock uninterrupted automatic running with no need for manual on-site supervision, realizing full-process unmanned warehousing operations and cutting manual labor costs.

Parallel Collaborative High-Efficiency Operation: Mother and child shuttles run in parallel and collaborate efficiently; one mother shuttle can connect multiple child shuttles on the same floor to eliminate single-equipment waiting time. The coordinated operation mode pushes overall efficiency to 3-5 times that of traditional forklift operations.

Flexible Cross-Level & Cross-Aisle Scheduling: Breaks through the limitations of traditional shuttles that cannot switch floors or move multi-directionally, supporting free cross-level and cross-aisle scheduling, perfectly adapting to the rapid inbound and outbound demands of large-volume goods.

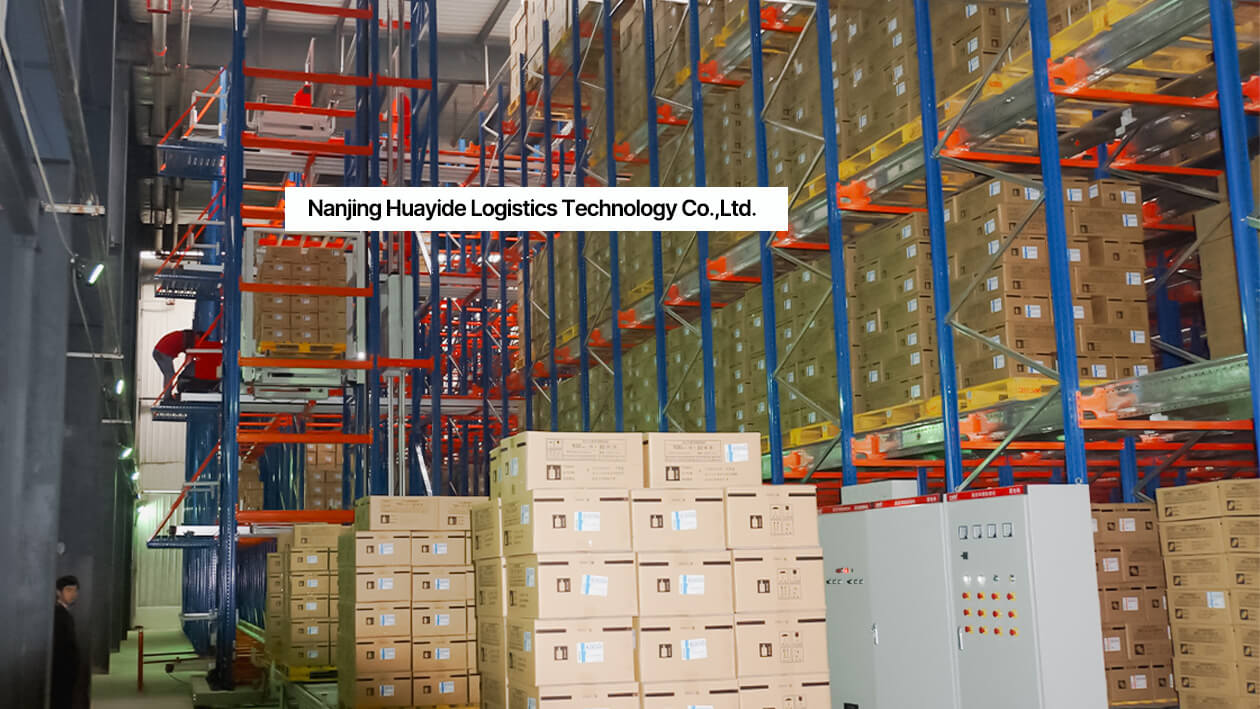

Pallet Storage with HUAYIDE Mother Child Shuttle & Cargo Lifter

Strong Scene Adaptability & Low Requirements For Warehouse Infrastructure

Low Warehouse Renovation Demand: Features high compatibility with existing warehouse building conditions including layout, floor height and ground load-bearing, allowing direct deployment without large-scale warehouse reconstruction, saving renovation time and costs.

Wide Compatibility for Standard Cargo: Perfectly suitable for standard pallet cargo storage, with flexibly adjustable racking levels and aisle depths to fit warehouses of varying heights and floor areas.

Dual Application Scenarios: Ideal for both newly built automated warehouse projects and existing warehouse upgrading and retrofitting projects, covering diverse warehousing construction and renovation needs.

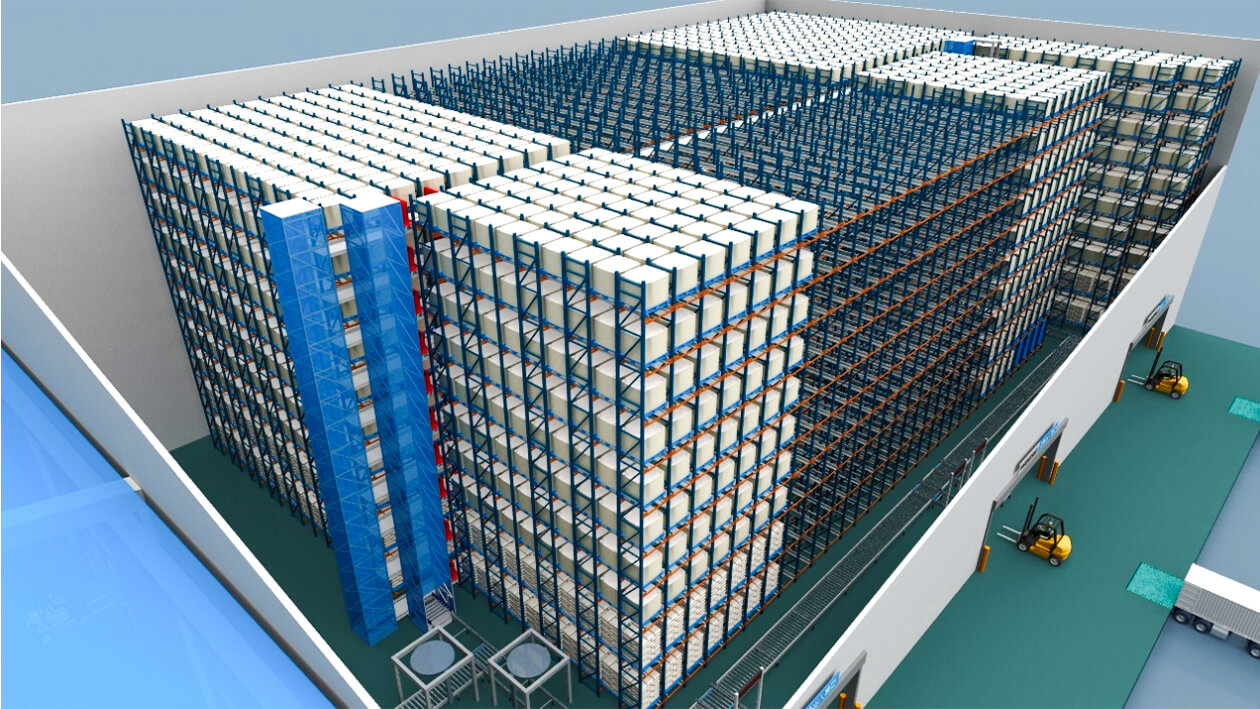

Full Automated Pallet Warehouse 3D Layout HUAYIDE Mother Child Shuttle System

Flexible Operation Modes for Customized Warehousing Needs

Dual Core Storage Modes: Supports two standard efficient modes — FIFO (First In First Out) and FILO (First In Last Out), freely switchable based on actual cargo properties and warehouse inbound-outbound logic.

Multi-Scenario Collaborative Operation: Mother-child shuttles can work together on the same floor, or realise cross-level operation via dedicated cargo lifters, adapting to diverse customised warehousing workflow demands.

Continuous Operation Guarantee: The mother shuttle supports online charging for child shuttles during daily operation, avoiding downtime for separate charging and ensuring stable, uninterrupted execution of warehousing tasks.

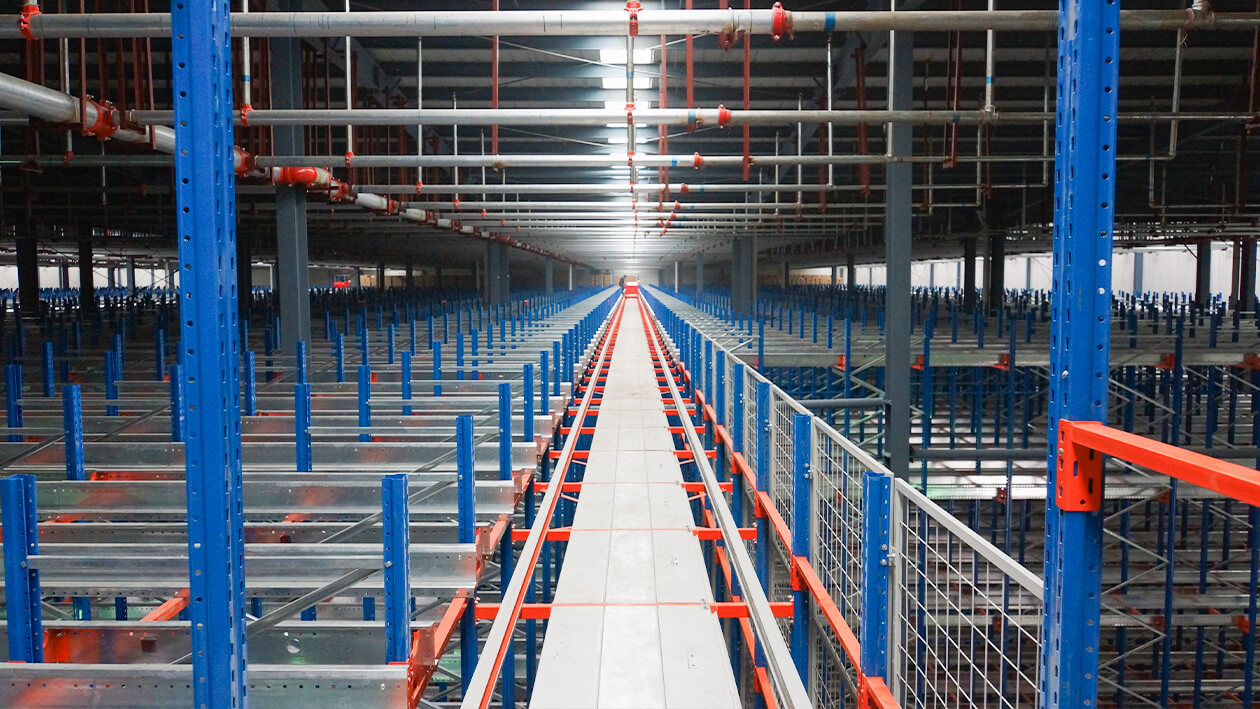

Mother Shuttle Rail Hollow Floor HUAYIDE Automated Storage System

Stable & Reliable Operation with Low Maintenance Costs

High-Quality Core Components: Built with international first-tier brand core parts and wear-resistant, durable materials, laying a solid foundation for long-term stable equipment operation and enhancing overall service life.

Comprehensive Safety & Fault Protection: Equipped with complete safety detection and fault early warning systems, effectively lowering equipment failure rate to an extremely low level, ensuring stable and continuous warehousing operation.

Convenient Maintenance & High ROI: Mother shuttle rails come with dedicated inspection panels, and hollow floors are laid under rails for easy daily upkeep, cutting later operation and maintenance costs; long-term return on investment is far better than traditional warehousing equipment.

Core Hardware Components

The HUAYIDE Mother Child Shuttle + Lifter Type Multi-Deep Dense Storage System consists of four core modules: HUAYIDE deep-dense racking, dedicated cargo lifter, mother shuttle, and child shuttle, paired with HUAYIDE’s proprietary intelligent electric control system and warehousing management software to form a closed-loop automated operation system.

HUAYIDE Deep-Dense Racking

Custom & Quality-Built: Independently custom-designed and manufactured by HUAYIDE, with strict full-process quality control from our dedicated production base.

High-Density Space Optimization: Equipped with dedicated narrow aisles and precision rails for smooth child shuttle passage, fully cutting out traditional forklift aisles and maximizing compact storage via multi-level, multi-deep dense layout.

Heavy-Duty Load Performance: Sturdy, reinforced structure built for heavy-duty use, perfectly suitable for high-load pallet storage scenarios in automated warehouses.

Read More

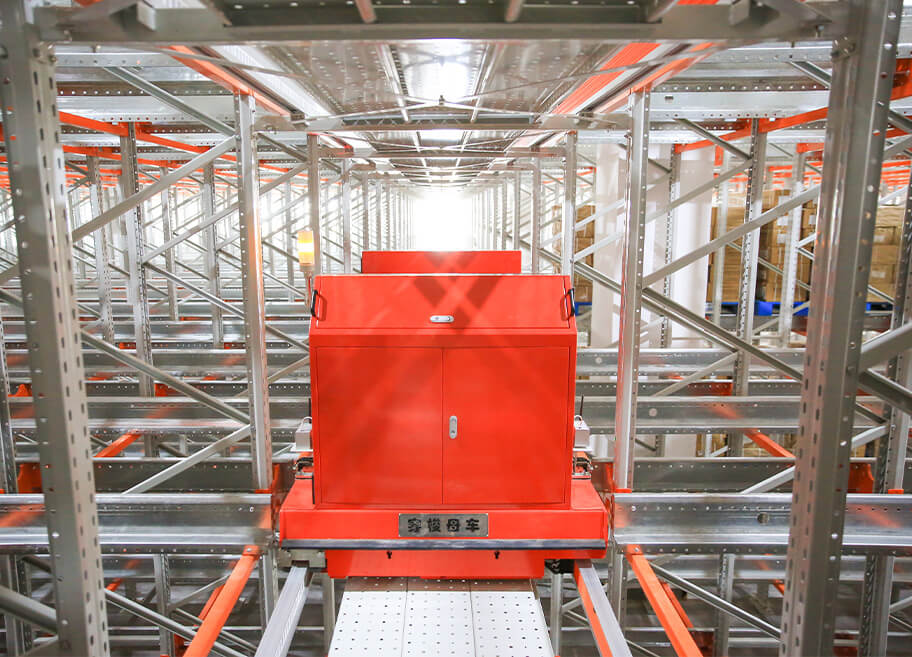

Mother Shuttle

Main Aisle Operation: Runs on warehouse main aisle rails, mainly for cross-aisle transfer and connection of child shuttles, and can also transport pallets independently.

Stable Power Supply: Adopts trolley line power supply system, ensuring stable operation and long endurance.

Efficient Collaboration: Works with multiple child shuttles at the same time to improve overall warehouse scheduling efficiency.

Read More

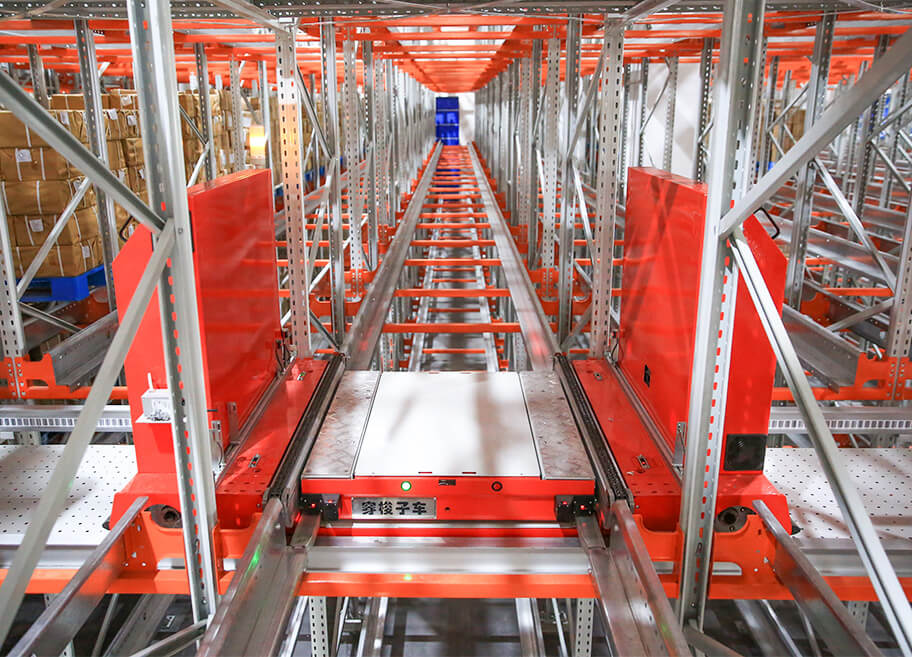

Child Shuttle

Branch Rail Operation: Runs on branch rails inside racking aisles, focusing on refined pallet operations including storage, retrieval, sorting and inventory counting.

Dual Power Supply Mode: Uses supercapacitor drive + 24V rechargeable lithium battery backup, equipped with automatic charging function.

24/7 Continuous Operation: Automatically sends charging requests to the host computer when power is below the threshold, guaranteeing uninterrupted all-day operation.

Read More

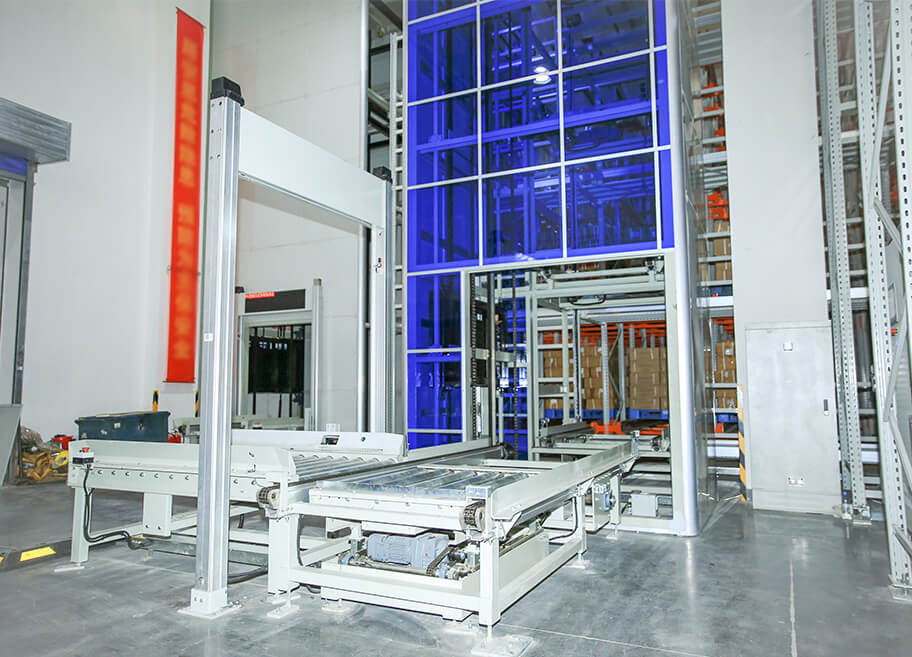

Dedicated Cargo Lifter System

Full-Floor Vertical Transport: Runs through all storage floors of the warehouse, handling vertical delivery of mother shuttles, child shuttles and pallets.

Flexible Scheduling: Can transport pallets alone to designated floors for child shuttle access, or synchronously carry the entire mother-child shuttle unit for cross-level operation.

Stable & High-Capacity: Runs smoothly with strong load capacity, perfectly matching vertical transport demands of multi-level automated warehouses.

Read More

Standardized Operational Process & Principles

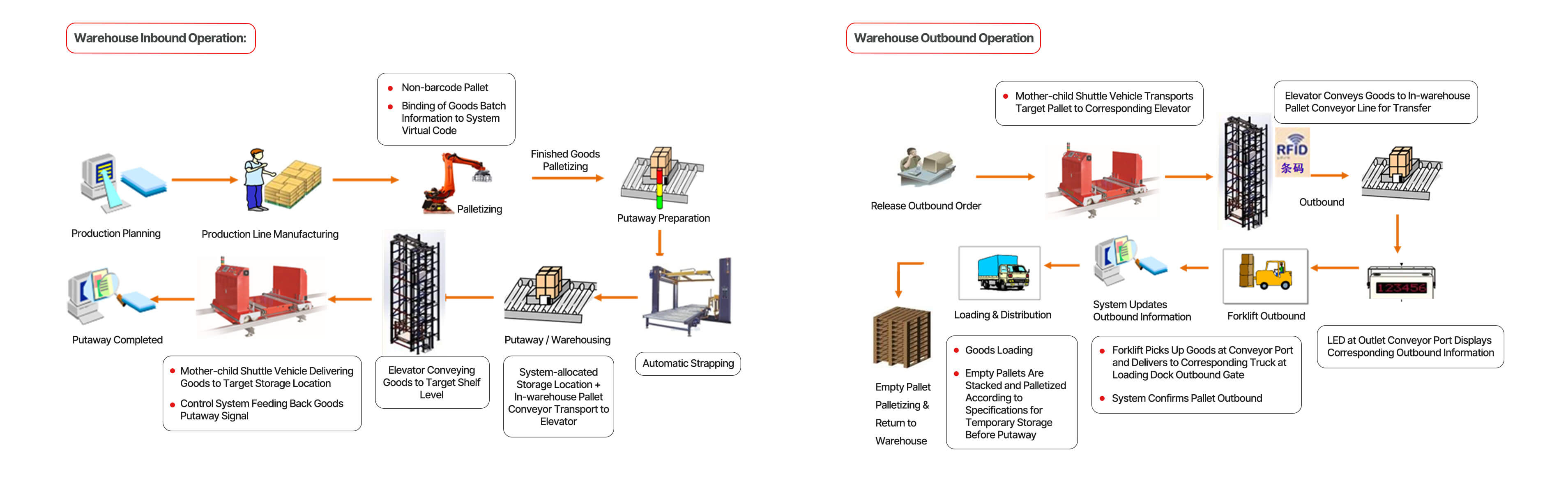

HUAYIDE Mother Child Shuttle Inbound & Outbound Operation Flow Diagram

Intelligent System Control
The entire system is centrally managed by an intelligent control system for stable and efficient operations.
Mother–Child Shuttle Coordination
The mother shuttle transports child shuttles along the main aisle. At the target location, the child shuttle detaches and independently completes storage and retrieval tasks inside the rack.
Parallel Multi-Task Operation
The mother shuttle operates continuously without waiting, enabling multiple tasks to run simultaneously and significantly improving efficiency.
Cross-Level Warehouse Coverage
Cargo lifters handle vertical transfer of shuttles and pallets, enabling seamless operation across different levels and full warehouse access.
Flexible & Fully Automated Operation
The system replaces manual forklifts and supports both FIFO and FILO modes to adapt to different storage strategies.

Core Equipment Materials & Key Component Configuration

The entire HUAYIDE system adopts industrial-grade high-end configuration, with core components sourced from internationally renowned brands and assembled under HUAYIDE’s strict quality standards to ensure long-term stable operation and low failure rates. Key hardware specifications of HUAYIDE mother-child shuttle equipment are as follows:

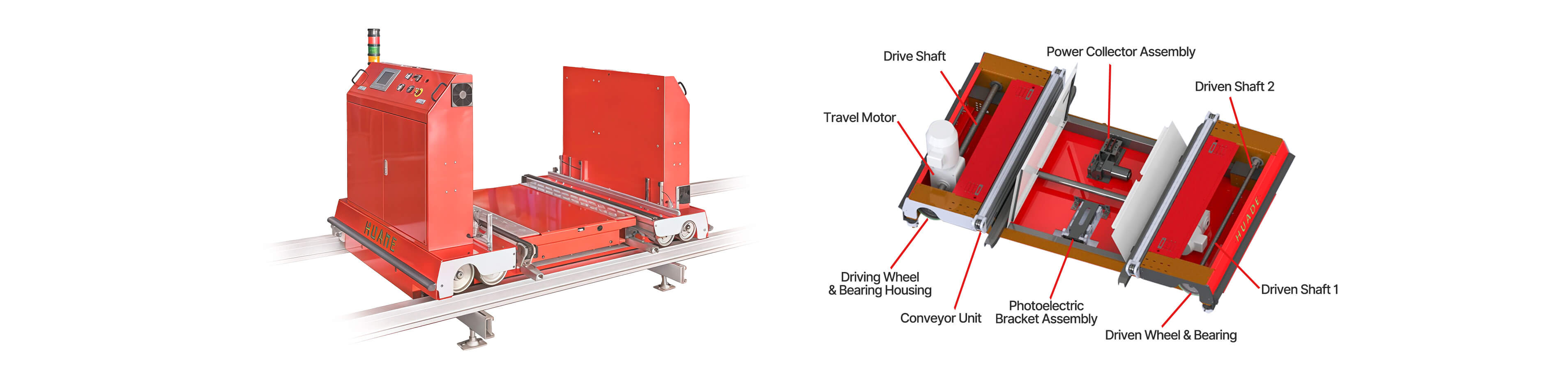

HUAYIDE Mother Child Shuttle Structure Diagram

Child Shuttle Body
Made of thickened Q235 steel plate with automotive baking finish; the lifting cover plate uses patterned anti-skid plate, equipped with 8 polyurethane casters and 4 guide wheels for smooth and jitter-free operation.
Power System
Child shuttle uses supercapacitor drive + 24V rechargeable lithium battery backup; lifting motor is brushless, walking motor is brushed. Mother shuttle adopts dedicated trolley line power supply, with H-shaped aluminum profile rails and built-in trolley lines for enhanced safety and durability.
Core Electric Control & Sensors
Controller adopts SIEMENS series; sensors use German Pepperl+Fuchs photoelectric sensors and laser ranging sensors with industrial-grade positioning accuracy to eliminate positioning errors. Motor reducers for conveying equipment are SEW/Lenze brands; PLC control system is SIEMENS S7-1500 with Profinet fieldbus for stable communication and fast response.
Safety Configuration
Full set of safety detection systems, including pallet spacing laser ranging, precise positioning sensors, lifting distance sensors, rail foreign object detection sensors, and anti-collision detection sensors, providing all-round operational safety and avoiding cargo shaking, offset, and equipment collision.

Applicable Scenarios

HUAYIDE Mother Child Shuttle + Lifter Type Multi-Deep Dense Storage is specially engineered by HUAYIDE for standardized pallet storage with low SKU categories and high single-batch volume. With mature, field-proven technology and stable performance, HUAYIDE’s system is widely used in the following industries and scenarios across the globe:

Food & Beverage Industry
High-volume standardized goods such as bottled drinks, canned food, grain & oil, and dairy products, applicable to both ambient temperature and low-temperature cold chain warehouses.
Chemical Industry
Heavy-duty pallet goods including chemical raw materials, plastic particles, and bagged chemicals, meeting high-density and standardized storage requirements.
Manufacturing Industry
Warehousing of factory raw materials, parts, semi-finished and finished products, matching production line supporting logistics centers to ensure fast material supply.
Third-Party Logistics (3PL) Warehouses
Custodial storage of high-volume goods, improving warehouse position utilization and operational revenue.
Cold Chain Warehousing
Dense pallet storage in low-temperature environments, reducing invalid cold storage space and lowering refrigeration energy consumption.

Brand Strength & Technical Support

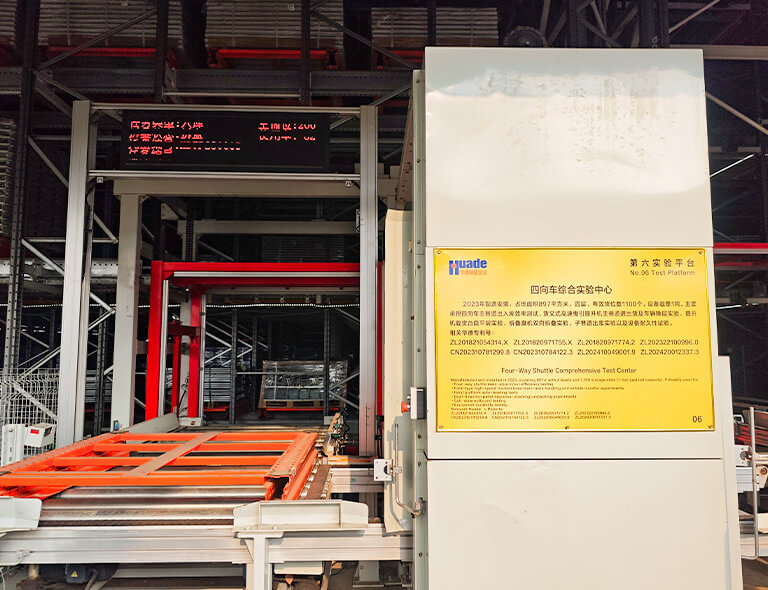

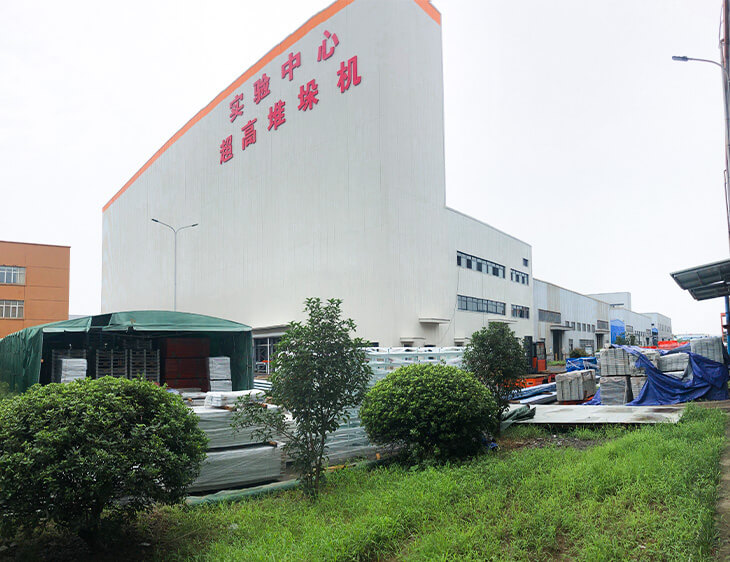

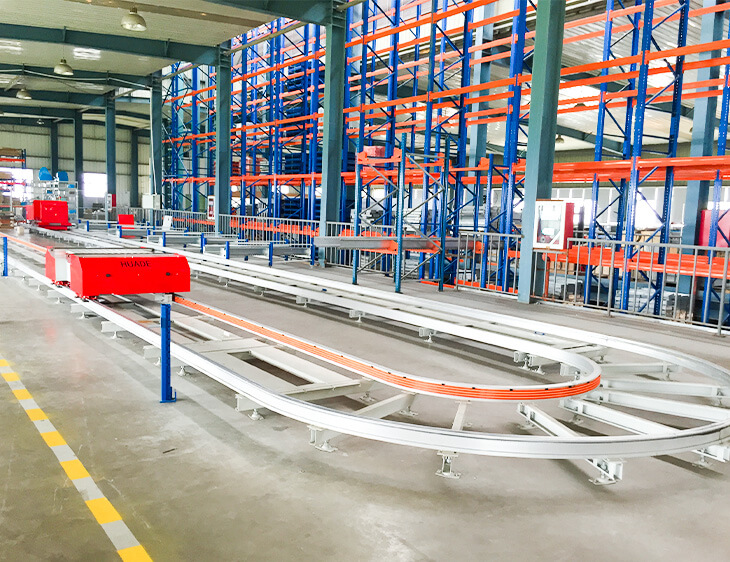

As a core provider of Mother Child Shuttle + Lifter Type Multi-Deep Dense Storage solutions, HUAYIDE has a complete system of R&D, testing, production, and project implementation, with industry-leading technical strength and project experience. We provide full-chain services from solution design, equipment production, installation and commissioning to later operation and maintenance.
