European-style pallet shelves, considering deformation and stacker impact

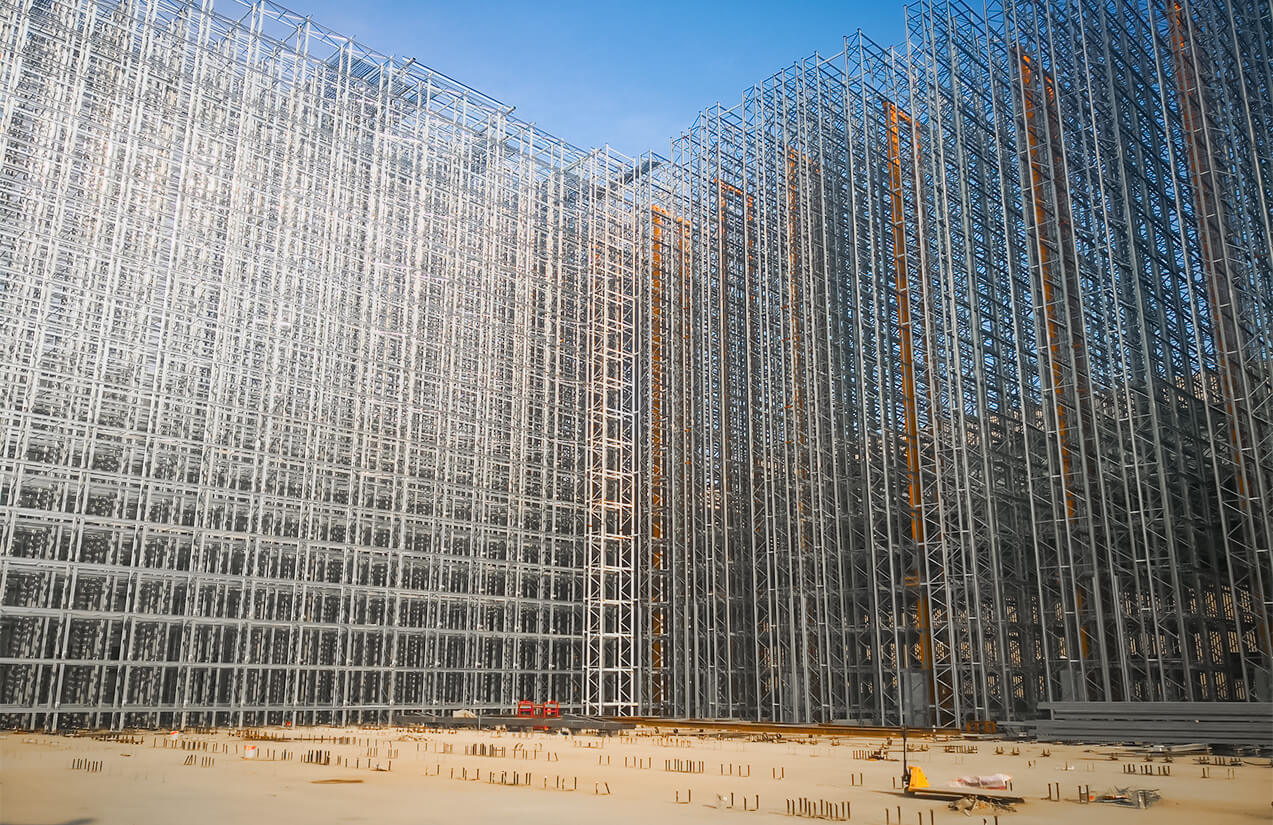

A Clad Rack Warehouse is a comprehensive storage system that uses shelves as the main structure of the warehouse. The shelf-supported warehouse equipped with automated storage and retrieval system (AS/RS) such as pallet stackers can maximize the use of vertical space, with a project height of up to 40 meters. Compared with traditional warehouses, HUAYIDE Clad Rack Warehouse has core advantages such as space optimization, high-level storage, cost saving and faster implementation speed, making it the preferred solution for ultra-high automated warehousing scenarios.
With over 20 years of experience in the intelligent warehousing industry, HUAYIDE has been deeply engaged in this field, providing one-stop semi-automated and automated warehousing solutions for various industries worldwide. Focusing on the R&D and project implementation of automated warehousing technology, we have accumulated rich experience in domestic and foreign automated warehousing projects across diverse sectors.

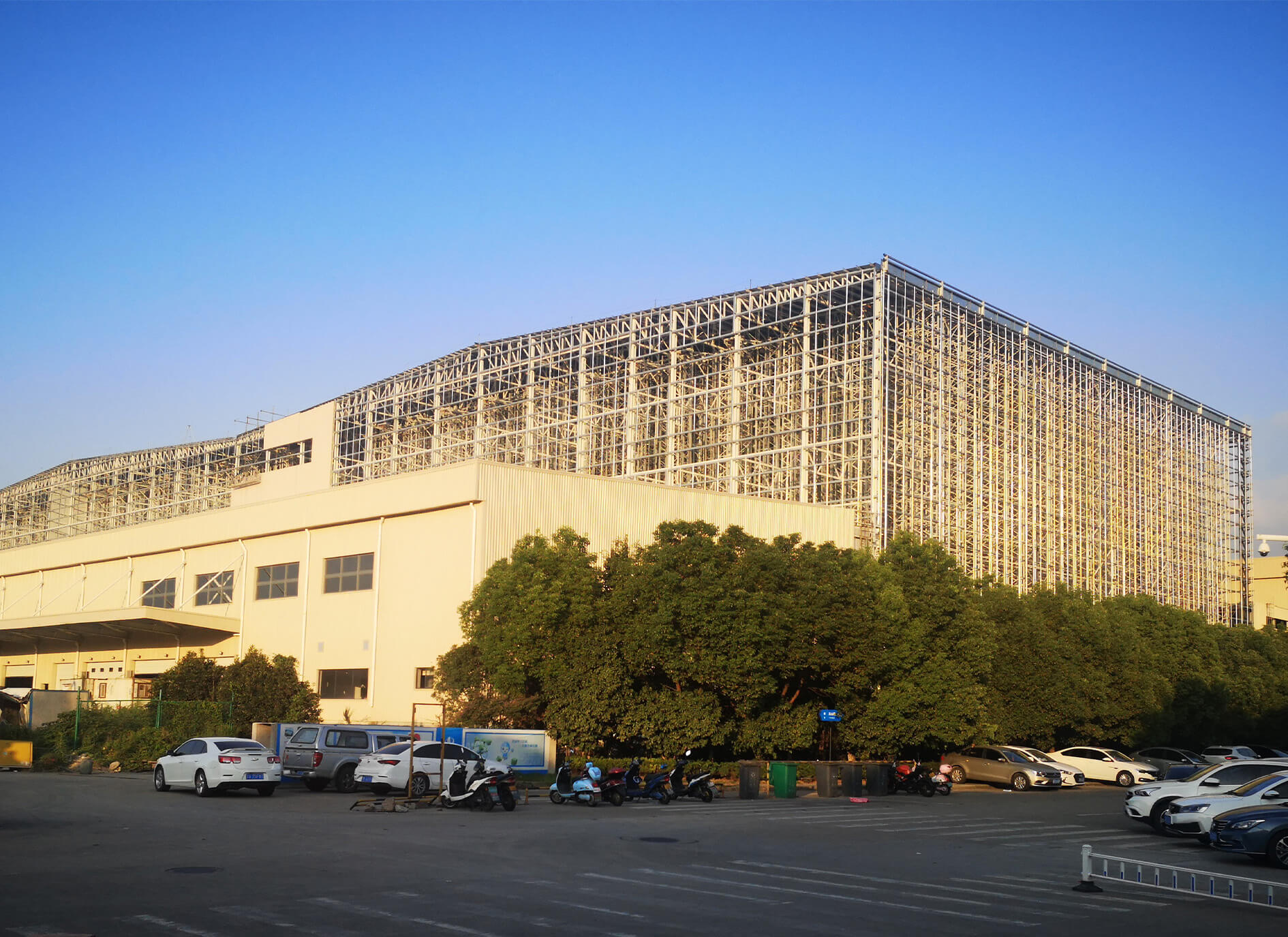

Without traditional columns, shelves serve both load-bearing and storage functions, increasing storage capacity by 3-5 times under the same floor area. It can reach 40-45m (vs. <30m for traditional warehouses), boosting unit land storage by 20%~40%—more valuable with higher land costs.

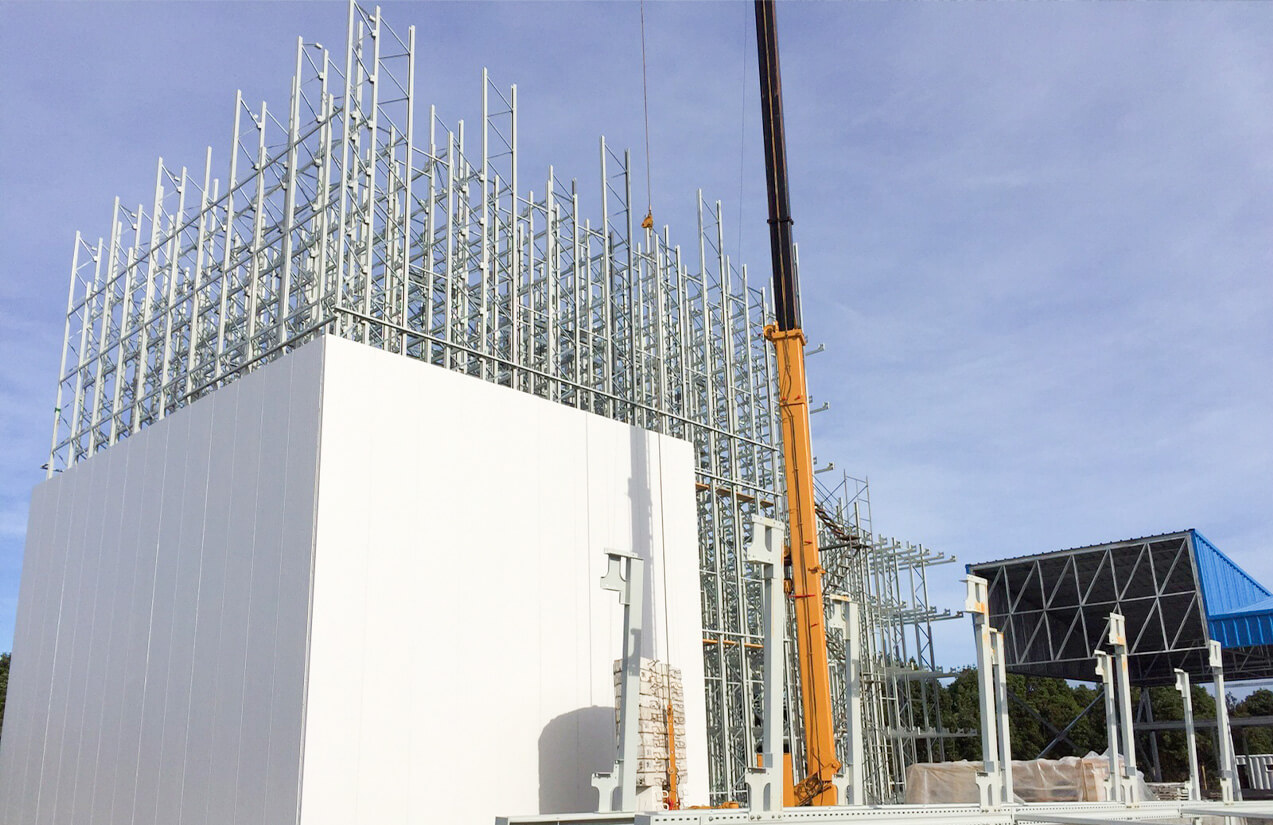

Integrated design reduces materials and processes. For new projects ≥28–30m with ASRS as the core, its unit volume cost is lower than ordinary warehouses (lower unit pallet position cost above 30m), balancing stability and economy.

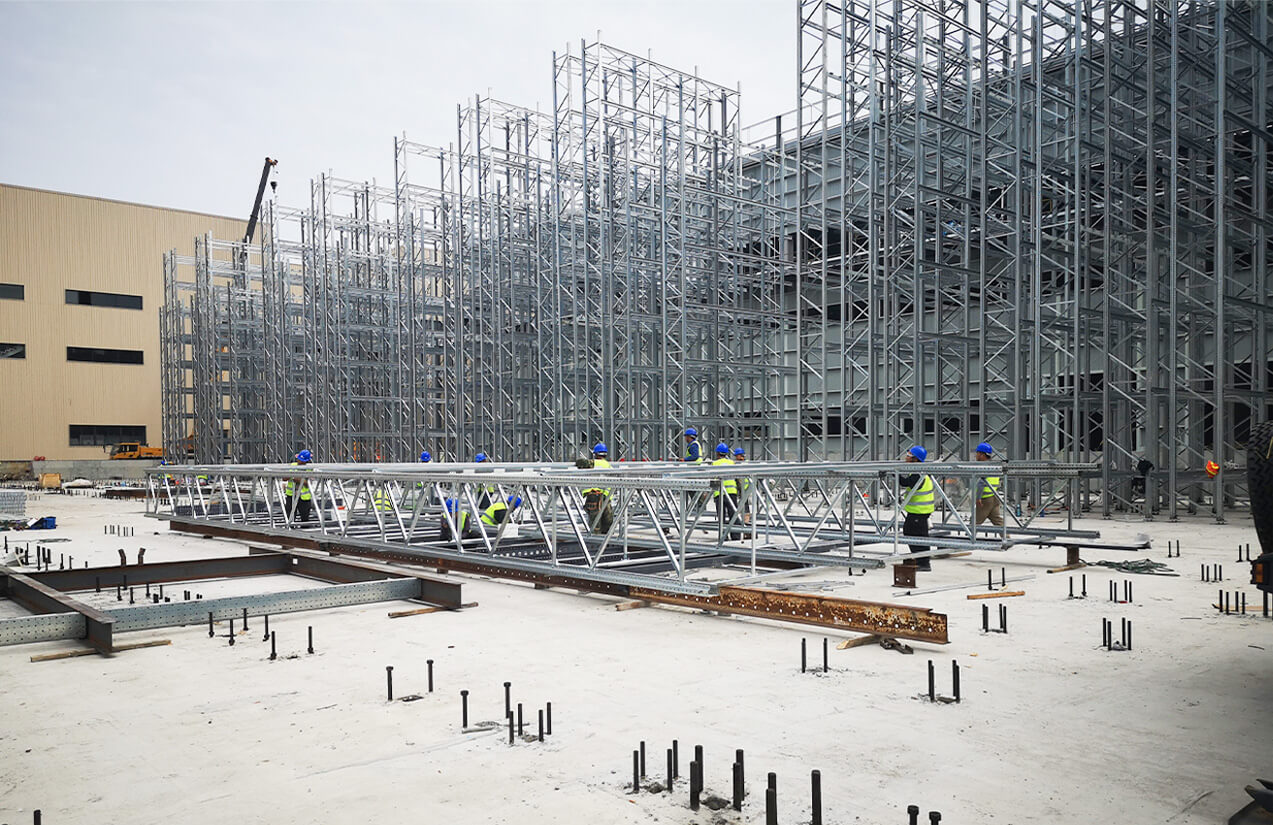

Parallel construction (foundation + shelf installation simultaneously) shortens the period by 20%~30%, vs. the long serial process of ordinary automated warehouses, ideal for time-sensitive projects.
Equipped with stackers and four-way shuttles for unmanned goods access and precise scheduling. Combined with HUAYIDE WCS, it enables full-process visual management, data statistics, and remote monitoring, reducing manual intervention and improving efficiency.

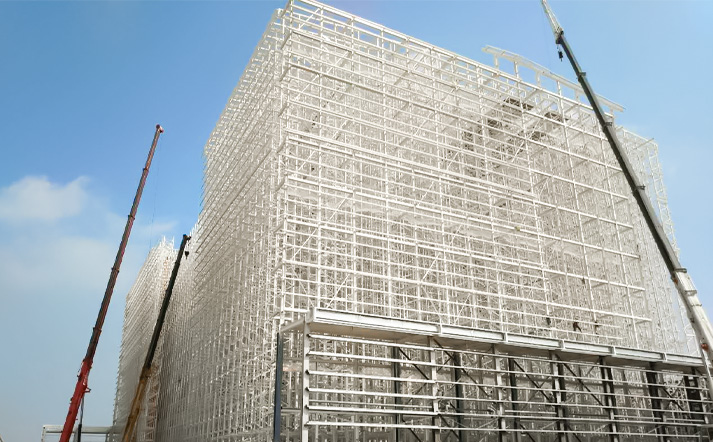

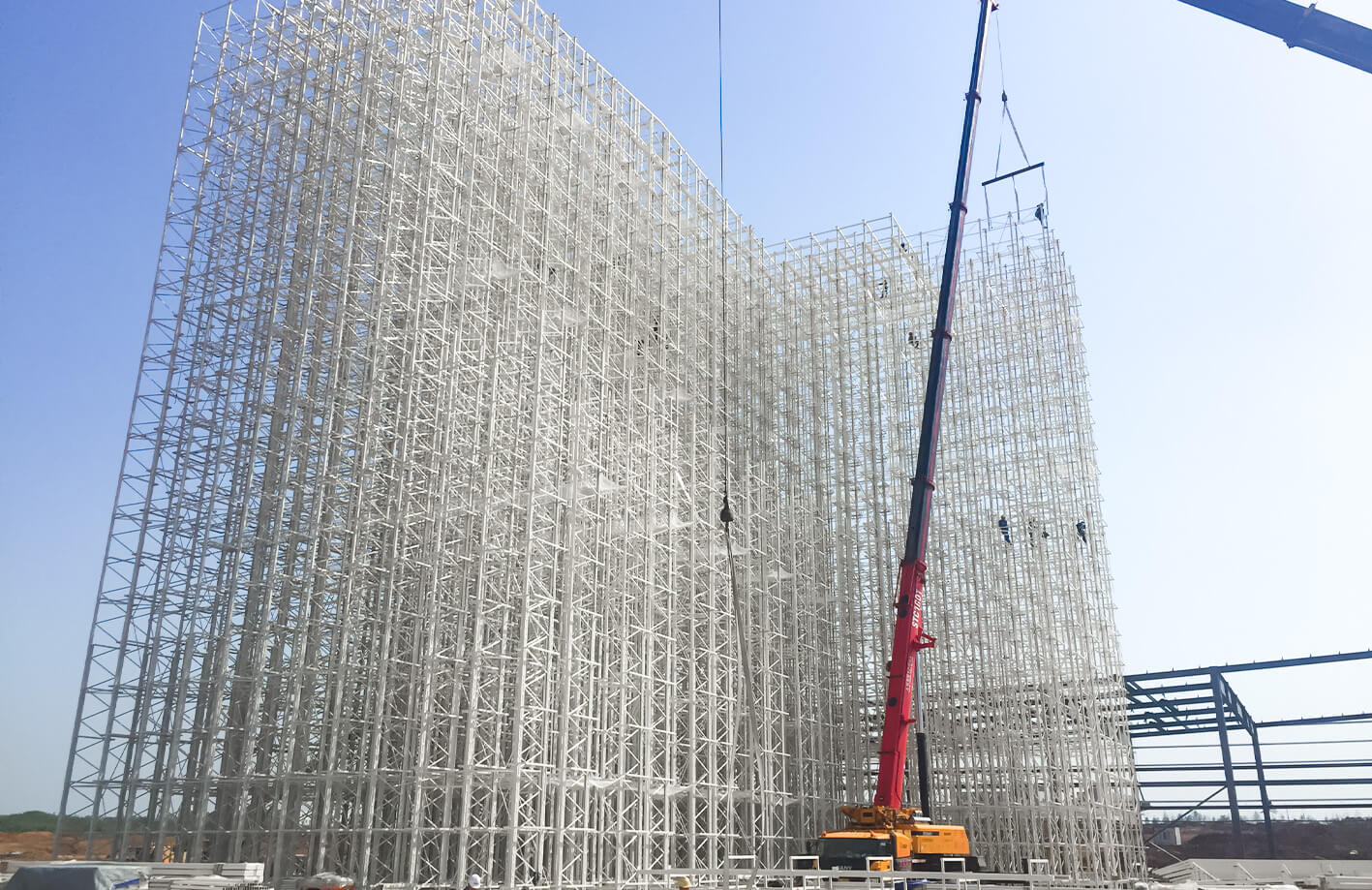

Optimized mechanical design (7-degree seismic fortification) resists lateral impact and uneven settlement (≤1.5/1000), operating stably under 0.7kN/m² wind pressure. Clear force paths ensure controllable risks in high-wind or seismic areas.

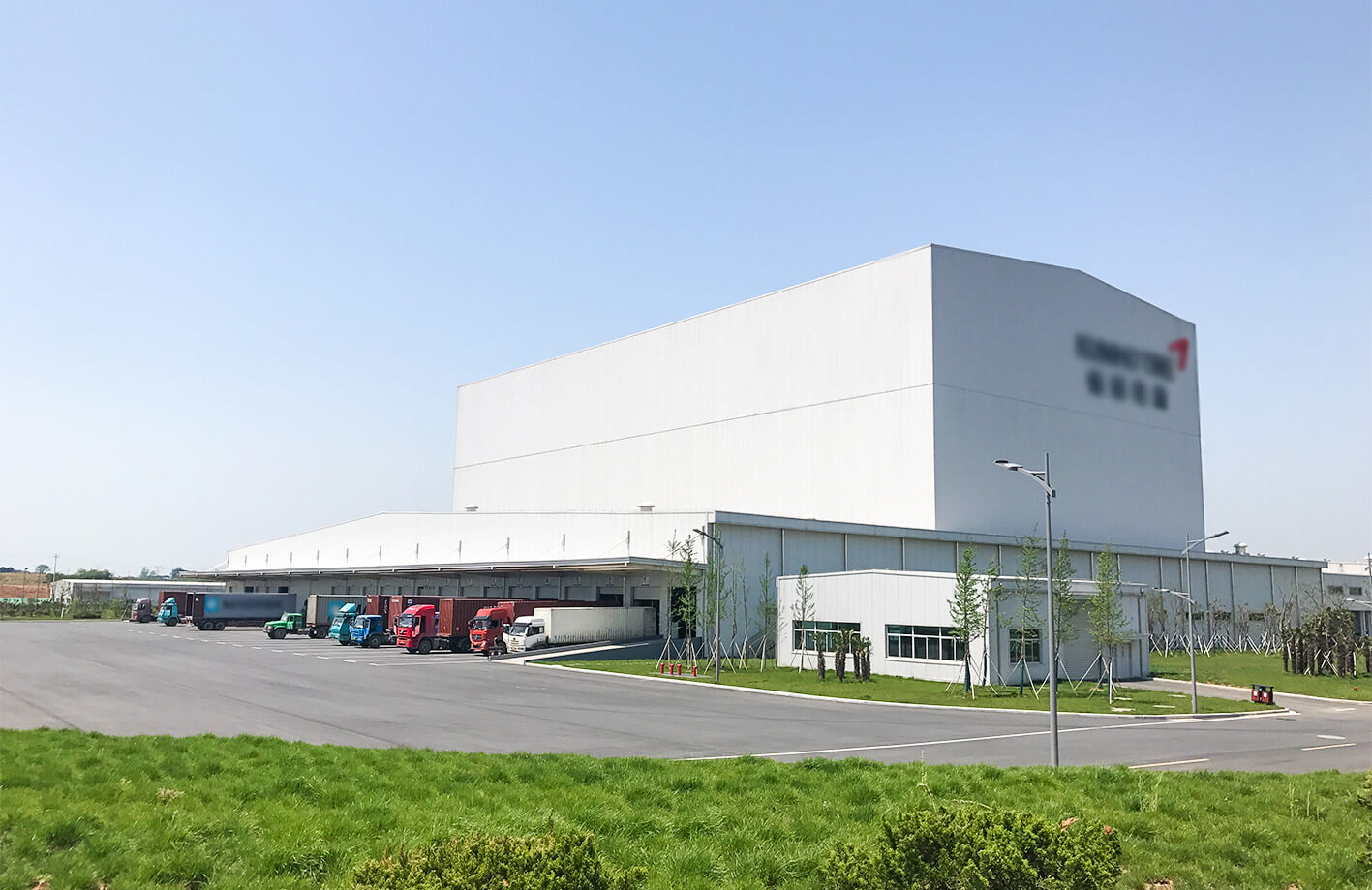

Ideal for cold storage (reduces refrigeration energy consumption by 10%~25% via minimal volume). No redundant columns or secondary maintenance; low failure rate cuts long-term (20-year) maintenance costs vs. ordinary warehouses.
European-style pallet shelves, considering deformation and stacker impactMade of galvanized high-quality steel, complying with DIN EN ISO 1461 standardHigh precision with column hole error ≤±2mm and complete supporting safety designsDesign aisles and layouts according to the plan, and provide free 3D automated warehousing system simulation services.

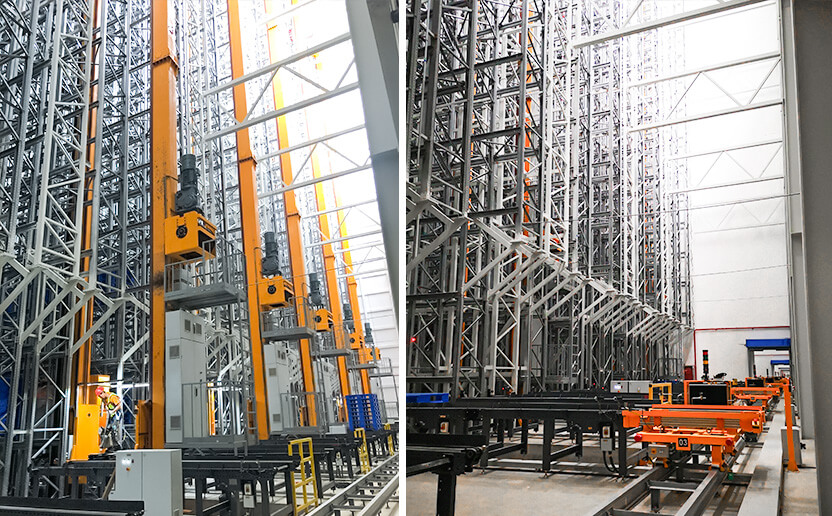

Installation height up to 40 metersLoad capacity up to 6000 kgTemperature range: -30℃ to +60℃Support for pallet, box and special handling requirementsEquipped with load handling devices for various applicationsIntegrated with laser positioning, safety protection and energy-saving functions

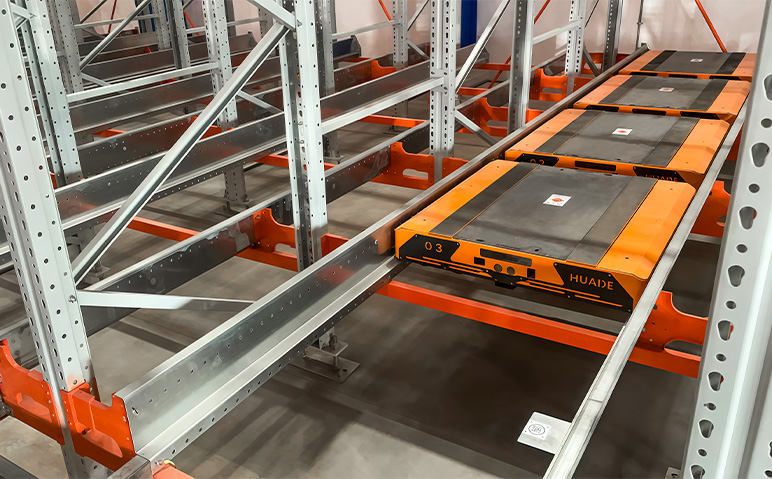

Advanced four-way shuttle technology for high-density storage, matching Clad Rack structure. All system components are independently designed and manufactured by HUAYIDE, providing customers with advanced, unique and automated high-density storage solutions.It cooperates with HUAYIDE's independently developed WMS and WCS systems to realize dynamic management of stored items in the warehouse.

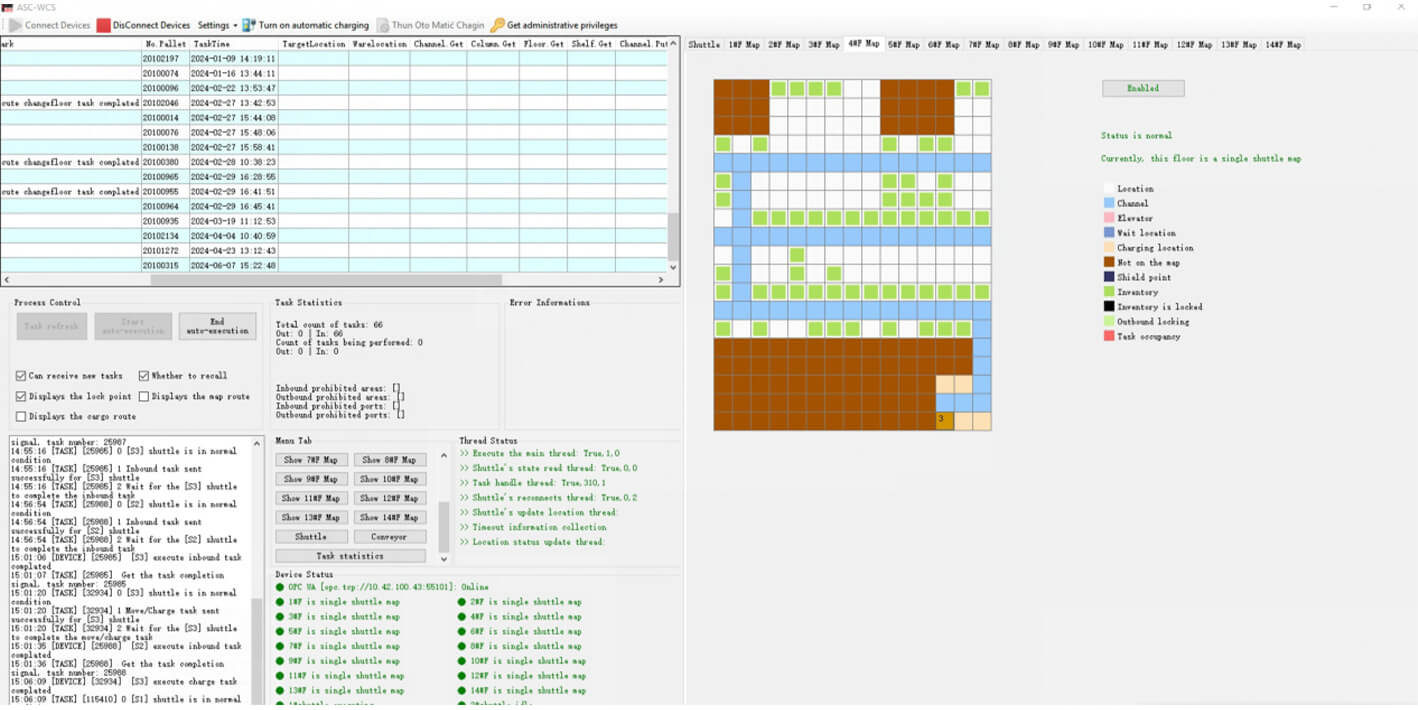

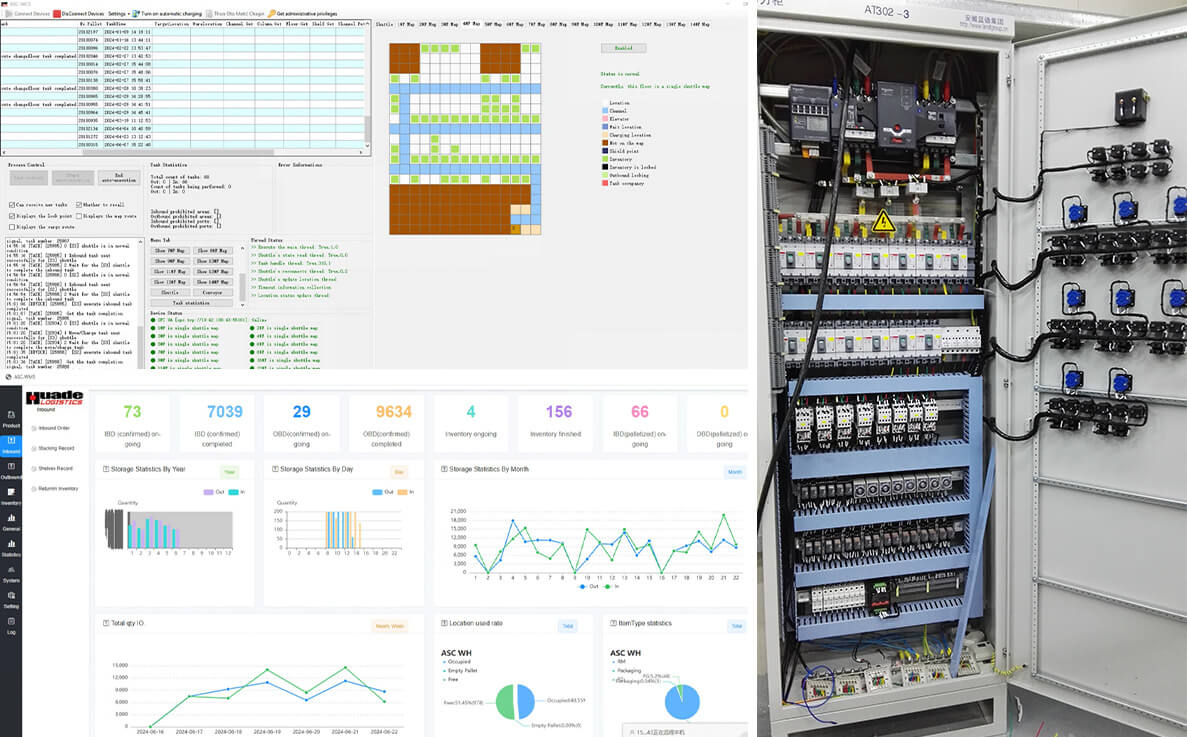

Electrical Control SystemWCS Warehouse Control System

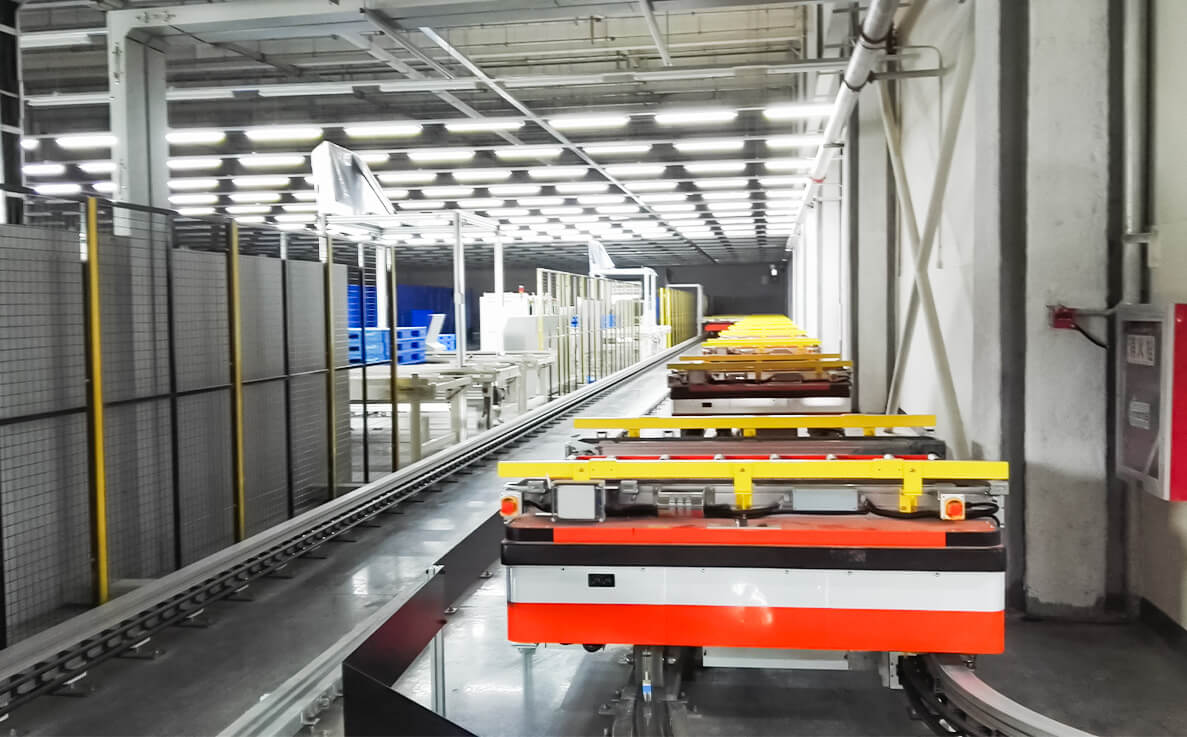

Custom multi-area lines, seamlessly connecting with stackers/shuttles for automatic goods circulation, improving overall efficiency.HUAYIDE provides one-stop production and procurement services.Adopts modular design according to the design scheme.Uses high-quality materials for manufacturing, featuring high strength, high plasticity and toughness.

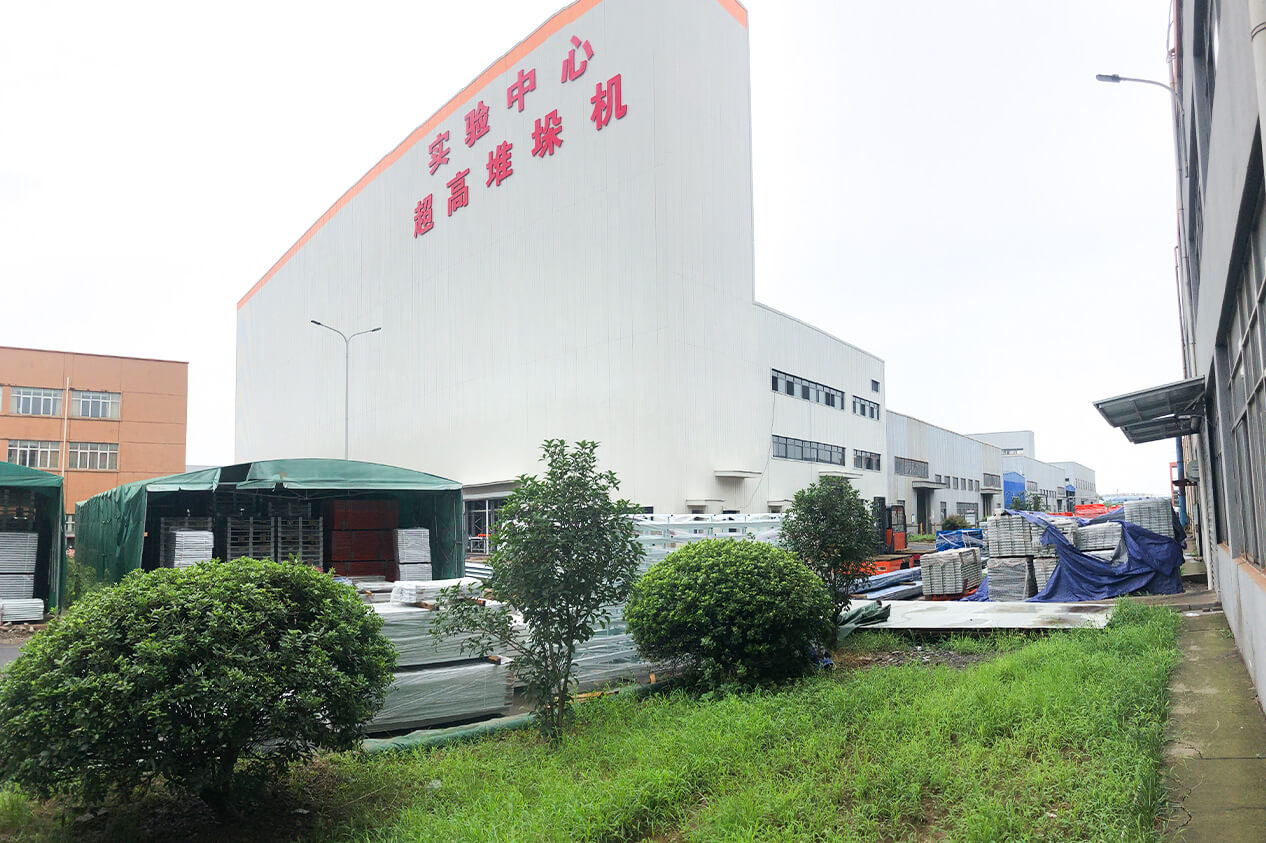

It is the core position for HUAYIDE's technological R&D and testing. Covering an area of 540㎡, it has a 36-meter-high stacker, a total of 2880 storage positions, pallets up to 2.8 meters in length, and a single pallet load capacity of 1.5 tons. Currently, it is mainly used to store shelves, beams and other products independently produced by HUAYIDE's factory, realizing the full-link closed-loop verification from R&D and manufacturing to warehousing application.

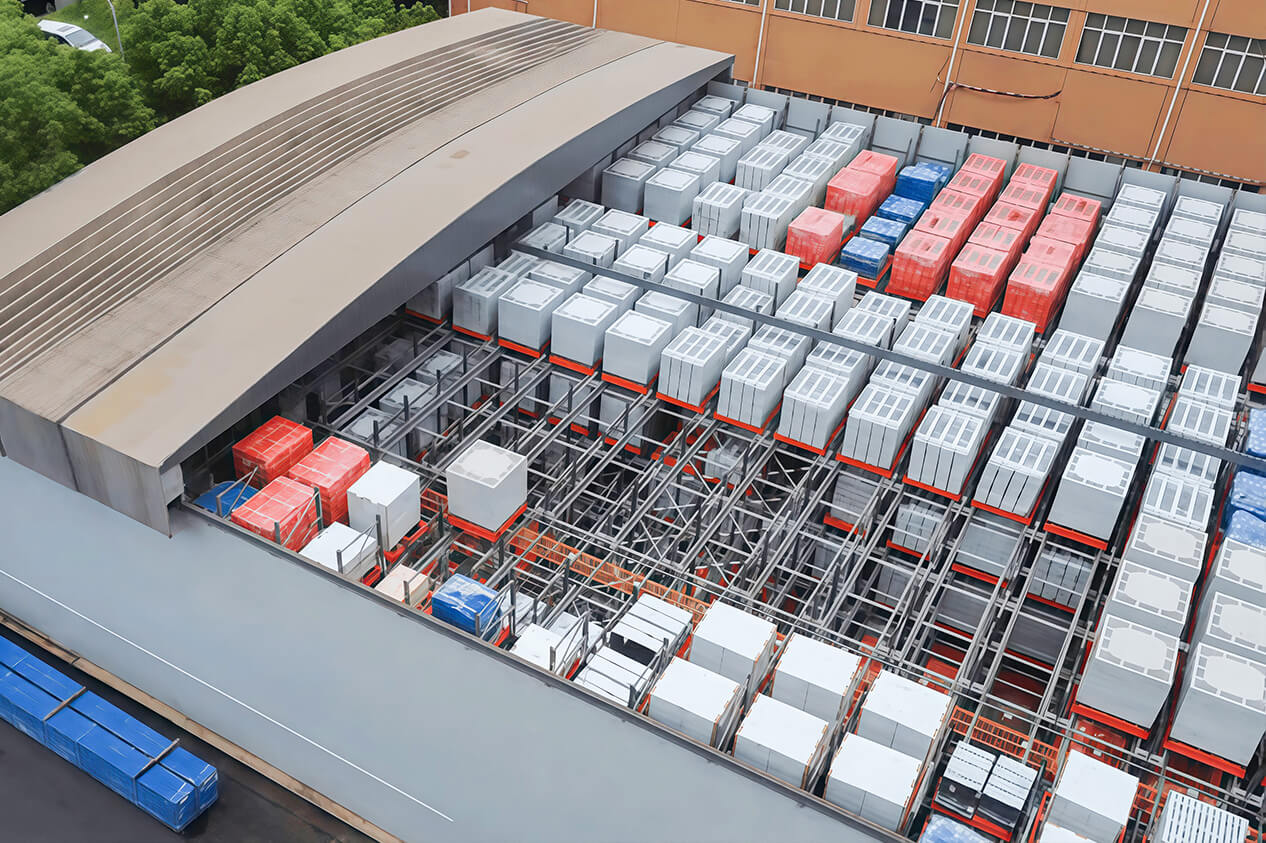

Adopting advanced four-way shuttle technology, it realizes high-density storage, intelligent handling and precise management of goods. The warehouse is 8 meters high, covers an area of less than 900 square meters, and has about 1,200 storage positions, fully demonstrating the efficiency and rationality of space utilization.
Full-Process Project Management
Professional Installation & Quality Control
Customized Technical Training
Four-Level Acceptance
Suitable for e-commerce, bonded, logistics, chemical, machinery, and food cold storage warehouses. Ideal for new projects ≥28–30m with ASRS, high storage density/efficiency/automation needs.
