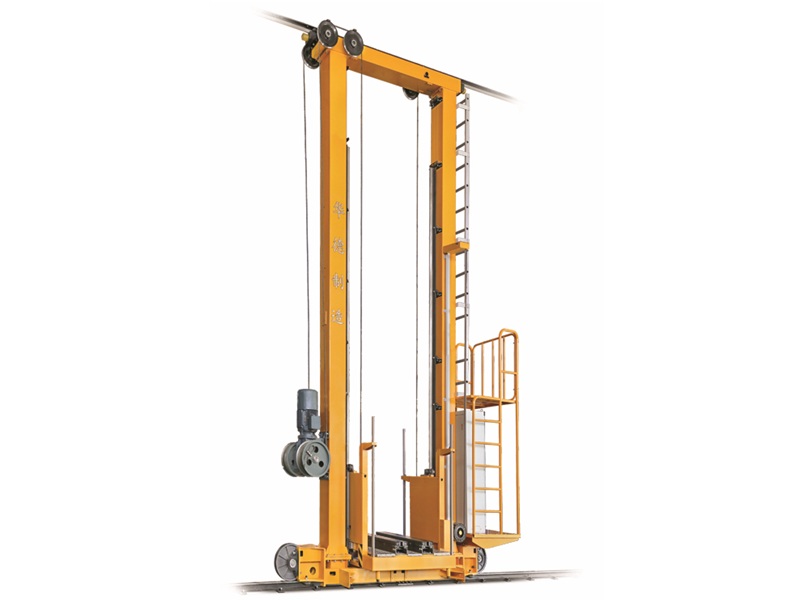

Stacker crane for pallets loads storage and handling in automated warehouse

stacker crane system
stacker crane system
stacker crane system

Stacker crane for pallets loads storage and handling in automated warehouse

Single/double-depth automatic unit-load warehouses with stacker cranes to handle load units placed on pallets - intensive and selective storage.

Inquire Now

Stacker Crane ASRS


stacker crane asrs

Unit load AS/RS generally falls into two categories: crane-based AS/RS systems and shuttle-based AS/RS systems.

Similar to pallet racking, there are different configurations like total number of SKU (stock keeping unit), ABC classifications, inbound & outbound throughput, proposed area size and other factors etc need to be considered when implementing a unit load AS/RS system. The system solutions can range from:

Single deep (1 pallet per lane)--Stacker Crane Based AS/RS
Double deep (2 pallets per lane)--Stacker Crane Based AS/RS
Multi-deep or deep lane (3+ pallets deep)--Shuttle Based ASRS

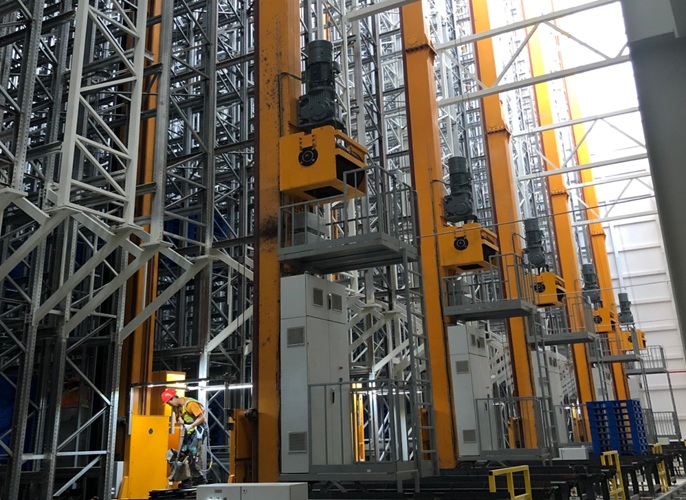

HUAYIDE stacker crane based unit load ASRS, it features one or more narrow aisles of storage rack structures in existing building or a clad rack warehouse. The structure can reach up to the height of 40 meters. Our storage and retrieval machine (SRM) travels between the racking both in X-axis and Y-axis, instructed by WMS which provides a rapid access to allocated pallets and other bulky loads in a secured, high-density and energy efficient storage system. Usually, the system contains one SRM per aisle. But in case it is a slower system, one SRM can be allocated to two or multiple aisles.

If you’re looking for an AS/RS system for case, tray, cardboard box or tote storage and retrieval, please visit our mini load system page.

For companies that handle both pallets and cartons, a combination of a unit-load AS/RS system and a mini-load AS/RS system is a viable option.



Facts:



• Installation height up to 40 m, payload up to 6,000 kg

• Temperature range – 30 °C to + 60 °C

• Handling of pallets, cases and specialized handling

• Load handling device for every application

• Continuous control conception

• Energy efficient system control

• Approved and derailment-guarded aisle-changing system

• Production according to ropeway standards

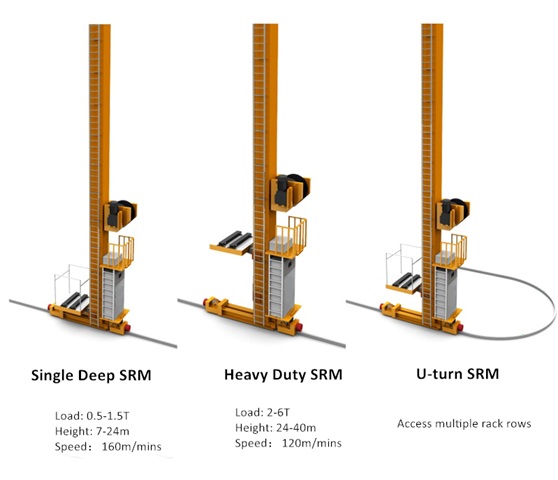

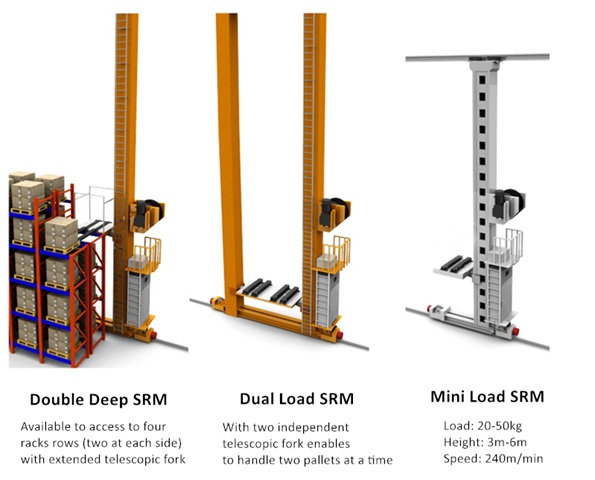

Variations:



Stacker Crane ASRS VariationsStacker Crane ASRS Variations



Add-on:

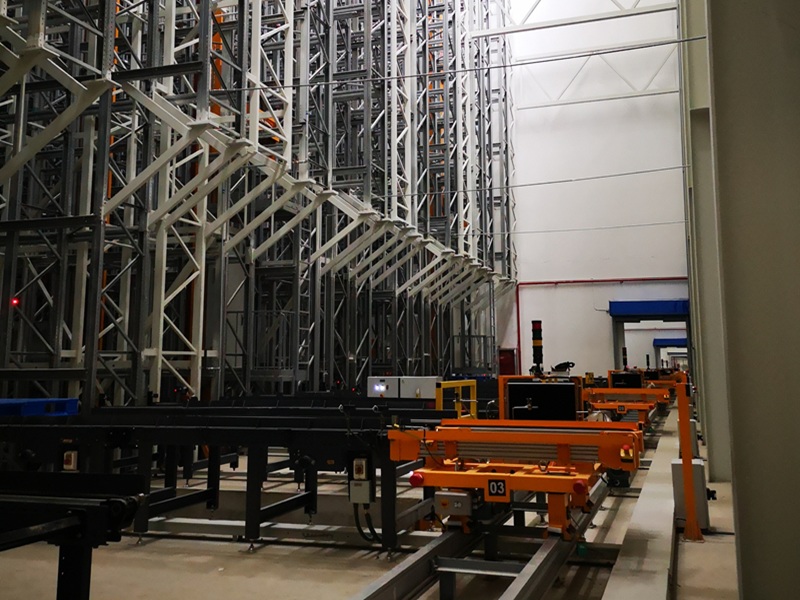

RGV



Rail-guided vehicle system STV connects AS/RS aisles to in/out conveyors.

End-of-aisle Conveyors



Conveyors automatically transport pallets to and from load/unload stations. Can also transfer pallets to/from RGVs.
