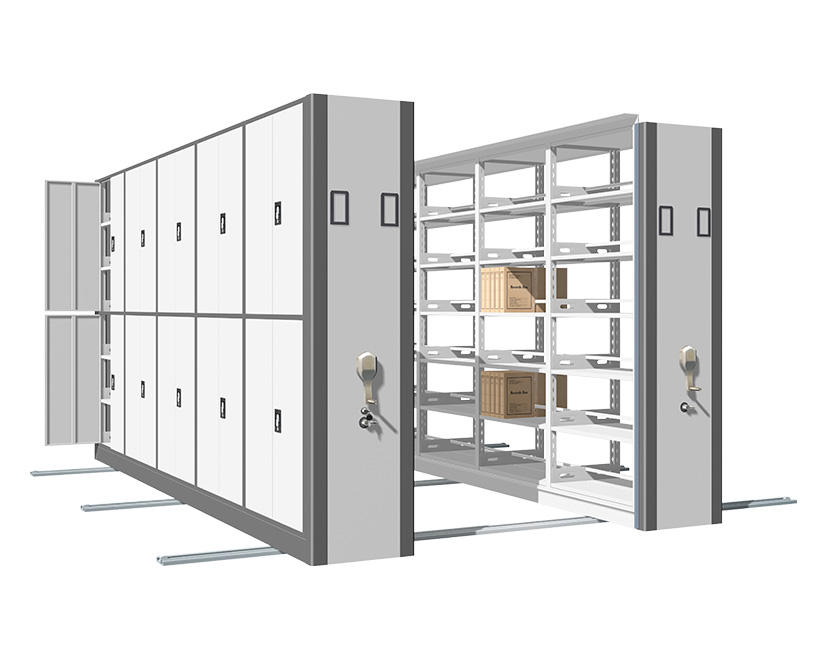

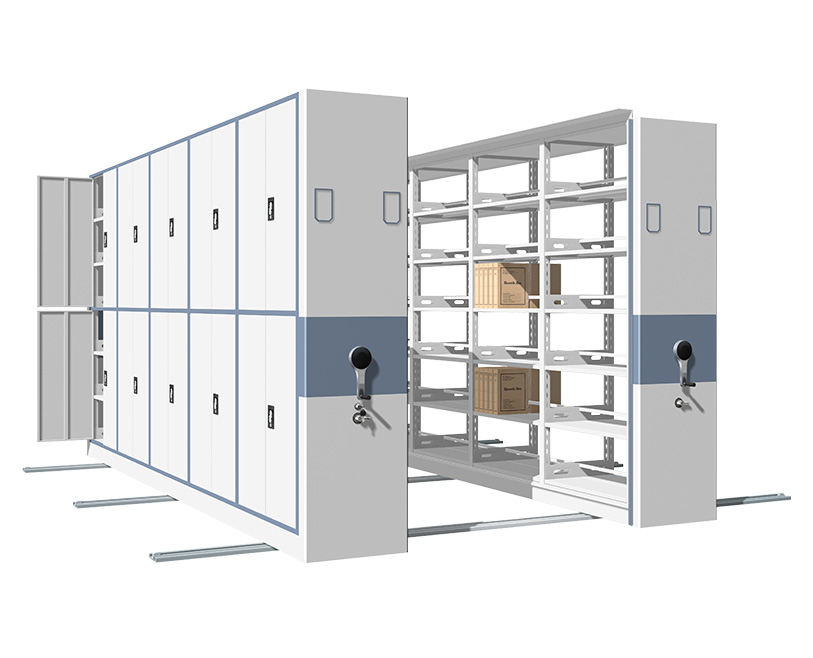

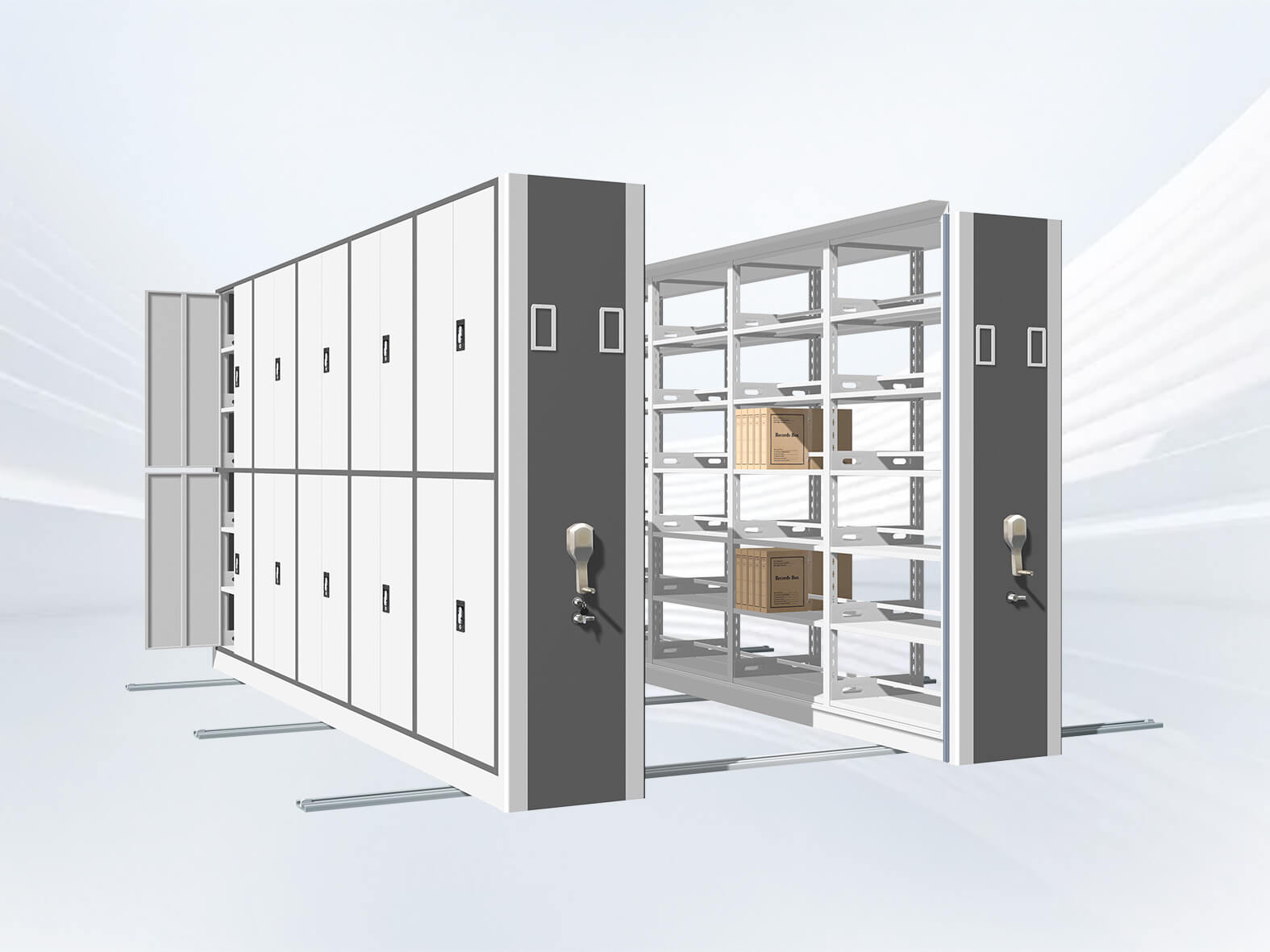

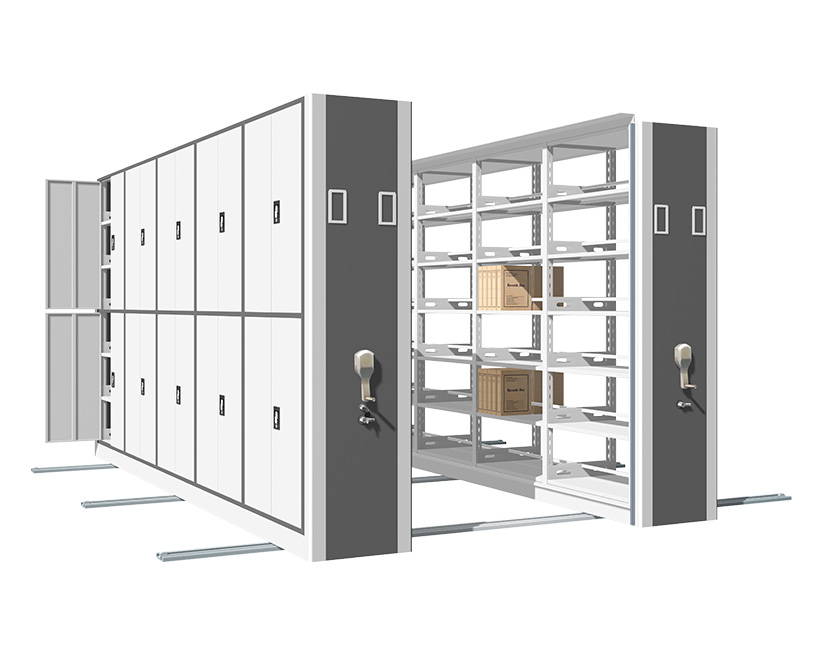

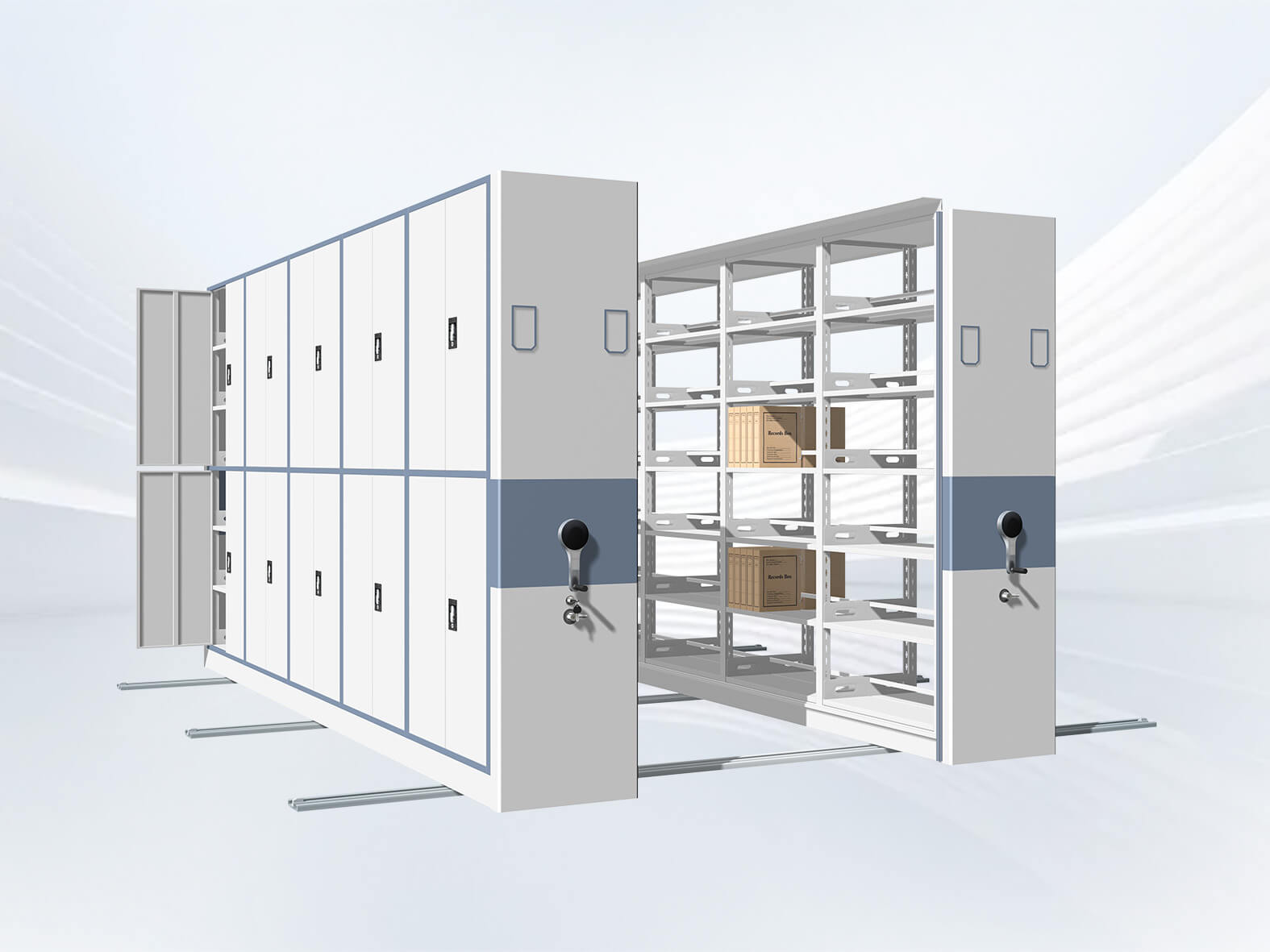

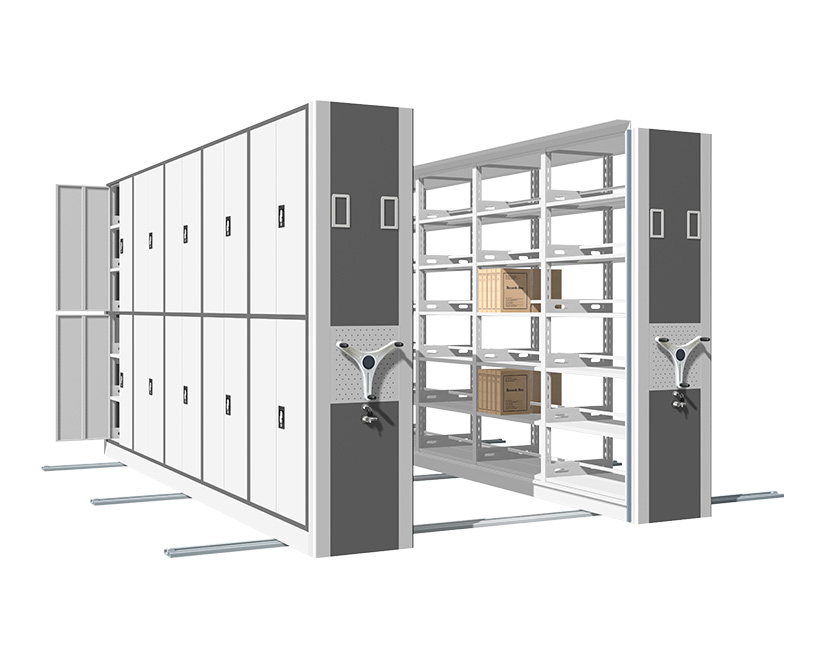

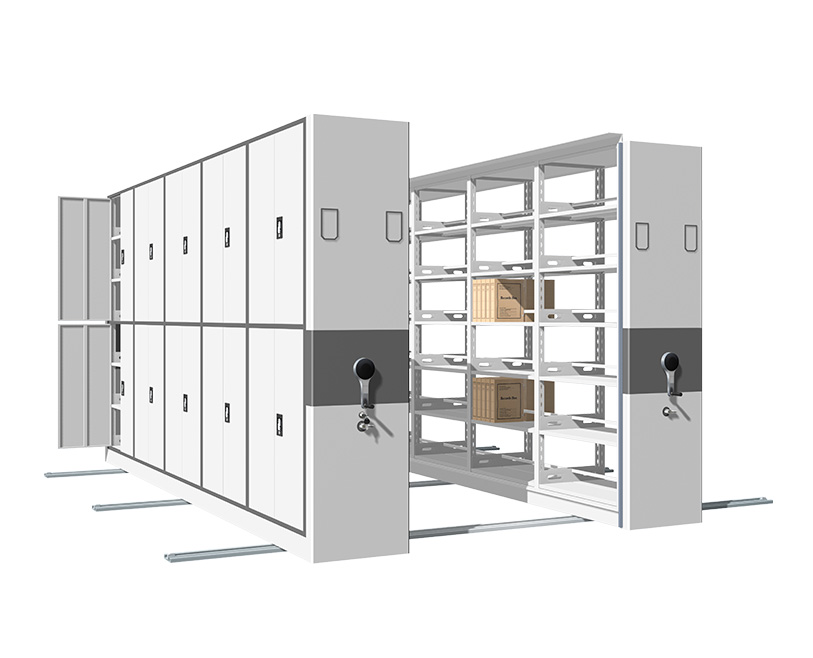

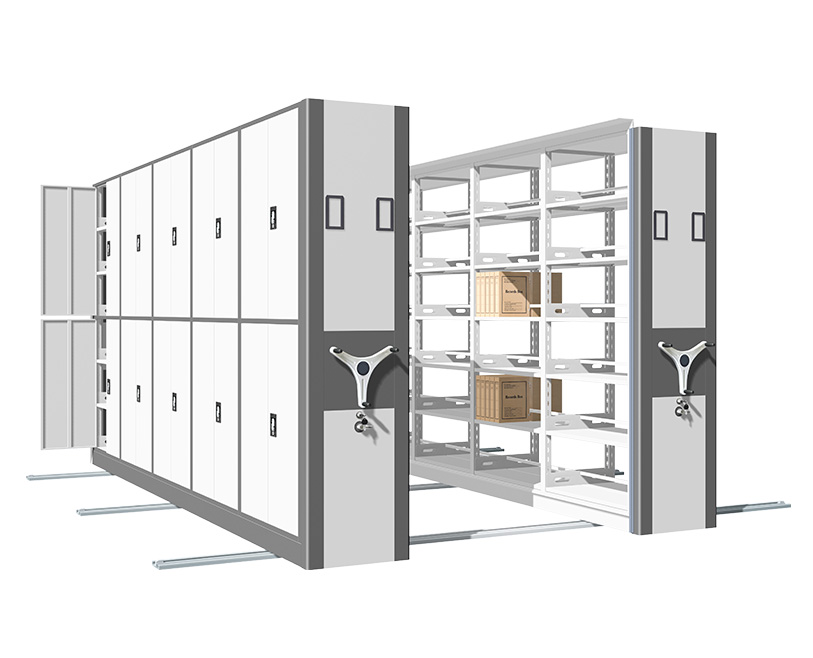

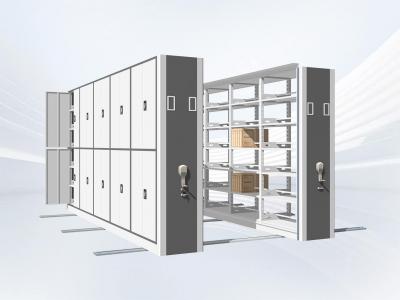

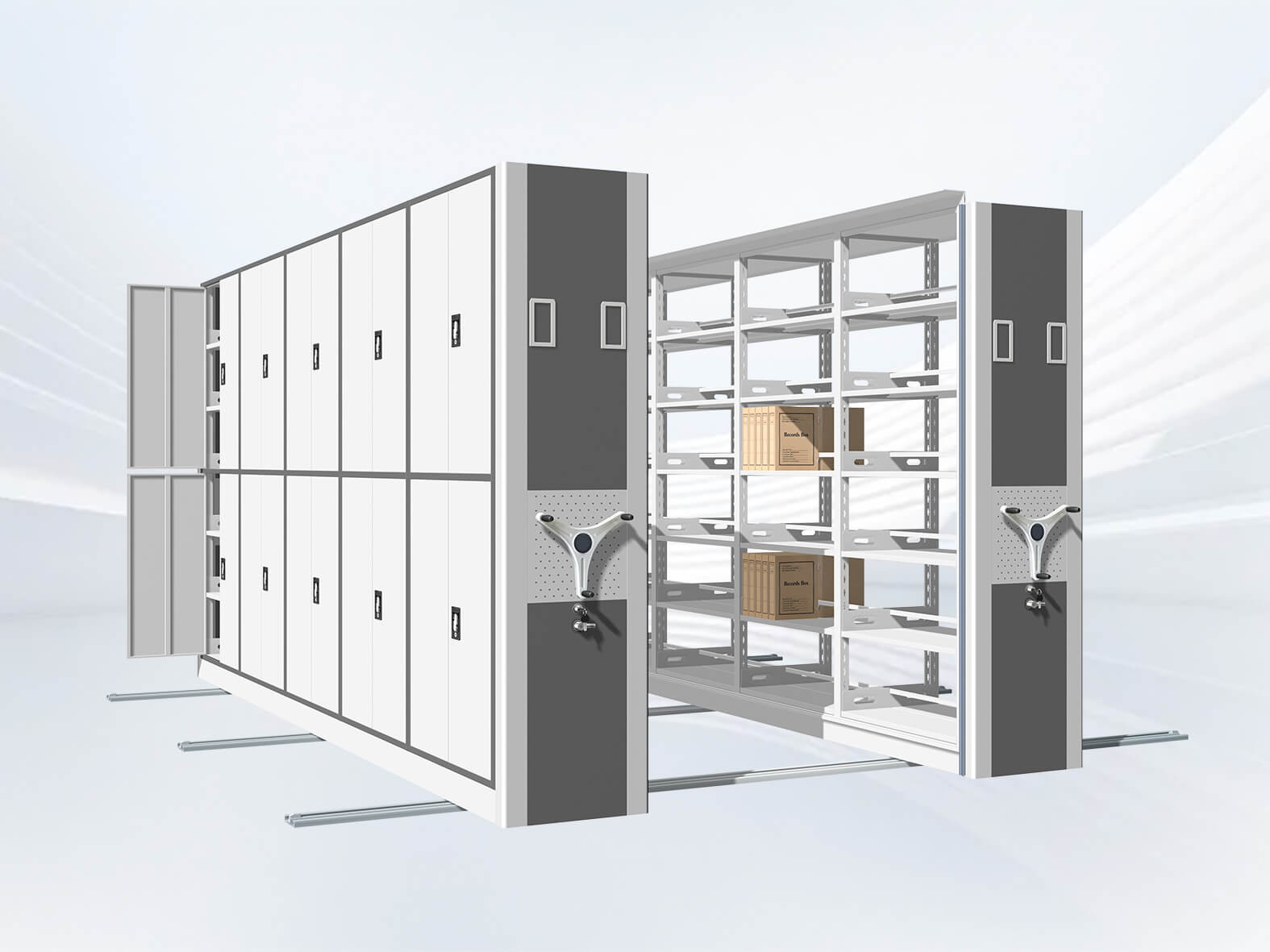

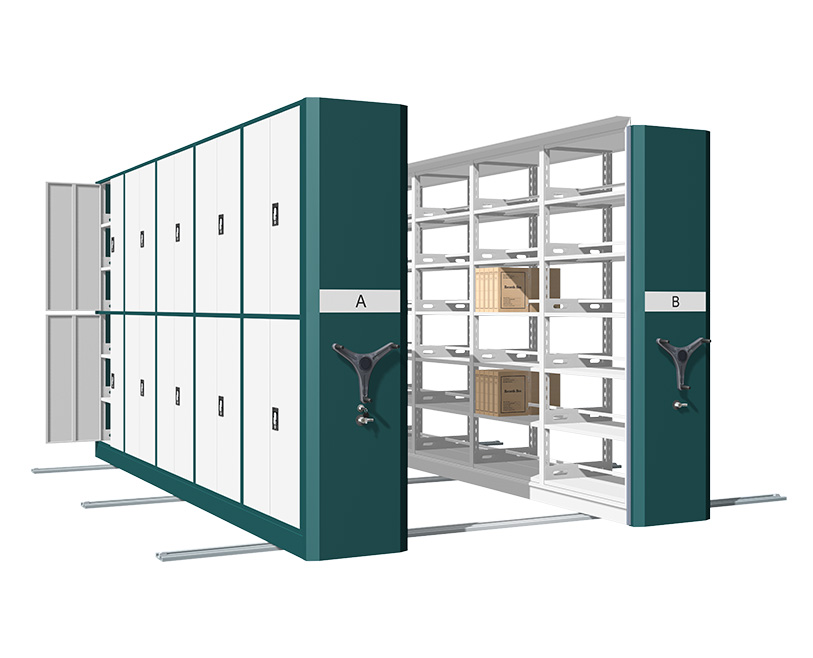

Manual mobile shelving is a high-density archive storage system driven by manual operation. Shelving units move along floor tracks to create or remove aisles as needed, significantly improving space utilization for document and file storage.
Brand:
HUADEItem NO.:
HYDM-M01Color:
Ral Color Optional,CustomizedMin order:
3PCS

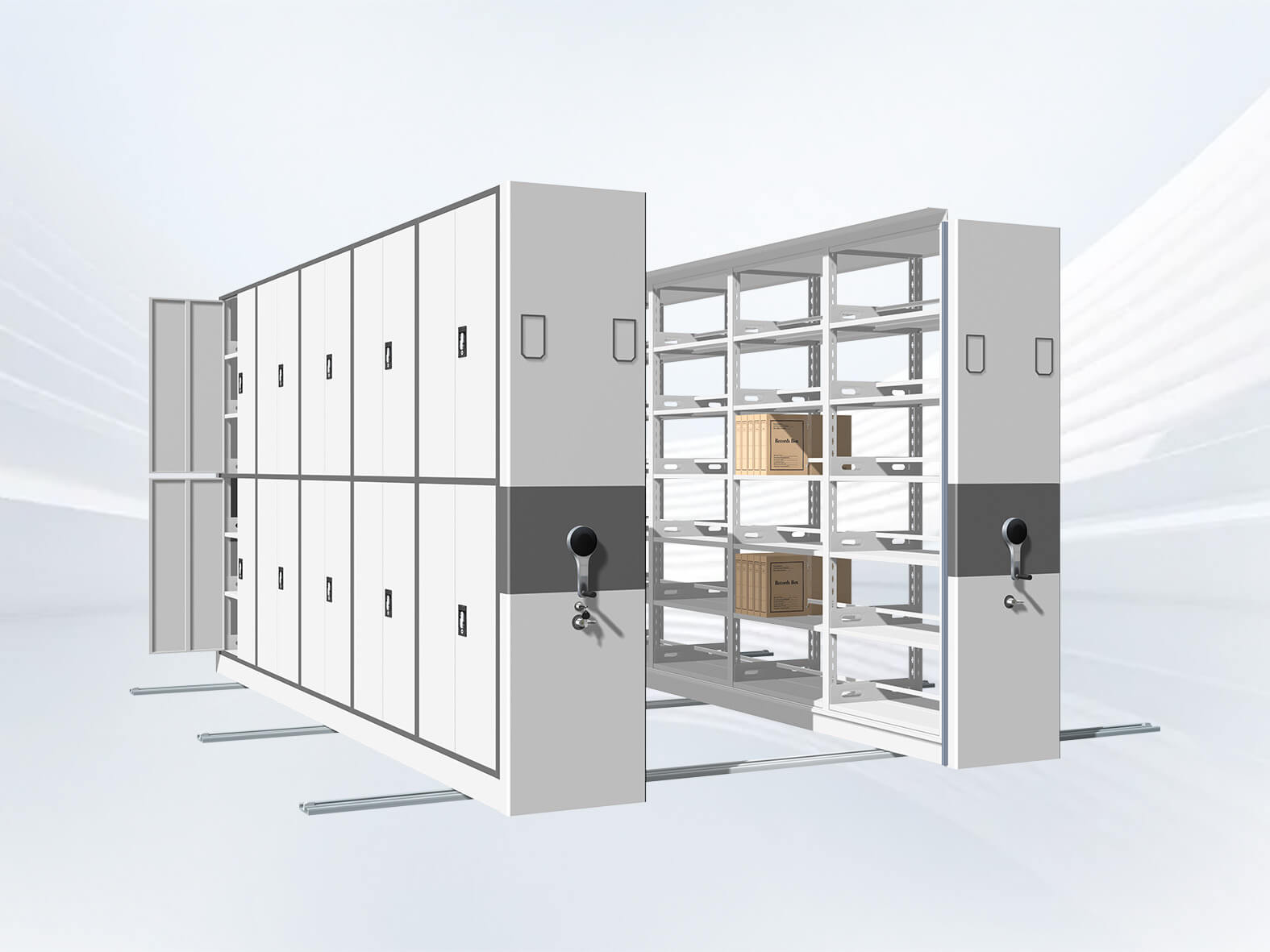

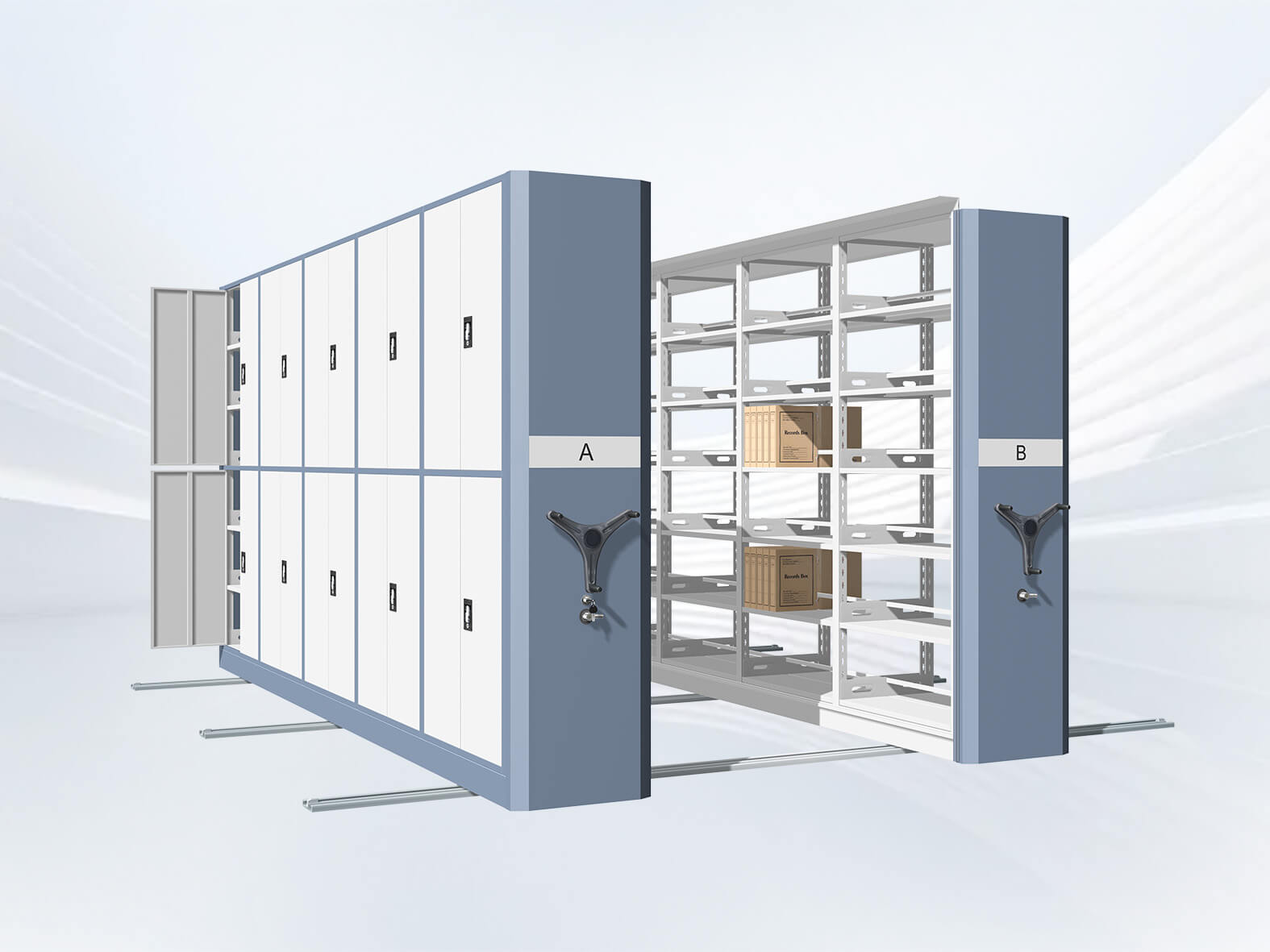

Hand crank mobile shelving, also known as manual mobile shelving, is a high-density archive storage system designed to maximize space utilization and improve document management efficiency. Each shelving unit is mounted on movable carriages that run smoothly along floor-mounted rails. By turning a hand crank, users can easily move the shelves to open an access aisle only where needed, eliminating fixed aisles and significantly reducing wasted floor space.
Compared with conventional static shelving, manual mobile shelving can save 30–50% of floor area while providing the same storage capacity. This makes it an ideal solution for environments with limited space such as archives, offices, libraries, and record centers.

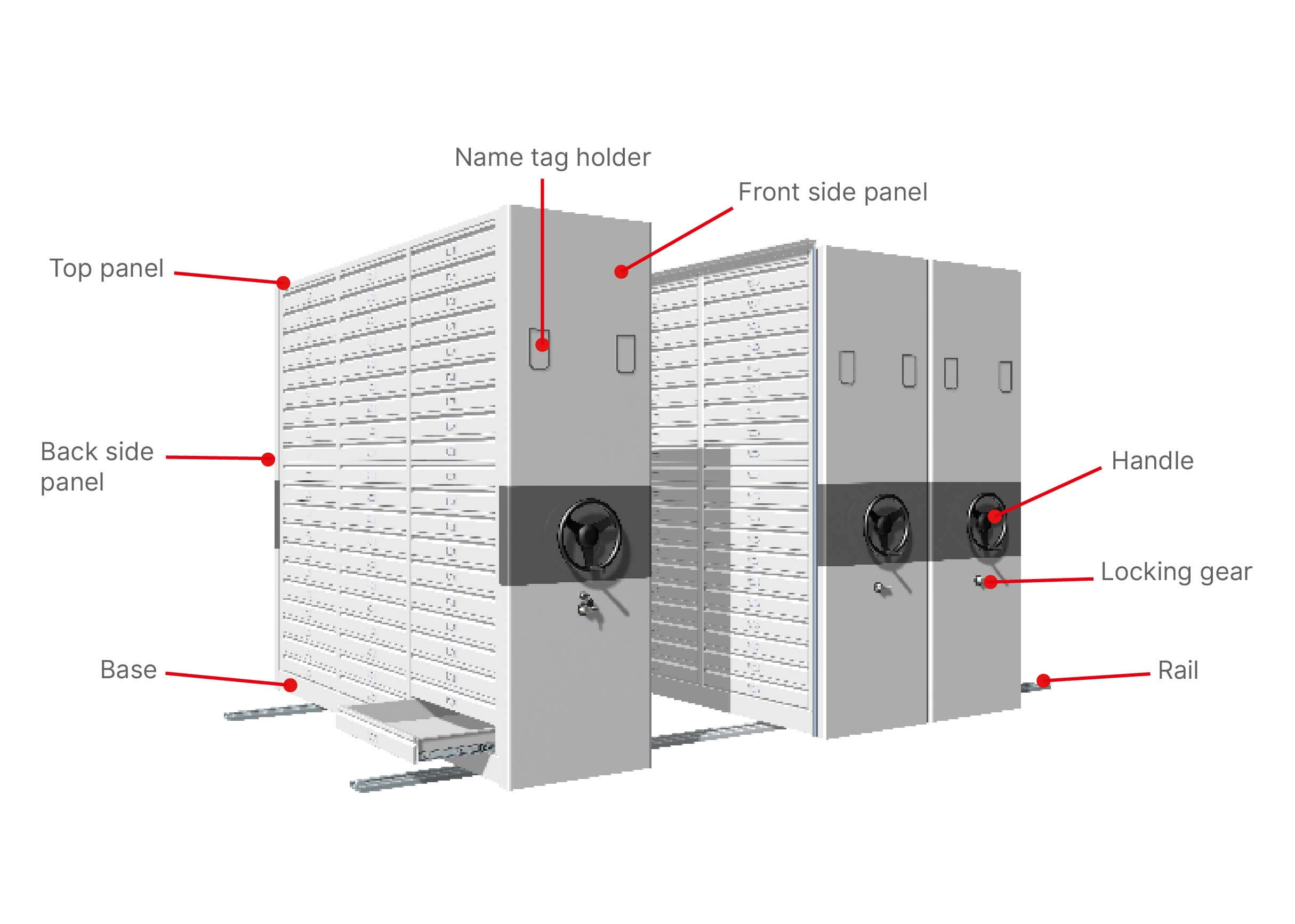

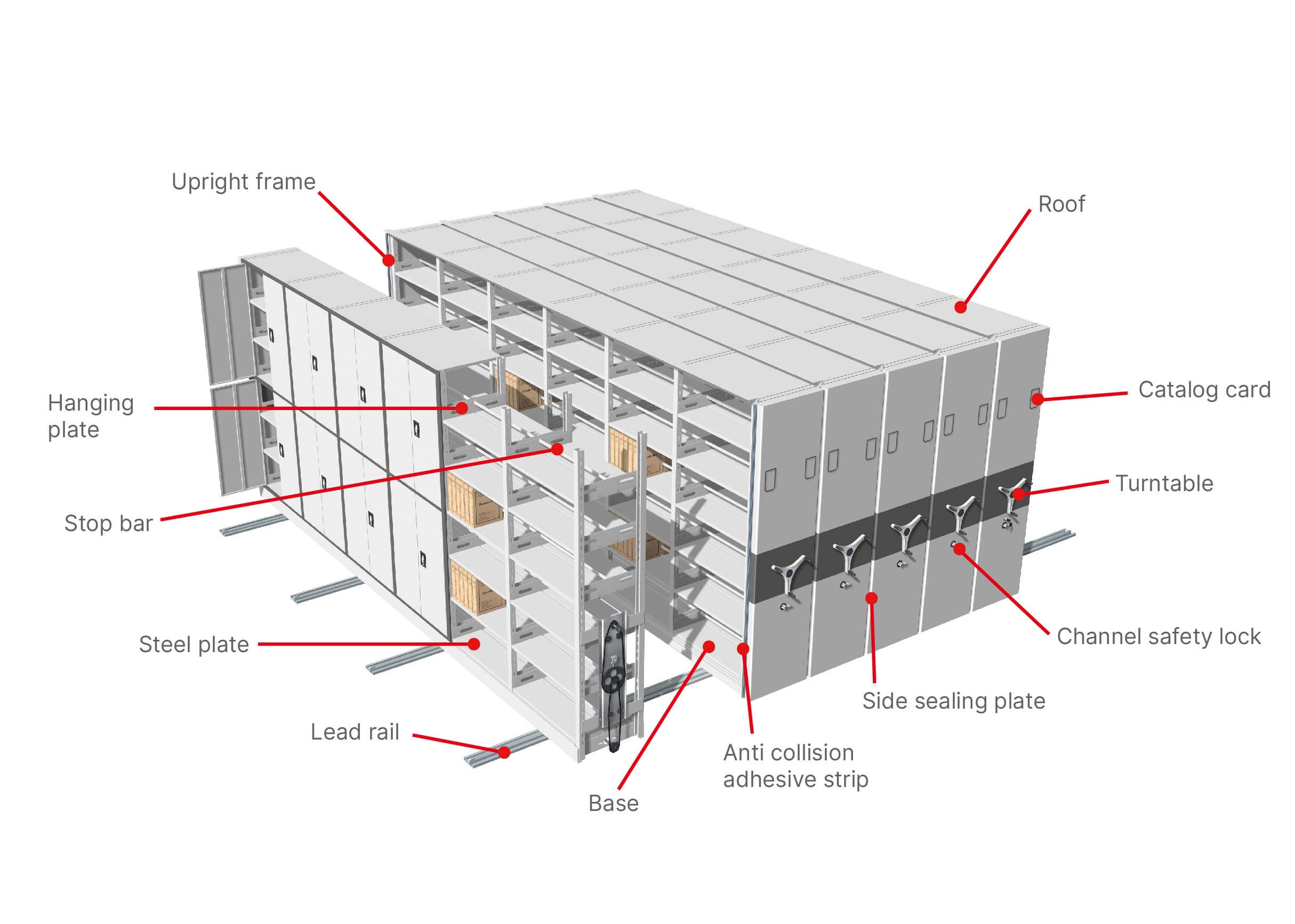

The mobile shelving system mainly consists of three parts: rails, shelving units, and base carriages. The floor-mounted rails guide the movement of the shelves, while the shelving structure includes uprights, panels, shelves, top covers, doors, and side panels for stable storage and organization.
The base carriages support and fix the shelving units, ensuring smooth and secure movement.The system is also equipped with a mechanical transmission mechanism, including rollers, drive shafts, and connecting tubes, as well as safety limit devices and locking systems to ensure stable operation and user safety.

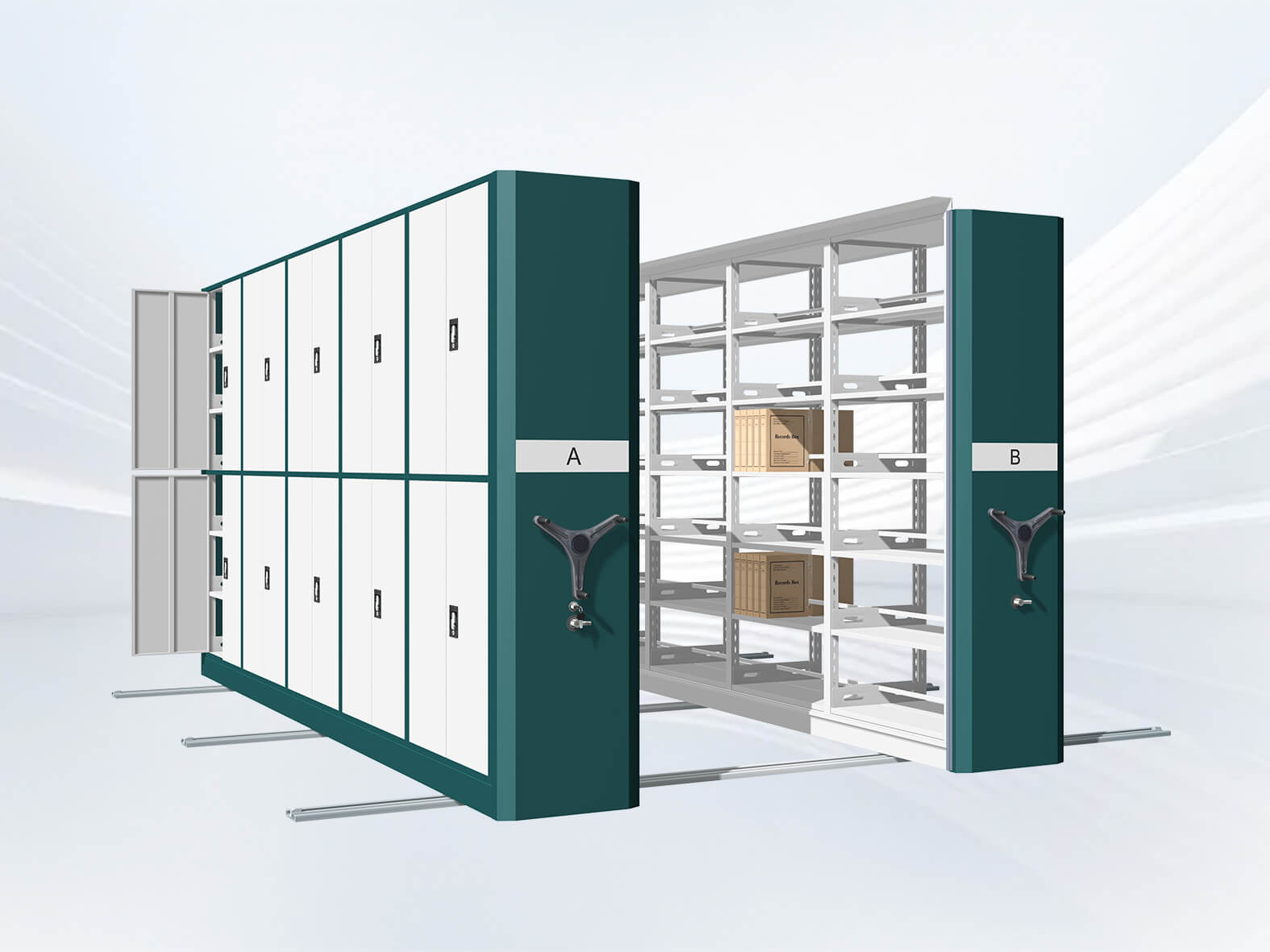

Our hand-cranked mobile shelving systems offer a comprehensive range of customizable options to meet your specific storage needs. You can fully tailor the shelf width, depth, and height, as well as the number of levels. We provide a wide selection of colors, including RAL color options, along with various side panel styles, handle types, and locking systems. Additionally, you can choose between fully open, semi-closed, or fully enclosed structures to create the ideal storage solution for your space.
| Item Name | High-density Mobile Shelving | Brand | HUAYIDE |
| Item No. | HYDM-M01 | Raw Material | High quality cold rolled steel |
| Raw Material Advantages | Strong bearing carriage, Waterproof and Corrosion resistant, Easy to clean, Scratch resistant | Surface treatment | Oil removal, rust cleaning, phosphorization, passivation, electrostatic powder coating |
| Structure | Knocked-Down Structure, easily Assembled and Cleaned | Color | White/green/blue /Ral Color Optional,Customized |
| Applications | Industry/Library /School /Office /Healthcare Storage/Education storage/Corporate file storage | Packing | Knocked-down in export multi-layer carton box with EPE foam |
| Delivery | 15-30 days | OEM&ODM | Acceptable |
| MOQ | 3pcs | Warranty Period | 5 years |
Shelves can be compacted tightly to minimize aisle space, maximizing storage density—ideal for archives, records rooms, and areas with limited space.
Hand crank operation allows smooth movement of shelving units, providing quick access to files without rearranging or removing shelves, improving work efficiency.

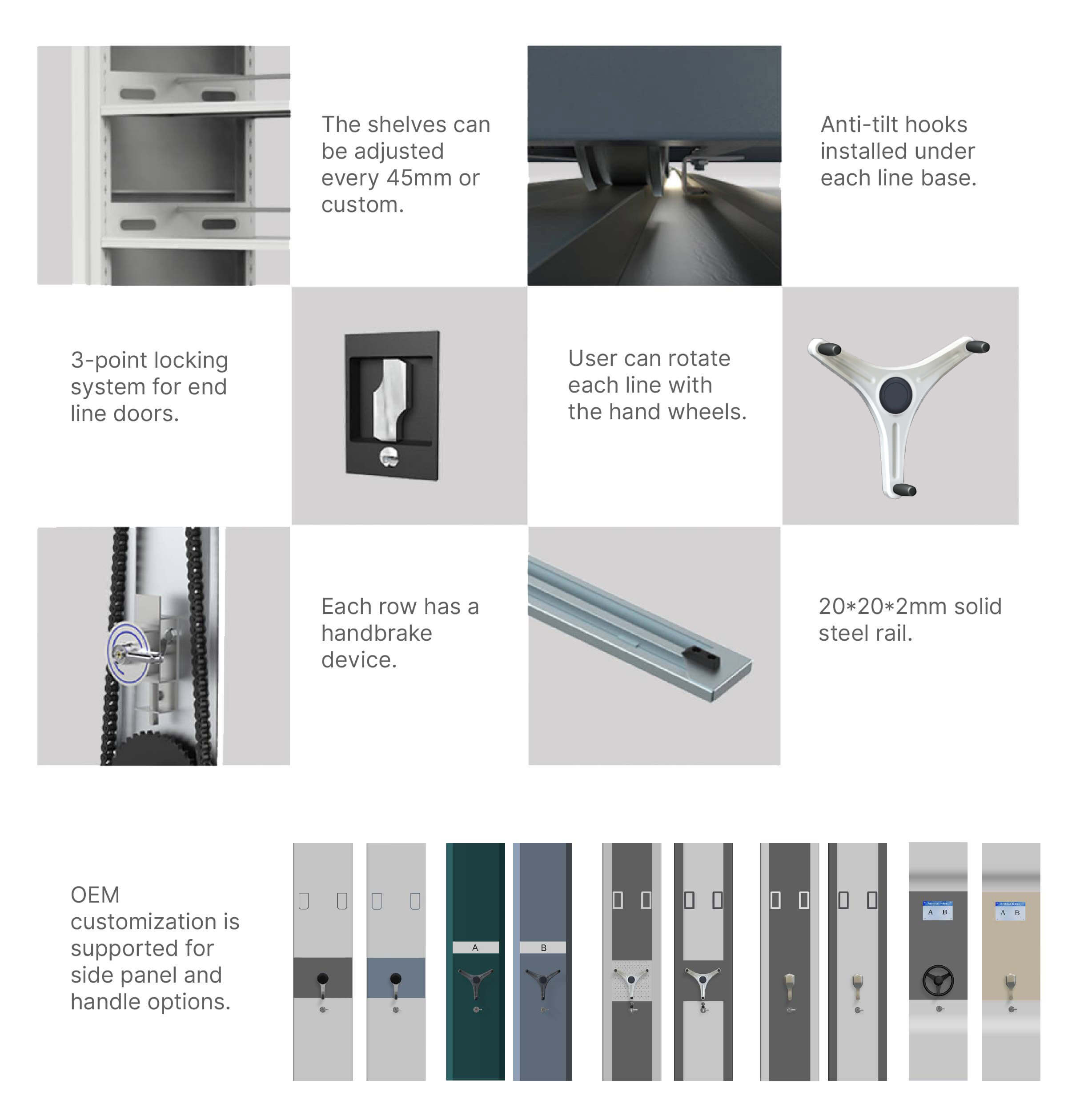

Equipped with multiple safety features such as brakes, anti-tip mechanisms, and central locks to prevent accidents and protect stored documents.
Shelving units can be tailored in size, levels, and height, with optional accessories like label holders or lighting, to meet diverse storage requirements.

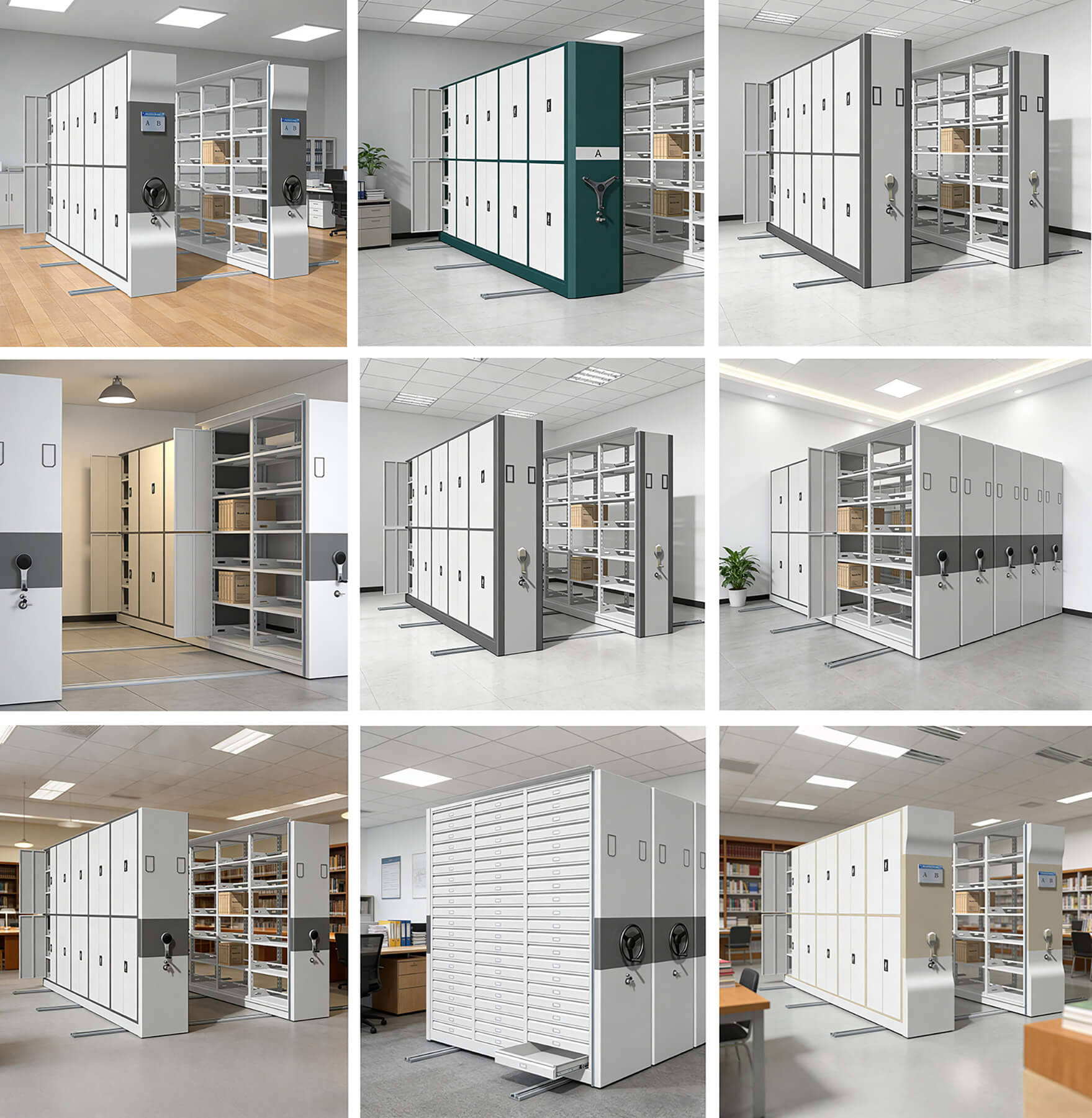

Manual Mobile Shelving is the optimal storage solution for a diverse range of environments, including archives, records rooms, libraries, hospitals, schools, financial institutions, and offices. It is specifically designed to securely and efficiently store files, documents, books, journals, medical records, and other vital materials, ensuring organized access to important items across professional settings.
|
What is high-density mobile storage? |
High-density mobile storage mounts shelving or cabinets on carriages that slide along floor tracks. By eliminating multiple fixed aisles, it reduces wasted space and can often double storage capacity within the same footprint. |
|
Does the high density mobile shelving system support customizaiton? |
Huayide supports the customization of high density mobile shelving. We can design compactor shelves to meet your storage needs according to the dimensions of your warehouse. We also provide standard size compactor shelves for your choice, the standard size is W900*D560*H2400mm. For standard size compactor shelves, we have a large stock, if you need to get an instant quote, contact our sales at wa@huadeasrs.com now. |
| How does mobile storage compare to static shelving? | Traditional shelving requires permanent aisles between each row. Mobile systems collapse those aisles until needed, allowing users to access one at a time. This typically saves 30–80% of space or allows 2× more storage in the same area. |
| What industries benefit from high-density mobile storage? | Offices, libraries, healthcare, law enforcement, archives, museums, athletic facilities, and warehouses all rely on mobile shelving to balance access, security, and space efficiency. |
| Are mobile storage system safe? | Yes. Modern systems include anti-tip mechanisms, photo sweeps, entry sensors, and emergency stops. Powered systems also feature soft-start and soft-stop technology for user safety. |

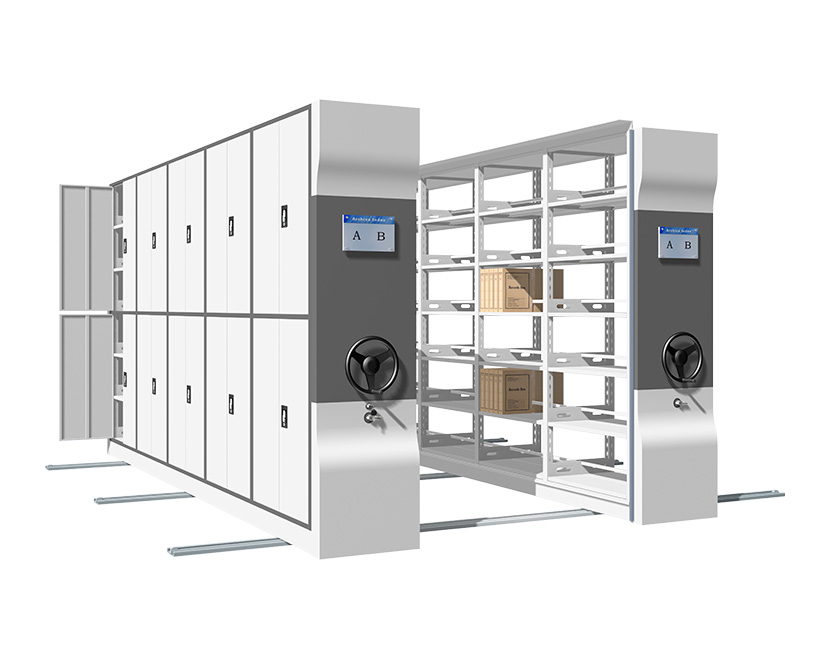

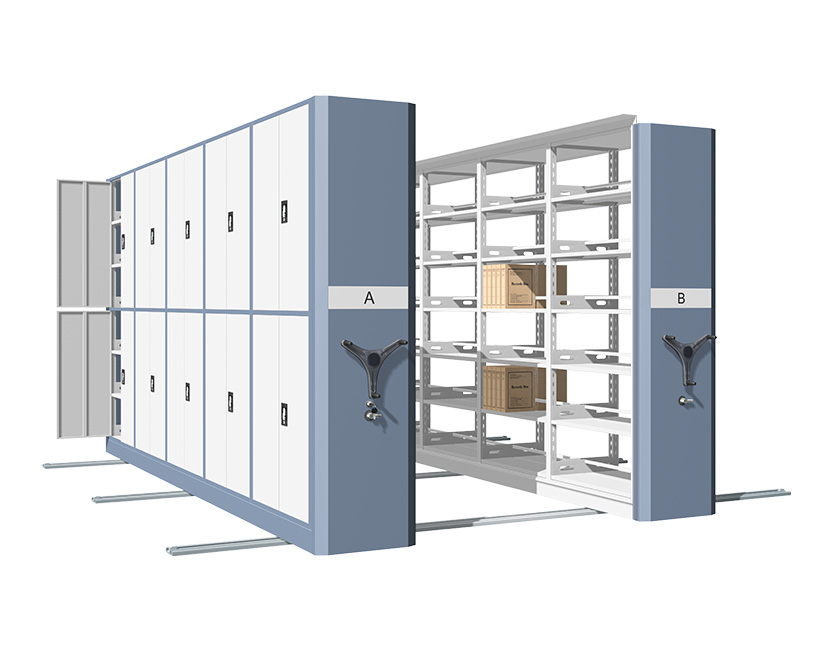

| What are the drive system options? | Systems are available in manual (push), mechanical-assist (hand-crank), and powered options. Mechanical assist fits most mid-size collections, while powered systems are best for large, heavy, or frequently accessed collections. |
| How quickly can mobile shelving be installed? | Small offices can be completed in just a few days. Larger facilities may require one to two weeks or more, depending on floor preparation, track installation, and carriage count. |
| What is the load capacity of high density mobile shelving system? | In order to maximize the use of storage space while facilitating manual access to files, high density mobile shelving is generally designed with 6 levels, and the single level load capacity of standard size high density mobile shelving is 80kg per level, with the total load capacity generally not exceeding 500kg. |
| How many types of high density mobile shelving system are there? |
a) According to the different operations can be divided into manual mobile shelving, electric mobile shelving, and intelligent mobile shelving. b) According to the different uses are generally divided into file mobile shelving, mobile library shelving, accounting mobile shelving, medical records mobile shelving, storage mobile shelving, etc. c) According to the different structures: fully open mobile shelving system, semi-closed mobile shelving system, fully enclosed mobile shelving system. |
| What is the Minimum Order Quantity of high density mobile shelving? |
20 sets. In fact, compactus shelving is a light duty rack, if the minimum quantity is too small, you need to ship them in bulk, which will easily damage the compacts shelving and the shipping cost will be more expensive, which is not very cost effective for you. However, suppose you have a full container in Guangzhou or Shenzhen and still have space available after loading from other Chinese suppliers. In that case, we can arrange delivery for you, even if it is only a few sets, as we have a large stock of standard sizes. |
