Electric Pallet Monorail System with RGV in loop transfer pallets

Electric Pallet Monorail System with Rail Guided Vehicle (RGV) in loop transfer pallets

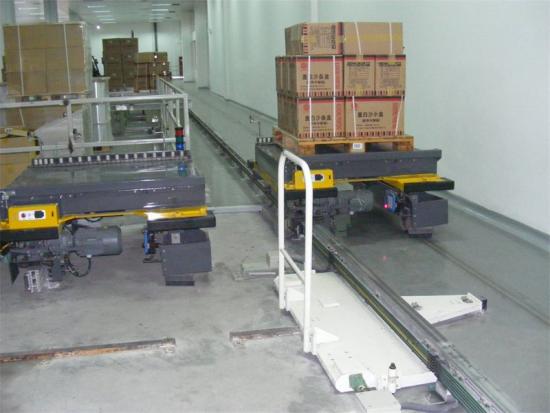

Rail Guided Vehicle (RGV), also called Sorting Transfer Vehicle (STV) or Shuttle Loop System (SLS), is a complex automated unit load handling system. The system consists of self-propelled, self-steering vehicle(s) moving on a circuit aluminum rail system, by setting up multiple pick-up and drop-up stations, manufacturing,storage and picking processes can be performed efficiently and accurately.

It can be used to move unit loads with various sizes, whether in boxes/containers or pallets, load range from 30kg to 3tons. Its aluminum rails can be in the form of a loop or in a straight line. The transfer mechanism can be roller-based or chain-based.

Through vehicle-to-vehicle communication, the vehicles are maintained optimal distance from each other, preventing collisions and maximum inbound & outbound throughput.

HUAYIDE RGV main advantages over other conveyor systems are reliability and redundancy (if one vehicle breaks down, the system can carry on working), high speeds, high rates and flexibility for future extensions.

Contact us today to learn more!

Facts:

• Abundant product series includes single-track, double track, straight line, loop type, bypass etc. Mature structure design all meet national standard, which is safe and reliable

• Adopt closed-loop vector drive technology to realize high-speed and stable operation and high throughput

• Adopt bus technology and PLC control technology

• Self-developed advanced upper scheduling management system enables multiple task allocation be performed simultaneously

• Vehicle-to-vehicle communication by infrared optical communication or RCoax communication

• Busbar or contact-less power supply

• The positioning system adopts laser ranging, bar code address recognition and other positioning technologies

Variations:

Single Rail RGV in loop



Single Rail RGV in loop

Load: ≤1000kg

Vxmax: 180 m/min

Vymax: 24m/min

Single Rail RGV with bypass



Load: ≤500kg

Vxmax: 90 m/min

Vymax: 16 m/min

Double Rail RGV in straight line



Load: ≤2000kg

Vxmax: 180 m/min

Vymax: 24 m/min



Double Rail RGV in Loop



Load: ≤1200kg

Vxmax: 160 m/min

Vymax: 24 m/min

Add-on::

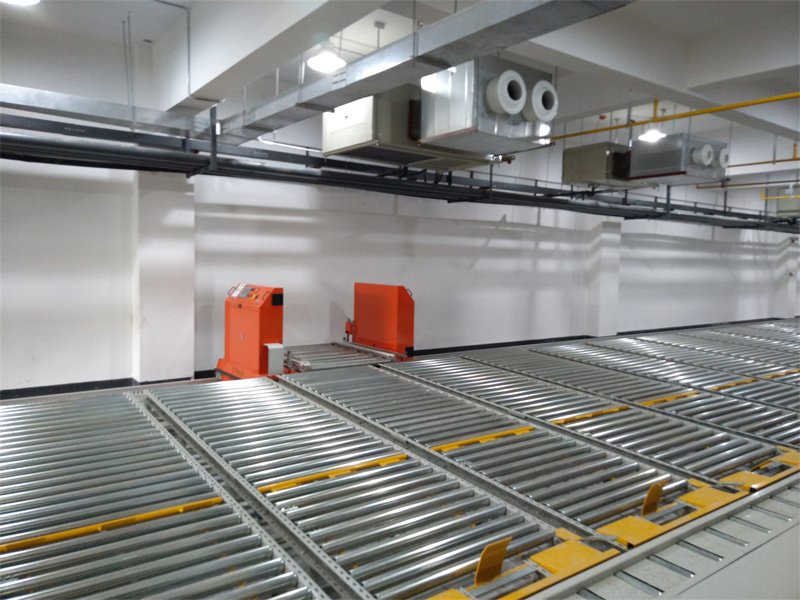

Gravity Buffer Conveyor



Gravity conveyors buffer shipping pallets in First-In Last-Out (FILO) orders ready for prompt loading to truck.

Maintenance Station

Maintenance station enable to keep the system running while performing maintenance on a vehicle.
