What Is Four-Way Shuttle Racking System

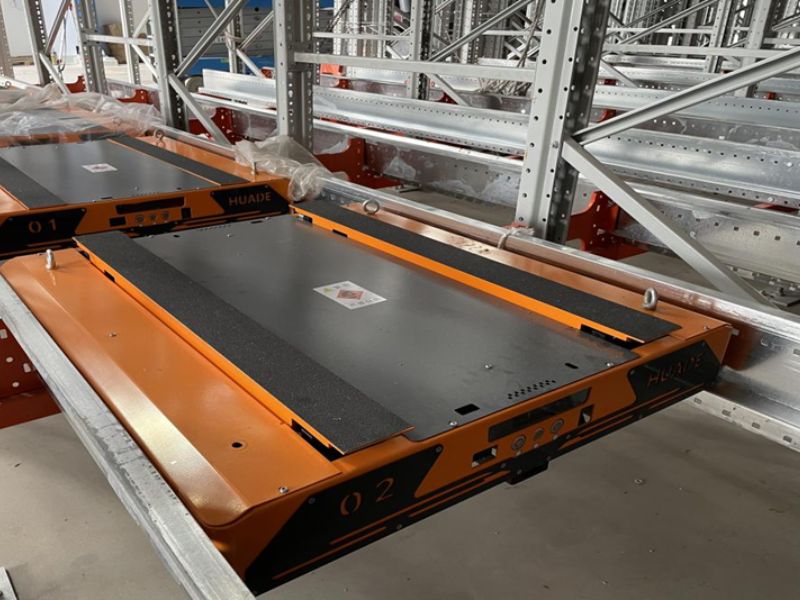

Four-Way Shuttle Racking System is a type of automated storage system designed to optimize warehouse space and increase the efficiency of material handling. This system involves motorized shuttles that can move both horizontally and vertically within the racking structure, allowing goods to be stored and retrieved from any direction.

Technical Features and Operational Mechanism

Multi-Dimensional Mobility

Unlike traditional two-way shuttles (which only traverse in a straight line) or stacker cranes (which operate in a single aisle), four-way shuttles can change lanes freely on the horizontal plane. They can cover the entire storage level without the need for a forklift or manual intervention.

Travel-Reliant Advantages

Although they require fixed rails, the rail design enables millimeter-level positioning accuracy, faster movement speeds (up to 1.5 meters per second), and lower control complexity than AGVs, making them suitable for high-precision warehousing scenarios.

Automatic Energy Management

The system monitors the battery level in real time. When idle or low on power, the shuttle autonomously returns to the charging area for recharging, ensuring continuous operation.

Core System Components

‌

Hardware Configuration‌

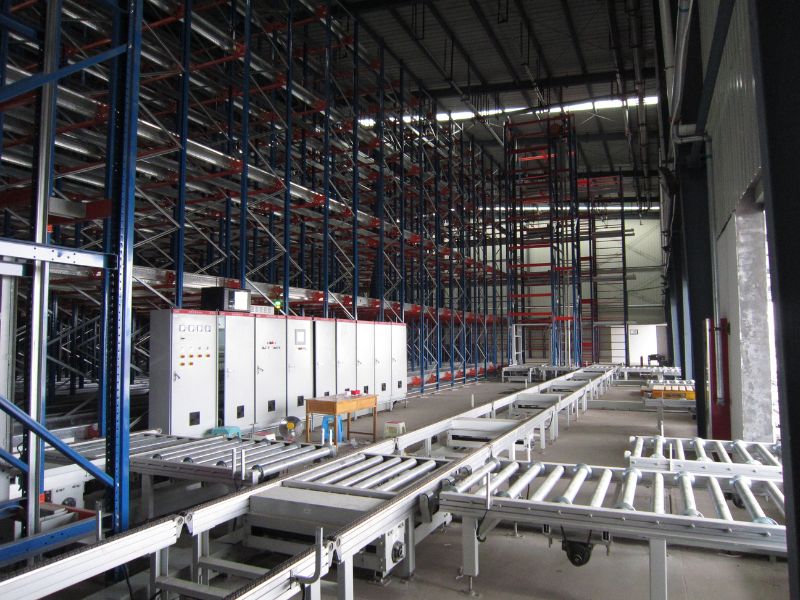

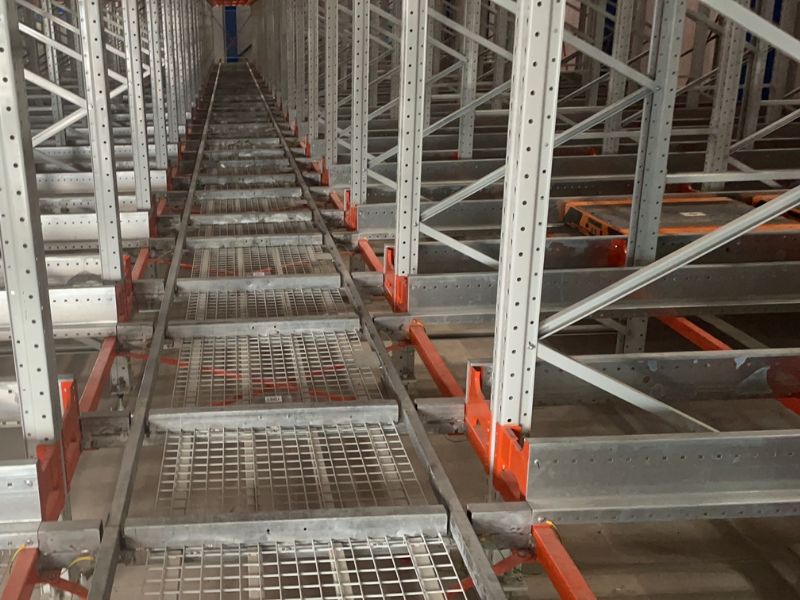

Includes the four-way shuttle, multi-level rack rail network, vertical lift (for level change), charging station, and dispatch terminal.

‌Software Dependencies‌

Must be integrated with the WMS/WCS system to optimize route planning, task allocation, and traffic management through algorithms. Manual remote control is not possible.

Industry Adaptability and Breakthrough Value

Solving Traditional System Bottlenecks

This four way pallet shuttle racking system breaks the single-aisle, single-device limitation of stacker cranes. By flexibly adjusting the number of shuttles to match operational flow, it avoids idle equipment. It also eliminates the structural complexity and stability risks of the parent-child system.

High-Density Storage and Flexible Expansion

Supports shelf heights up to 22 meters, improving space utilization by over 30%. The system can expand the number of rails and shuttles on demand to accommodate business growth.

Precise Industry Empowerment

Pharmaceutical Cold Chain: Combined with temperature control systems, it achieves environmental isolation and meets drug traceability requirements (such as GSP certification).

Automotive Manufacturing: Customized carriers accommodate varying component sizes and connect with AGVs for precise supply to production lines.

E-commerce Logistics: Responding to order surges, intelligent scheduling reduces sorting times to just hours.
