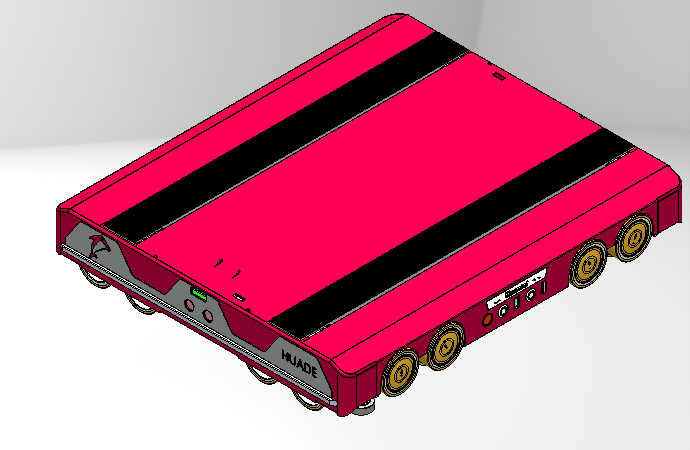

Although there are many mature solutions for high-density, multi-depth pallet warehouse storing, like Radio Shuttle System, Stacker Crane plus Satellite System, Mother & Baby Shuttle (satellite) System, but space are still left for more specific market and industries. Since 2016, HUADE team had input research and development on Four Way Pallet Shuttle for exploring more flexibility and further expansion in fully automatic pallet storing and retrieval system. 8 years past, we are proud to say that our four way shuttle had been iteratively updated to the third generation, which is faster, thinner and more accurate.
HUADE Four Way Pallet Shuttle Specification:
| ITEM | Shuttle Body (L*W*H) | Pallet Dimension |
| Standard Shuttle Dimension | 1100L*980W*150Hmm | 1200W*1000D |
| 1200L*980W*150Hmm | 1200W*1100D | |
| 1300L*980W*150Hmm | 1200W*1200W | |
| Self Weight | 450kg | |
| Load Capacity | 1000kg | |
| Lifting Distance | 40mm, ≤5s | |
| Working Temperature | 0-40℃ | |
| Communication Mode | Wireless AP | |
| Power Supply | Lithium battery, 48V36/45/60AH | |
| Driving Speed (empty) | 1.8m/s | |
| Driving Speed (load) | 1.8m/s | |
| Accelercation | 0.3 | |
| Battery Service Life | 5000 charging times | |
| Addressing | Laser, ±2mm |
