Four Way Pallet Shuttle
HUADE’s four way pallet shuttle moves pallets in four directions without turning, maximizing storage space and improving efficiency. We offer customized models to meet different needs, including European-standard, explosion-proof, ultra-thin, and heavy-duty shuttles.
Fast driving and direction changes help improve operating efficiency and speed up warehouse operations.
Precise movement and positioning ensure reliable performance and stable operation.
A compact, slim body reduces space requirements and maximizes warehouse storage capacity.
Flexible and High-Density Four Way Pallet Shuttle

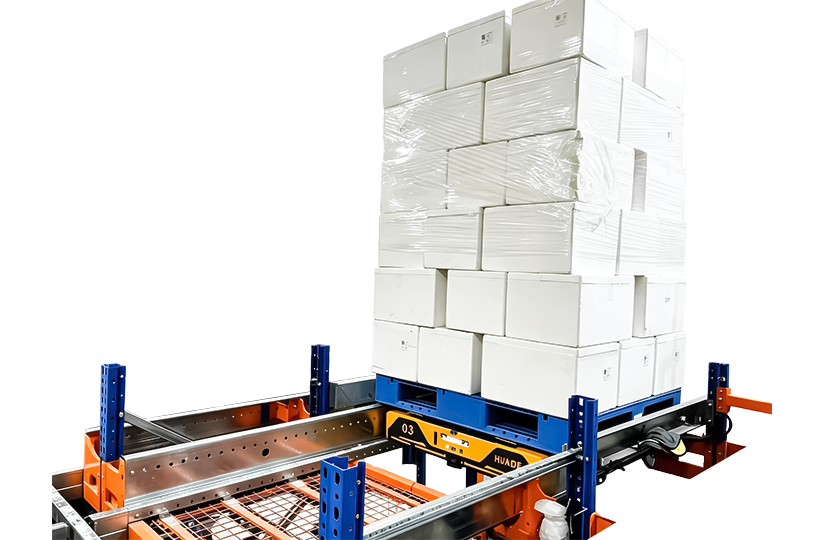

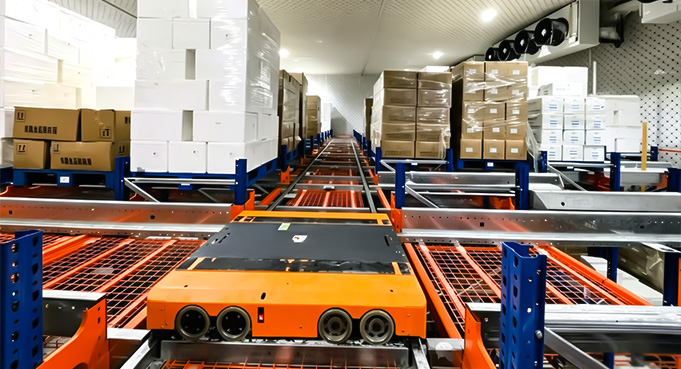

A four way pallet shuttle is an automated storage device designed to move pallets horizontally and vertically along rack tracks. Unlike traditional shuttles that move in limited directions, it can switch between longitudinal and lateral travel without turning, allowing flexible pallet handling within the rack structure.
With adjustable vehicle quantities and a modular design, HUADE’s four way pallet shuttle helps businesses achieve high-density storage, adapt to changing inbound and outbound demands, and make better use of available warehouse space.
Heavy-Duty Four Way Pallet Shuttle

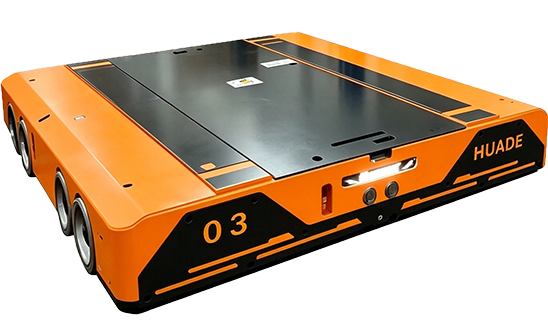

HUADE’s heavy-duty four way pallet shuttle is designed for demanding pallet storage and retrieval applications. With a load capacity of up to 2.5 tons, it handles heavy raw materials and finished goods with stable and flexible operation.
Key Advantages
- High-Density Storage: Increases storage capacity by 30%–50% while maximizing space utilization.
- Flexible & Scalable: Add shuttles as needed, adapt to different warehouse layouts, and support phased implementation.
- Reliable Operation: A single shuttle failure won’t stop the entire aisle, ensuring continuous operation.
Four Way Pallet Shuttle Specifications
| Model No. | four Way Pallet Shuttle | Type | Shuttle Robot |
|---|---|---|---|
|
Pallet Size |
1*1.2 or Customized |
Warehouse Type |
Existing Warehouse or New Build Warehouse |
|
Type of Package |
Carton, Plastics Wrapping or Non Package |
Type of Storage Medium |
Pallet, Metal Cage or Others |
|
Shuttle Self Weight |
280-290kg |
Sub-Rail Height |
170mm |
|
Lifting Type
|
Mechanical |
Driving Motor Power |
1000W |
|
Transport Package |
Standard Export Package |
Specification |
Q235 STEEL |
|
Trademark |
Huade |
Origin |
China |
|
HS Code |
8428902000 |
Production Capacity |
1200 Units/Year |
Four Way Pallet Shuttle AS/RS Solutions

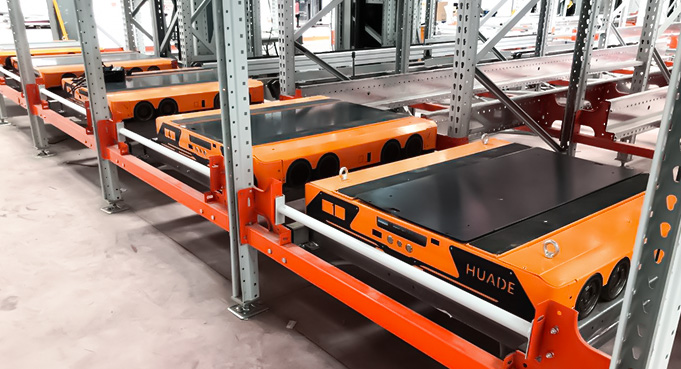

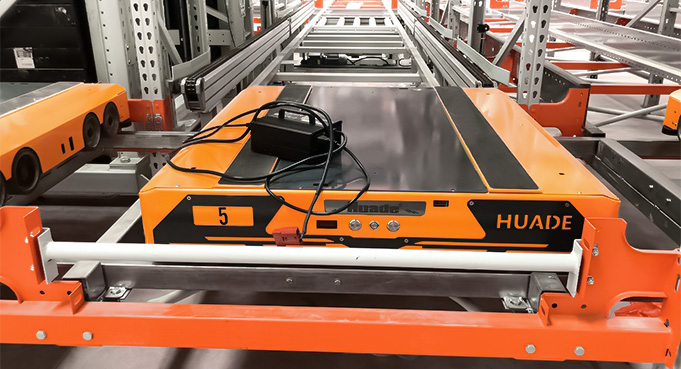

A four way pallet shuttle works with racking, lifts, conveyors, and warehouse software to create an automated high-density storage solution. Each component works together to handle pallet storage, retrieval, and transportation with greater flexibility and efficiency.
Why Choose HUADE Four Way Pallet Shuttle?
From standard applications to specialized warehouse environments, HUADE develops four way pallet shuttles to meet different storage and operational needs. With years of experience in shuttle technology, we offer customized models for different pallet sizes, load requirements, and working conditions.
