Pallet Flow Rack & FIFO Gravity Racking System
HUADE Pallet Flow Rack system improves FIFO inventory management and warehouse space utilization with high-density gravity flow racking solutions for food, beverage, cold storage, pharmaceutical, and logistics warehouses.
Pallet Flow Rack Overview
What is Pallet Flow Racking?
Pallet Flow Rack, also known as Gravity Flow Rack or FIFO Pallet Racking, is a high-density storage rack system designed for fast-moving palletized goods. The system uses inclined roller lanes or tracks installed at a 3–5° angle, allowing pallets to automatically move from the loading side to the picking side under gravity, achieving efficient First-In, First-Out (FIFO) inventory management.

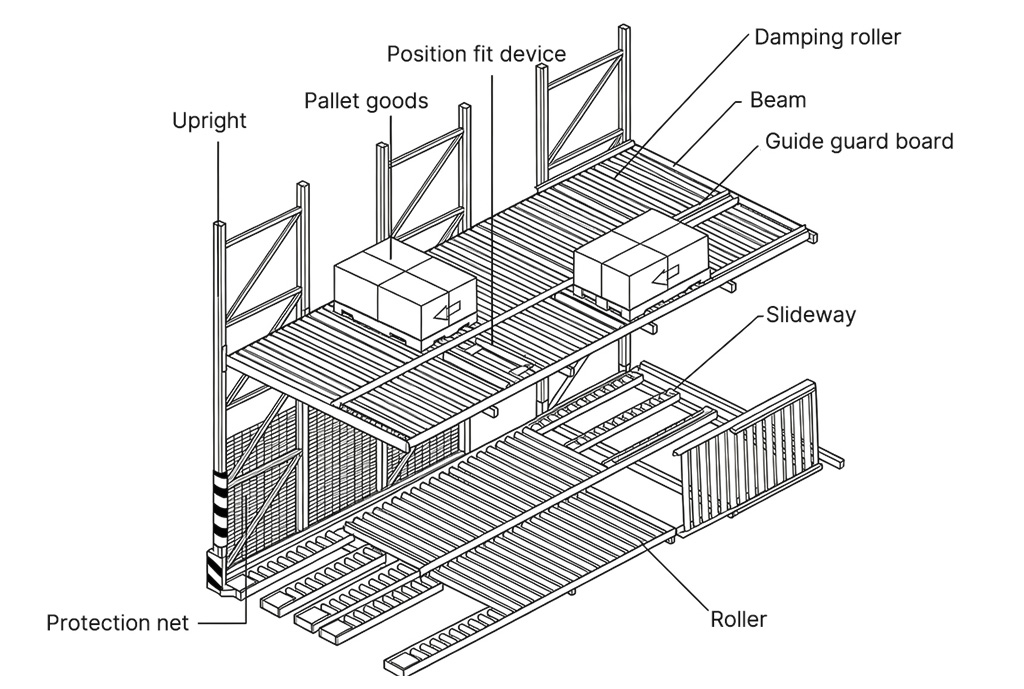

Structure of Pallet Flow Racking
The Pallet Flow Rack system is composed of two main parts:
- Steel racking structure made of high-strength cold-formed steel for stable load-bearing performance
- Gravity roller conveyor lanes designed with a 3–5° incline for automatic pallet movement
Key components include:
- Heavy-duty steel uprights and beams
- Gravity rollers for smooth pallet flow
- Damping rollers to control sliding speed
- Guide rails to maintain pallet alignment

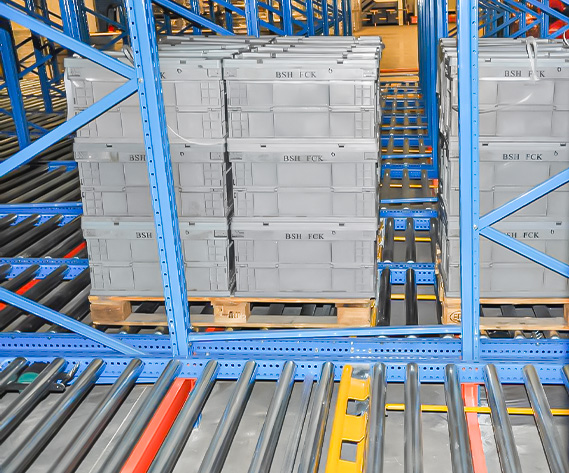

Working Principle of Pallet Flow Racking
The gravity flow racking system operates based on the FIFO principle:
- Pallets are loaded from the higher end of the lane
- Gravity moves pallets automatically toward the picking side
- The first pallet is retrieved at the discharge end
- Remaining pallets move forward automatically
A braking and separation mechanism ensures:
- Controlled pallet stopping
- Safe single-pallet picking
- Continuous FIFO inventory rotation
This process eliminates forklift entry into storage lanes and improves warehouse efficiency and operational safety.
Key Benefits of Pallet Flow Racking
Strict FIFO Inventory Management
Pallet Flow Rack systems automatically follow the First-In, First-Out (FIFO) principle, ensuring older inventory is picked first. This significantly reduces product expiration, inventory buildup, and waste, making it ideal for food manufacturing, beverage warehousing, pharmaceutical storage, and cold storage applications.
High-Density Storage With Maximum Space Utilization
Compared with traditional pallet racking, pallet flow racking eliminates multiple forklift aisles and increases storage density by up to 50%. Deep lane storage design allows warehouses to store more pallets within the same floor area while improving overall warehouse space utilization.
Improved Warehouse Throughput And Picking Efficiency
Because loading and picking are separated on opposite sides of the rack, forklift traffic congestion is greatly reduced. This improves warehouse throughput, shortens picking time, and creates a smoother material handling workflow during peak operations.
Lower Labor And Operating Costs
Gravity Flow Rack systems operate entirely through gravity-driven pallet movement without electrical power consumption. Reduced forklift travel and simplified picking operations help warehouses lower labor costs, energy consumption, and long-term operating expenses.
Enhanced Operational Safety
The system is equipped with speed controllers, brake rollers, separators, and buffer devices to ensure smooth pallet flow and controlled sliding speed. This reduces the risk of pallet collisions, cargo damage, and forklift accidents inside storage aisles.
Flexible And Customizable Storage Design
HUADE can customize lane depth, roller spacing, rack height, load capacity, and pallet compatibility according to different warehouse layouts and operational requirements. The system supports wooden pallets, plastic pallets, and metal pallets in various sizes.
Ideal For High Turnover Inventory Storage
Pallet Flow Racking is especially suitable for fast-moving inventory and high-throughput warehouse environments. It is widely used in logistics distribution centers, food and beverage warehouses, pharmaceutical facilities, and automated warehouse systems requiring efficient FIFO inventory rotation.
Compatible With Automated Warehouse Systems
Dynamic pallet flow systems can be integrated with Warehouse Management Systems (WMS), Warehouse Control Systems (WCS), stacker cranes, conveyors, and automated material handling equipment to create a more intelligent warehouse operation.
Real-time System Design options for Different Warehouses

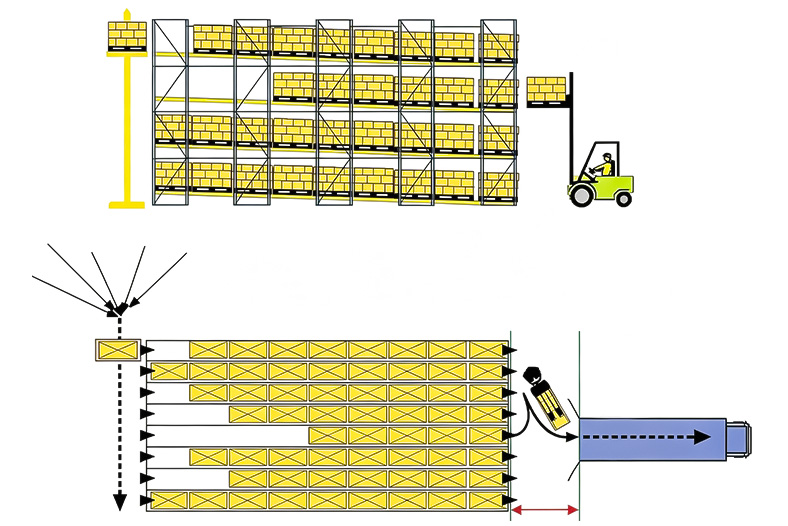

Shipping Area
Rapid loading; each Pallet Flow Rack aisle can accommodate truck loading capacity, enabling efficient outbound operations and improving warehouse throughput.

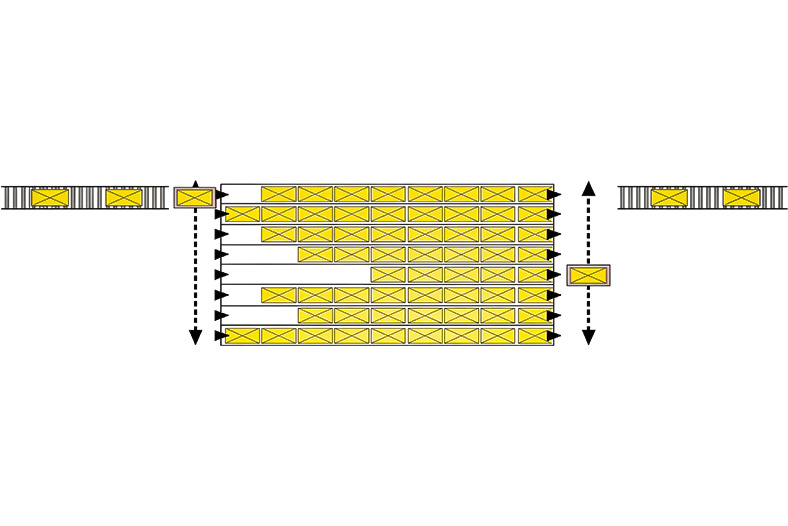

Buffer Storage Area
The dynamic gravity flow racking system is an ideal solution for short-term pallet buffer storage. Its compact, multi-level design improves warehouse space utilization and enables smooth FIFO pallet flow.

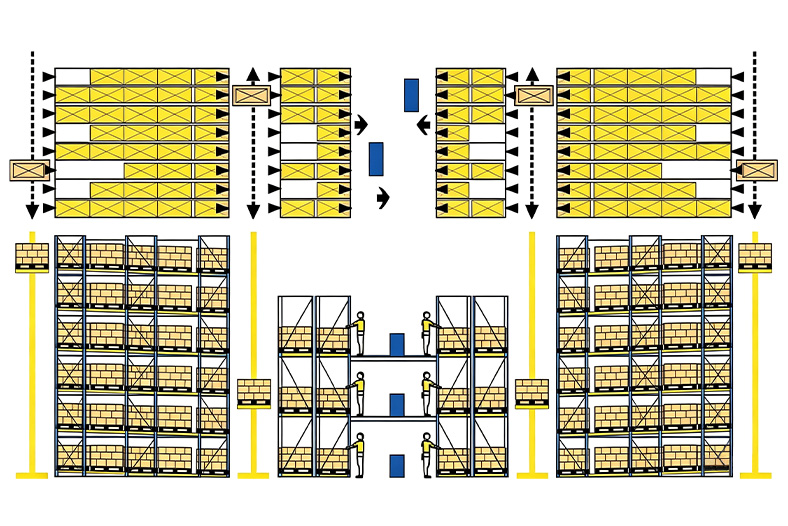

Picking Area
No potential conflicts occur between pallet loading equipment and picking personnel, ensuring picker safety. Picking operations can be carried out simultaneously on both sides of the aisle. Stacker cranes will automatically replenish pallets to the delivery aisle, improving warehouse picking efficiency and overall material handling workflow.

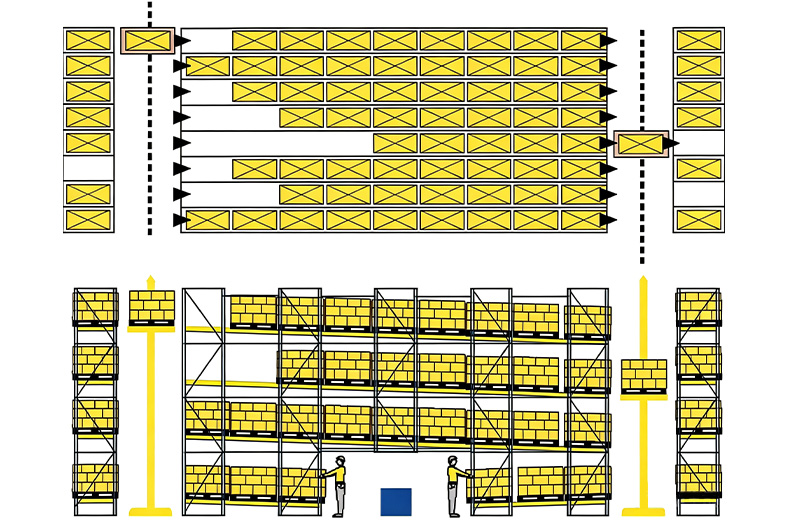

Multi-Level Dynamic Storage Area
Storage and distribution can be carried out across multiple floors and aisles. The combination of manual picking and automated replenishment supports efficient FIFO inventory management and high-density pallet storage performance.
Is Pallet Flow Racking Right For Your Warehouse?
Pallet Flow Rack systems are not suitable for every warehouse environment. They are specifically designed for high-density FIFO storage applications with fast inventory turnover and large quantities of palletized goods. You can evaluate your warehouse suitability through the following key factors.
Is Your Inventory Suitable For FIFO Storage?
Pallet Flow Racking works best for warehouses handling fast-moving inventory with strict FIFO inventory management requirements.
Ideal applications include:
- Food manufacturing and beverage warehouses
- Pharmaceutical and medical storage
- Cold storage and deep freeze warehouses
- Logistics distribution centers
- Consumer goods and retail distribution
If your products have expiration dates, batch control requirements, or frequent inventory rotation, a FIFO pallet racking system can significantly improve inventory accuracy and operational efficiency.
Gravity Flow Rack systems are most effective when each SKU can fill one or multiple storage lanes.Recommended conditions:
- Fewer SKU varieties with larger inventory volume
- High pallet throughput and frequent inbound/outbound operations
- Continuous replenishment and picking activities
If your warehouse stores many SKU types with only a few pallets per SKU, traditional pallet racking or shuttle systems may provide better space flexibility.
Do You Store Large Quantities Of The Same SKU?
Does Your Warehouse Experience Forklift Congestion?
Pallet Flow Racking separates loading and picking operations on opposite sides of the rack, reducing forklift traffic conflicts and improving warehouse workflow efficiency.This design is especially beneficial for warehouses that experience:
- Heavy inbound and outbound operations simultaneously
- Congested forklift traffic during peak hours
- Slow picking efficiency caused by aisle interference
- High labor intensity in material handling
By improving pallet flow and traffic organization, warehouses can achieve faster picking operations and smoother inventory movement.
High-density pallet flow storage requires adequate lane depth to maximize storage efficiency.Recommended warehouse conditions:
- Warehouse clearance height above 4.5 meters
- Storage lane depth for at least 5–8 pallets
- Stable and level warehouse flooring
- Sufficient floor load-bearing capacity
Shallow storage lanes may reduce the economic advantage of deep lane storage systems, while excessively long lanes may increase pallet pressure at the discharge end.
Does Your Warehouse Have Sufficient Space Depth?
Are Your Pallets Standardized And In Good Condition?
This is one of the most important requirements for smooth pallet flow operation. The system performs best with:
- Uniform pallet dimensions
- Flat-bottom plastic or reinforced wooden pallets
- Good pallet structural integrity
- Consistent pallet quality
Damaged pallets or pallets with uneven bottom structures can increase the risk of pallet jamming, unstable sliding, or system blockage inside gravity flow lanes.
Although pallet flow racking requires a higher initial investment than conventional pallet racking, it delivers long-term benefits through:
- Higher storage density
- Faster inventory turnover
- Reduced forklift travel
- Lower labor costs
- Improved warehouse throughput
- Better FIFO inventory control
For warehouses with high turnover inventory and continuous pallet flow operations, the return on investment is often achieved within 2–3 years.
Is High-Density Storage Worth The Investment For Your Business?
Why Choose HUADE as Your Pallet Flow Rack Partner?
With over 10 years of experience in warehouse racking projects, HUADE combines customized system design, in-house testing, and quality assurance to deliver reliable Pallet Flow Rack solutions tailored to your pallets, products, and warehouse workflow.
Frequently Asked Questions
A gravity flow rack is a Pallet Flow Rack system that uses inclined roller lanes to move pallets automatically under gravity, achieving FIFO (First-In, First-Out) storage.
Pallets are loaded from the high end and move down the lane using gravity. The first pallet is always picked first, ensuring strict FIFO inventory rotation.
Pallet Flow Rack systems improve warehouse space utilization, increase storage density, reduce forklift travel, and ensure efficient FIFO pallet flow for fast-moving inventory.
Yes. Pallet Flow Rack, Gravity Flow Rack, and Gravity Racking System refer to the same FIFO pallet storage system.
Flat-bottom, high-quality wooden or plastic pallets are recommended. Damaged or uneven pallets may affect smooth gravity flow operation.
A well-designed gravity flow racking system can last over 10 years under normal warehouse operating conditions.
It is widely used in food manufacturing, beverage warehouses, pharmaceutical storage, cold storage, and logistics distribution centers requiring FIFO inventory management.
Yes. Pallet Flow Rack systems can be integrated with WMS/WCS, stacker cranes, and conveyor systems for semi or fully automated warehouse operations.
FIFO ensures older inventory is used first, reducing product expiration and improving inventory turnover efficiency.
It is ideal if your warehouse handles high-turnover goods, large batch quantities per SKU, and requires strict FIFO inventory management.
