What is a High Bay Warehouse Racking System?

High bay warehouse racking systems are designed for high-rise storage facilities where maximizing vertical space is critical. By increasing rack height—often exceeding 12 meters and reaching up to 40 meters—these systems significantly improve storage capacity and warehouse space utilization.

With the rapid growth of global logistics and rising warehouse costs, high bay racking systems integrated with automated equipment such as stacker cranes, ASRS (automated storage and retrieval systems), and shuttle systems have become a standard solution for modern smart warehouses.

HUADE provides high bay warehouse racking solutions specifically engineered for automated environments, improving storage efficiency, expanding product handling capabilities, and supporting large-scale warehouse operations.

A high bay warehouse racking system is more than just tall storage racks. It combines structural steel, material handling equipment, automation, and warehouse management software into one integrated solution. Together, these components maximize storage density, improve inventory accuracy, and enable efficient pallet handling in modern distribution centers and manufacturing warehouses.

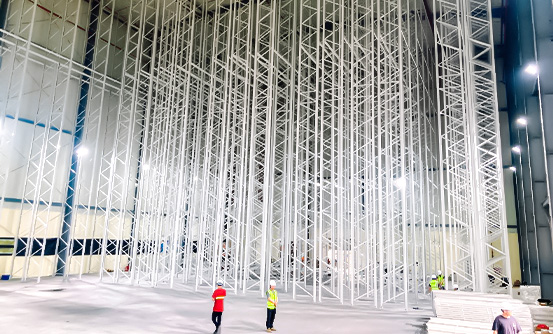

High Bay Racking Structure

The high bay racking is the structural foundation of the system, designed to safely store palletized goods at heights typically exceeding 12 meters. Manufactured from high-strength steel, the racking provides excellent load capacity, seismic stability, and long service life while maximizing vertical warehouse space. Main components include:

Upright frames
Load beams
Horizontal and diagonal bracing
Base plates and anchors
Safety accessories

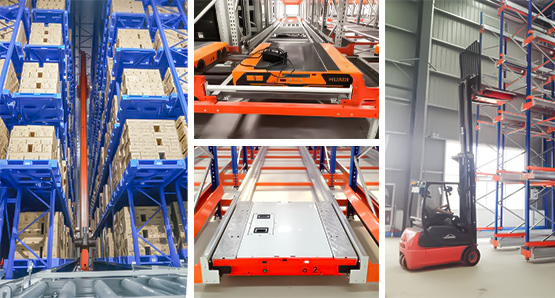

Storage & Retrieval Equipment

Material handling equipment enables fast and accurate pallet storage and retrieval throughout the high bay warehouse storage system. Depending on the project, equipment may include:

AS/RS stacker cranes
Four-way shuttle systems
Radio shuttles
Automated forklifts (AGVs)

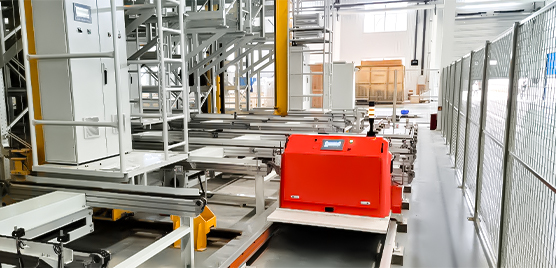

Conveyor & Material Transfer System

The conveyor system connects receiving, storage, picking, and shipping areas, ensuring continuous pallet flow throughout the warehouse. Typical equipment includes:

Roller conveyors
Chain conveyors
Vertical lifts
Transfer cars
Shuttle transfer systems

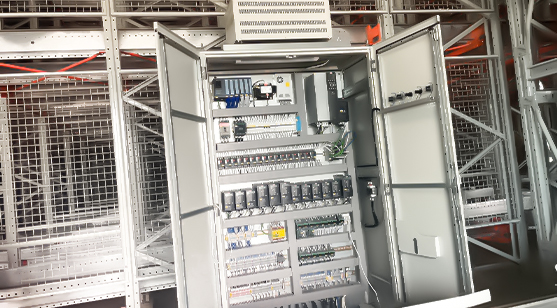

Automation Control System

The automation control system serves as the operational control layer for the entire high rise warehouse racking solution. The control system coordinates every movement of cranes, conveyors, and shuttles to ensure safe, stable, and highly accurate warehouse operations. It typically consists of:

PLC controllers
Variable frequency drives (VFD)
Positioning sensors
Safety protection devices
Electrical control cabinets

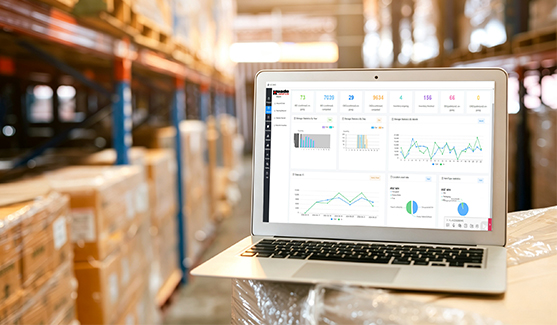

Warehouse Management Software

Warehouse software provides intelligent inventory management and equipment coordination for the industrial high bay racking system. By synchronizing information flow with material flow, the software improves inventory accuracy, increases operational visibility, and enables fully digital warehouse management. The software platform commonly includes:

Warehouse Management System (WMS)
Warehouse Control System (WCS)
Real-time inventory monitoring
Order scheduling
ERP integration

High bay racking systems fully utilize vertical warehouse space, dramatically increasing storage capacity per square meter. Compared to traditional floor stacking, these systems enable high-density storage while reducing land and rental costs.

Integrated with automated handling equipment, high bay systems allow continuous operation across multiple aisles. Goods can be stored and retrieved efficiently without sequence restrictions, significantly improving throughput.

Each rack level can support heavy loads (up to 5000 kg), with strong impact resistance. Systems can be customized in height and configuration to adapt to different pallet sizes and warehouse layouts.

HUADE high bay warehouse racking systems are manufactured from high-quality steel and undergo precision processing and strict quality control before installation. During the design phase, we work closely with clients to assess local climate and seismic conditions, ensuring each system delivers long-term structural safety and reliability in demanding warehouse environments.

By adopting automated storage and retrieval processes, businesses can reduce labor costs, improve efficiency, and lower overall warehouse operating expenses.

In a high bay automated warehouse, the WMS controls and coordinates every operation—from product movement to equipment performance. HUADE’s WMS is designed to be flexible and scalable, helping you manage inventory in real time while keeping your warehouse running efficiently and safely.

High bay systems can be adapted for manual, semi-automated, or fully automated operations, supporting a wide range of products, weights, and industry applications.

High Bay Warehouse Racking Storage Configurations

A high bay warehouse racking system can be configured with different storage depths to balance storage density, accessibility, and operational efficiency. The right configuration depends on your inventory turnover, SKU variety, and warehouse throughput requirements.

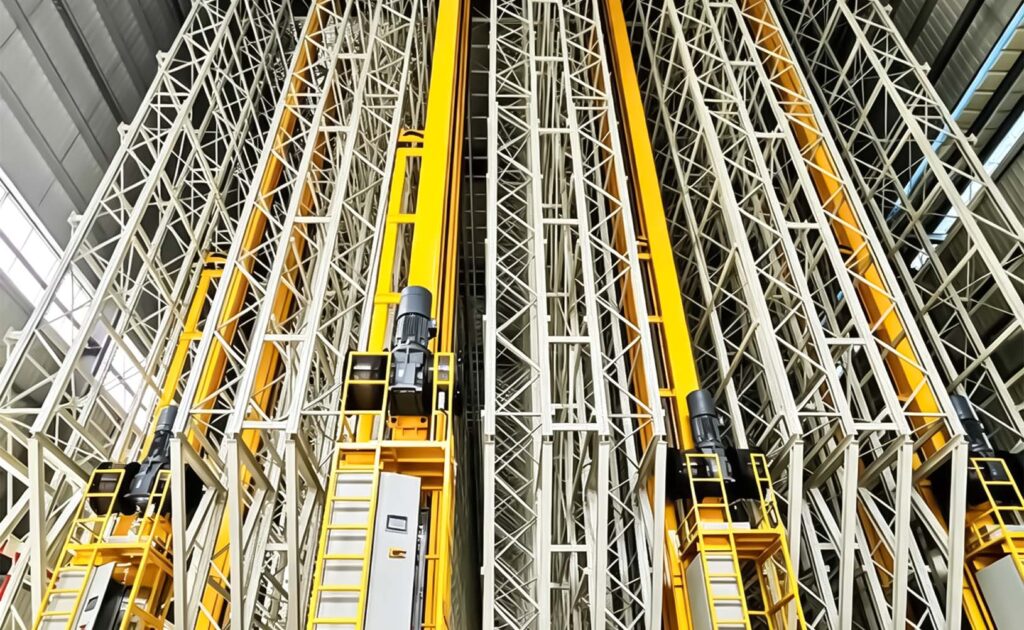

Single-Deep High Bay Racking

Single-deep storage features one row of pallet positions on each side of the aisle, allowing every pallet to be accessed directly without relocating other loads.

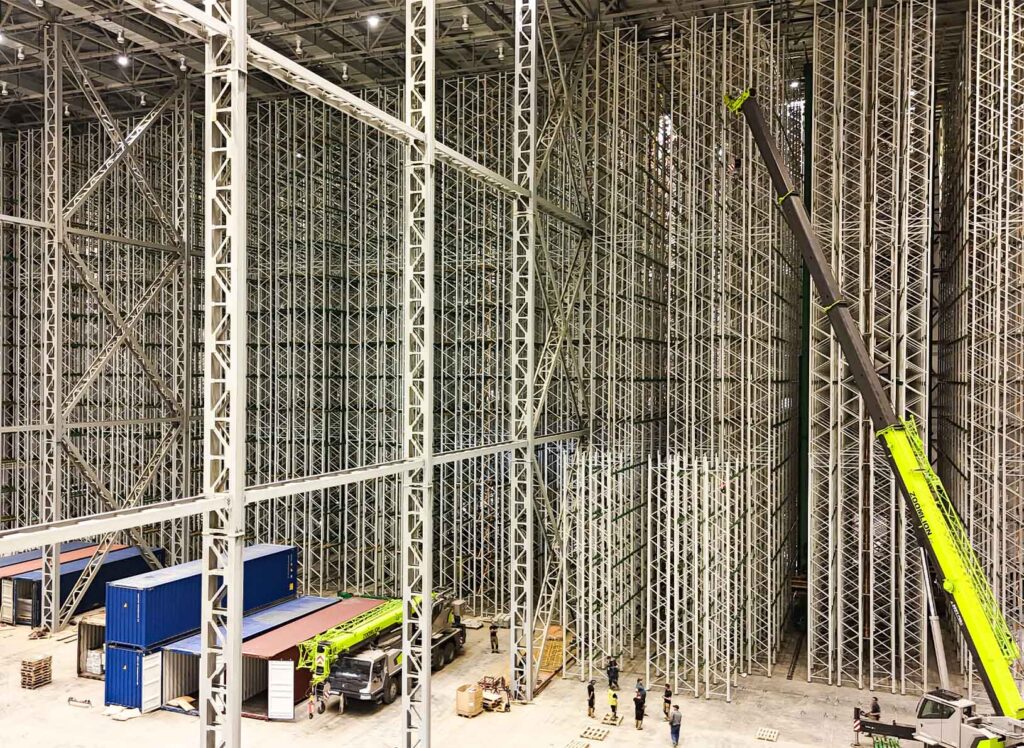

Double-Deep High Bay Racking

A double-deep high bay racking system stores two pallets in depth on each side of the aisle, significantly increasing the number of pallet locations while reducing aisle space.

The front pallet must be removed before accessing the rear pallet, making it suitable for warehouses with larger inventory volumes and lower SKU diversity.

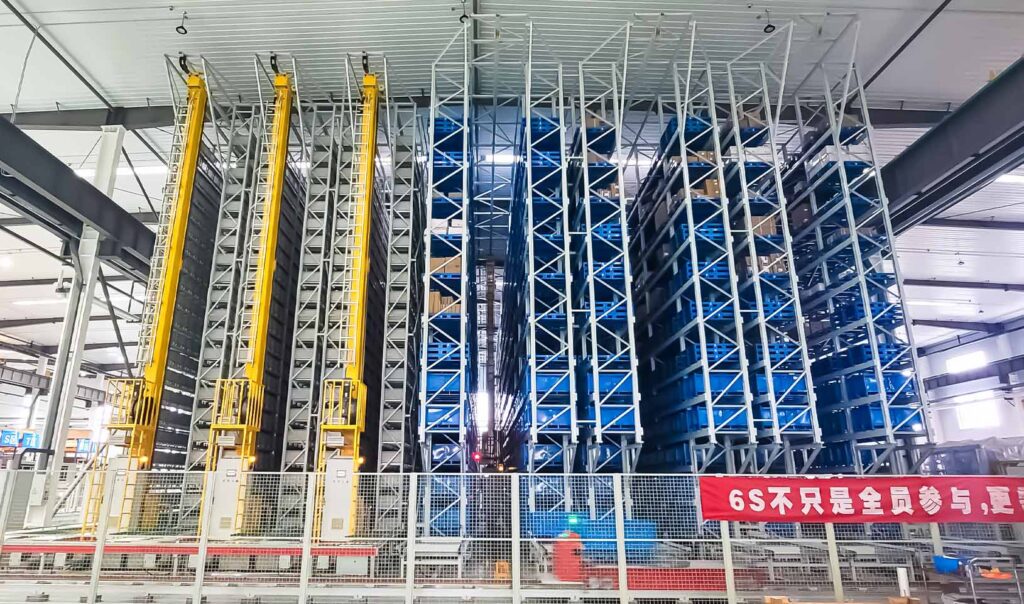

Single & Double-Deep Combination

This hybrid configuration combines single-deep storage on one side of the aisle and double-deep storage on the other, providing an excellent balance between accessibility and storage density.

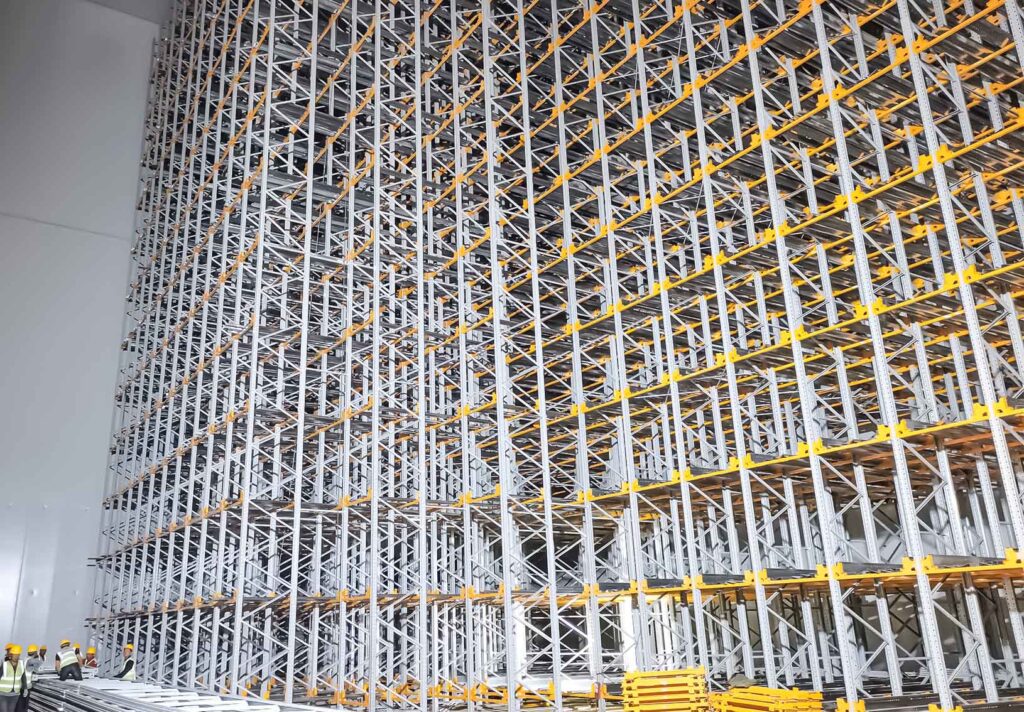

Multi-Deep High Bay Warehouse Storage System

A multi-deep high bay warehouse storage system stores multiple pallets within each storage lane, delivering the highest storage density of all configurations.

This solution is typically integrated with pallet shuttle or satellite shuttle technology, allowing pallets to move automatically within the lane.

Not Sure Which Configuration Fits?

Compare storage density, accessibility, and throughput to choose the right high bay racking system.

Get a Custom Solution

Our engineers will recommend the best storage configuration based on your warehouse layout, inventory, and automation goals.

Choose the Right High Bay Warehouse Racking Type

Find the right high bay warehouse racking solution based on your storage capacity, access requirements, and automation goals.

High Bay Warehouse Racking Types

Pallet Racking

Pallet racking is the most widely used high bay storage solution. With simple structure, strong load capacity, and 100% pallet accessibility, it is ideal for warehouses with multiple SKUs and frequent picking requirements.

Drive-In Racking

Drive-in racking eliminates multiple aisles by allowing forklifts to enter the rack structure directly. It maximizes storage density and is suitable for storing large quantities of the same products.

VNA Racking

VNA (Very Narrow Aisle) racking reduces aisle width while maintaining direct pallet access. Combined with specialized VNA forklifts, it increases storage capacity without expanding the warehouse footprint.

Shuttle Racking

Shuttle racking uses pallet shuttle technology to automatically move pallets inside storage lanes. It combines high-density storage with improved safety and operational efficiency.

AS/RS High Bay Warehouse

AS/RS high bay warehouses combine high-rise racking with intelligent automation to maximize storage density and pallet handling efficiency.

Warehouse automation layout design for a customized storage solution

Find Your Ideal Solution

Whether you need flexible storage or full automation, HUADE delivers customized high bay warehouse racking solutions.

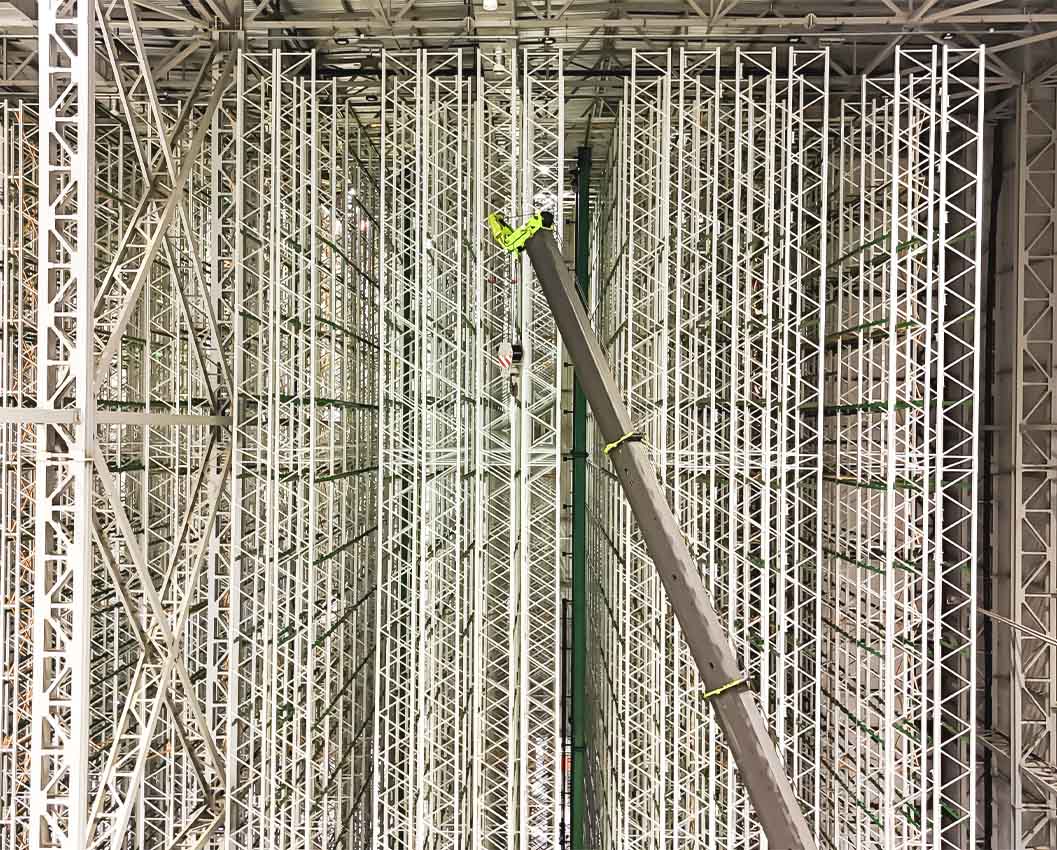

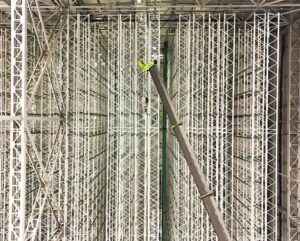

Featured Project: Russia Beer High Bay Warehouse

See how HUADE Logistics delivered a fully automated high bay warehouse racking system for one of Russia’s leading beer manufacturers. The project combines high-rise AS/RS technology, stacker cranes, and RGV conveyors to maximize storage capacity and pallet handling efficiency.

Project Benefits

36,000 high-density pallet locations
34 m high-rise automated warehouse
Automated pallet storage and retrieval
High-speed stacker crane operation
Continuous pallet transfer with RGV system
Improved warehouse efficiency and inventory accuracy

Item	Specification	Item	Specification
Industry	Beer Manufacturing	Location	Russia
Storage Capacity	36,000 Pallet Locations	System Height	34 m
Storage System	AS/RS High Bay Warehouse	Stacker Cranes	10 Units
Pallet Size	800 × 1200 mm	Max. Pallet Weight	850 kg
Crane Throughput	390 Pallets/hr	RGV Throughput	315 Pallets/hr

Why Choose HUADE as Your ASRS High Bay Racking Partner?

HUADE Logistics provides complete ASRS high bay warehouse solutions, combining advanced automation technology, reliable racking structures, and professional project services to help businesses build efficient and intelligent warehouses.

Complete ASRS Integration Capability

HUADE Logistics provides turnkey ASRS solutions integrating high bay racking, stacker cranes, RGVs, conveyors, dimension measurement systems, and WMS/WCS software. All key equipment is designed and manufactured in-house to ensure seamless system integration and stable operation.
Strong & Standardized Racking Structure

Our high bay warehouse racking systems use high-quality Q235B steel and comply with international standards such as GB, JB/T, FEM, and EN. The racks can be customized for seismic requirements and high-humidity environments with protective powder coating, ensuring long-term structural stability.
Intelligent Warehouse Management System

With independently developed WMS and WCS software, HUADE Logistics enables real-time inventory visibility, automated task scheduling, data reporting, and seamless ERP integration for smarter warehouse management.
Proven Global ASRS Project Experience

HUADE Logistics has delivered numerous automated warehouse projects worldwide, including ASRS high bay warehouses for beer manufacturing and industrial production facilities. We provide complete support from system design and manufacturing to installation guidance and multilingual after-sales service.
Factory-Direct Manufacturing Advantage

With our own manufacturing facilities in China, HUADE Logistics controls the entire production process, providing reliable quality, flexible customization, and competitive pricing for global customers.
Full Lifecycle Service & Support

From free warehouse layout design and 3D simulation to manufacturing, commissioning, operator training, remote technical support, and spare parts supply, HUADE Logistics supports your warehouse throughout its entire lifecycle.
